AiM Track Day Kit SmartyCam3 Sport + Solo2 DL

Elevate your track day experience with the ultimate racing companion: the AiM SmartyCam3 Sport & Solo2 DL with Double Bracket Track Day Kit. Engineered for performance, precision, and convenience, this innovative system combines the cutting-edge video technology of the SmartyCam3 Sport and the rich data-logging of the Solo2 DL into a double-bracket setup, ensuring you capture every heart-pounding moment on the track.

The SmartyCam3 Sport boasts unparalleled video quality, capturing crystal-clear footage of your racing endeavors in stunning HD. With its advanced data overlay capabilities, you can analyze crucial metrics such as speed, lap times, G-forces, and more, providing invaluable insights to help you fine-tune your driving technique and shave seconds off your lap times. Whether you're a seasoned racer or just starting out, the SmartyCam3 Sport Sport empowers you to take your performance to the next level.

Paired with the Solo2 DL, a powerful GPS lap timer and data logger, this bundle offers comprehensive data analysis to optimize your racing performance. With its intuitive interface and customizable display options, the Solo2 DL provides real-time feedback on your driving metrics, allowing you to make instant adjustments and maximize your track day experience. Plus, with the included double bracket trackday kit, you can easily mount both devices in the optimal position for capturing every angle of the action.

Don't settle for anything less than the best when it comes to recording and analyzing your track day performance. Invest in the AiM SmartyCam3 Sport & Solo2 DL with Double Bracket Track Day Kit and unleash your full potential. Whether you're chasing podium finishes or simply seeking to improve your skills, this top-of-the-line system is the ultimate tool for any serious racer.

Gear up, hit the track, and let the SmartyCam3 Sport & Solo2 DL elevate your racing experience.

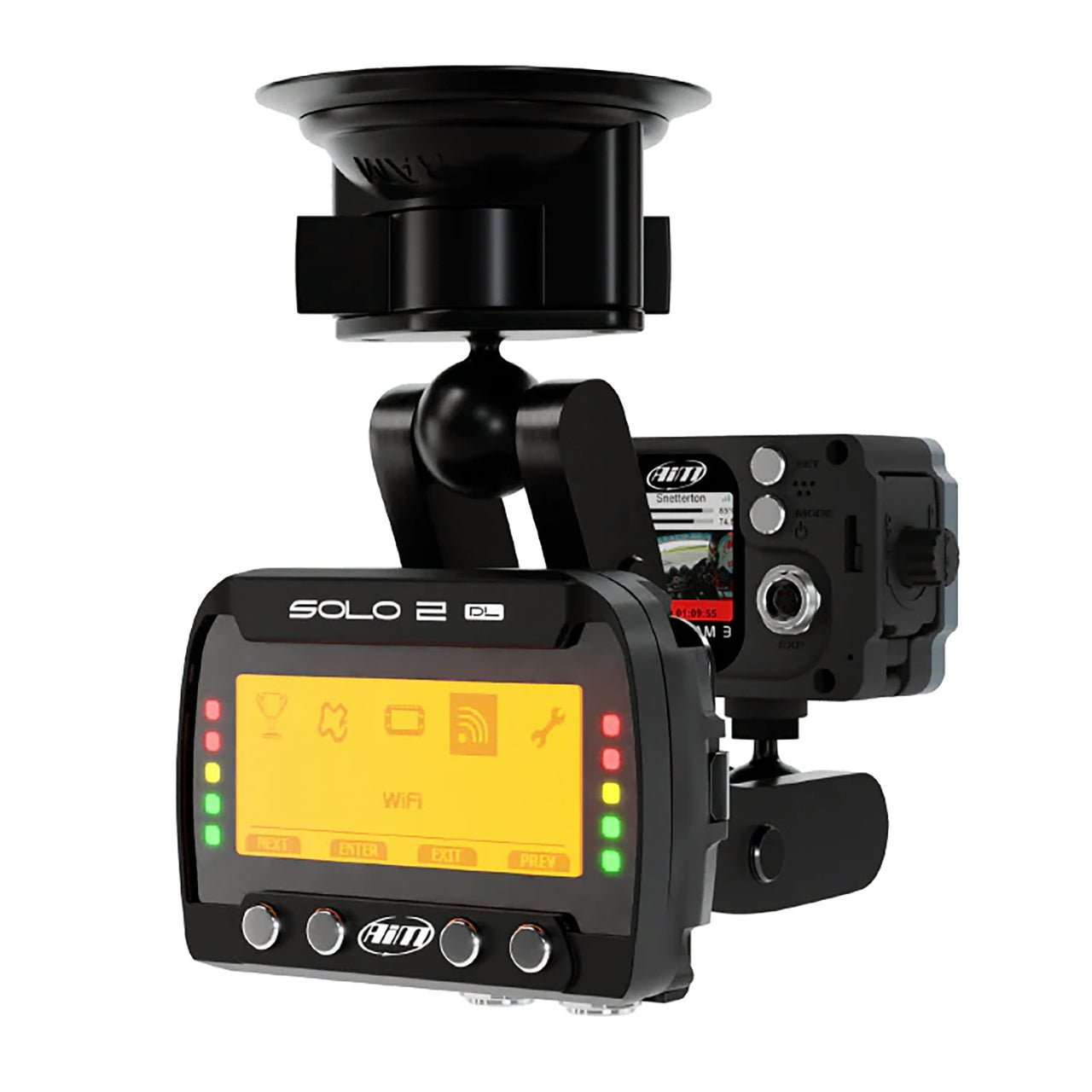

AiM Track Day Kit Includes:

• AiM Solo2 DL w/ OBDII connector
• AiM SmartyCam3 Sport, 67º FOV or 84º FOV

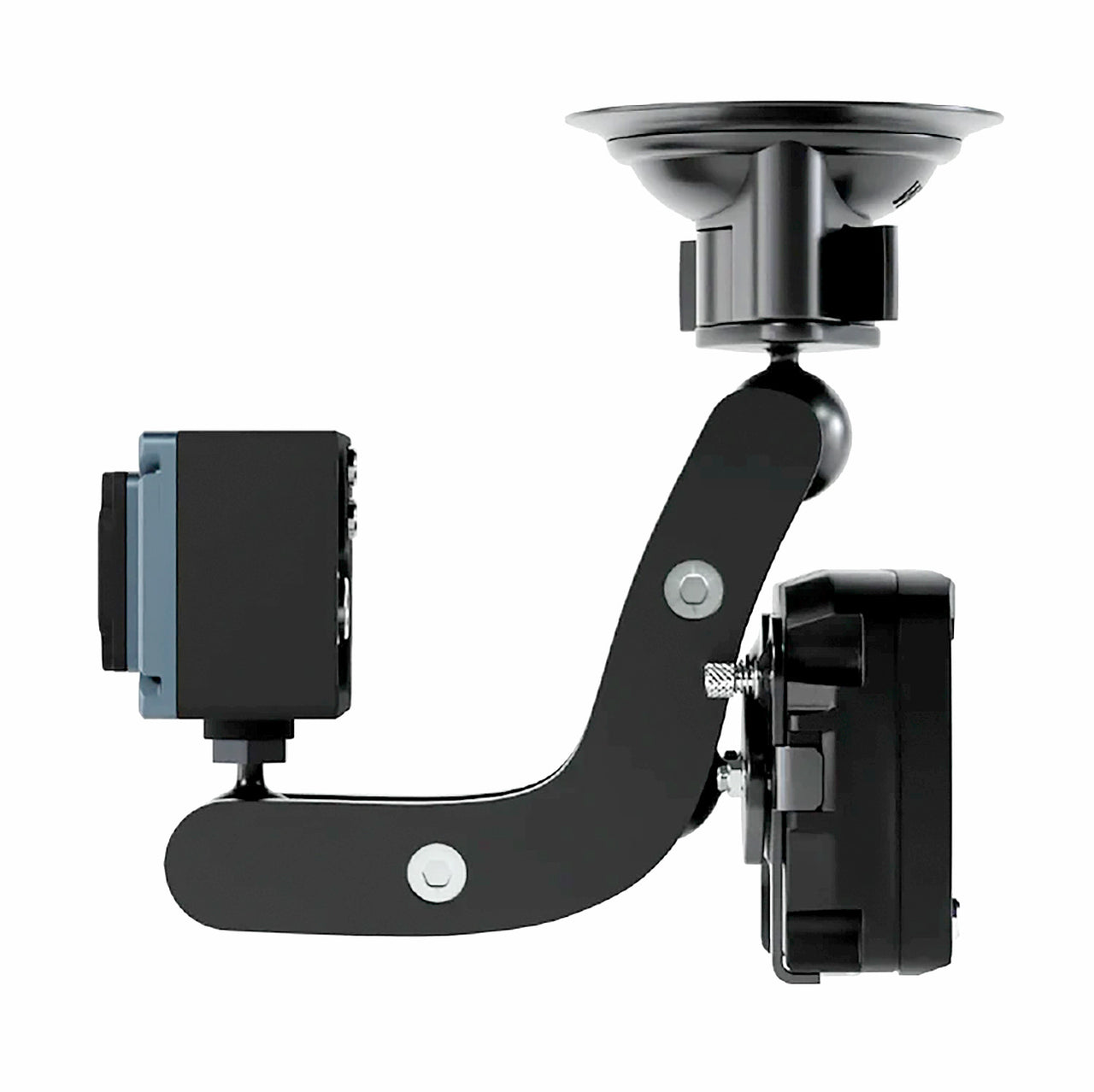

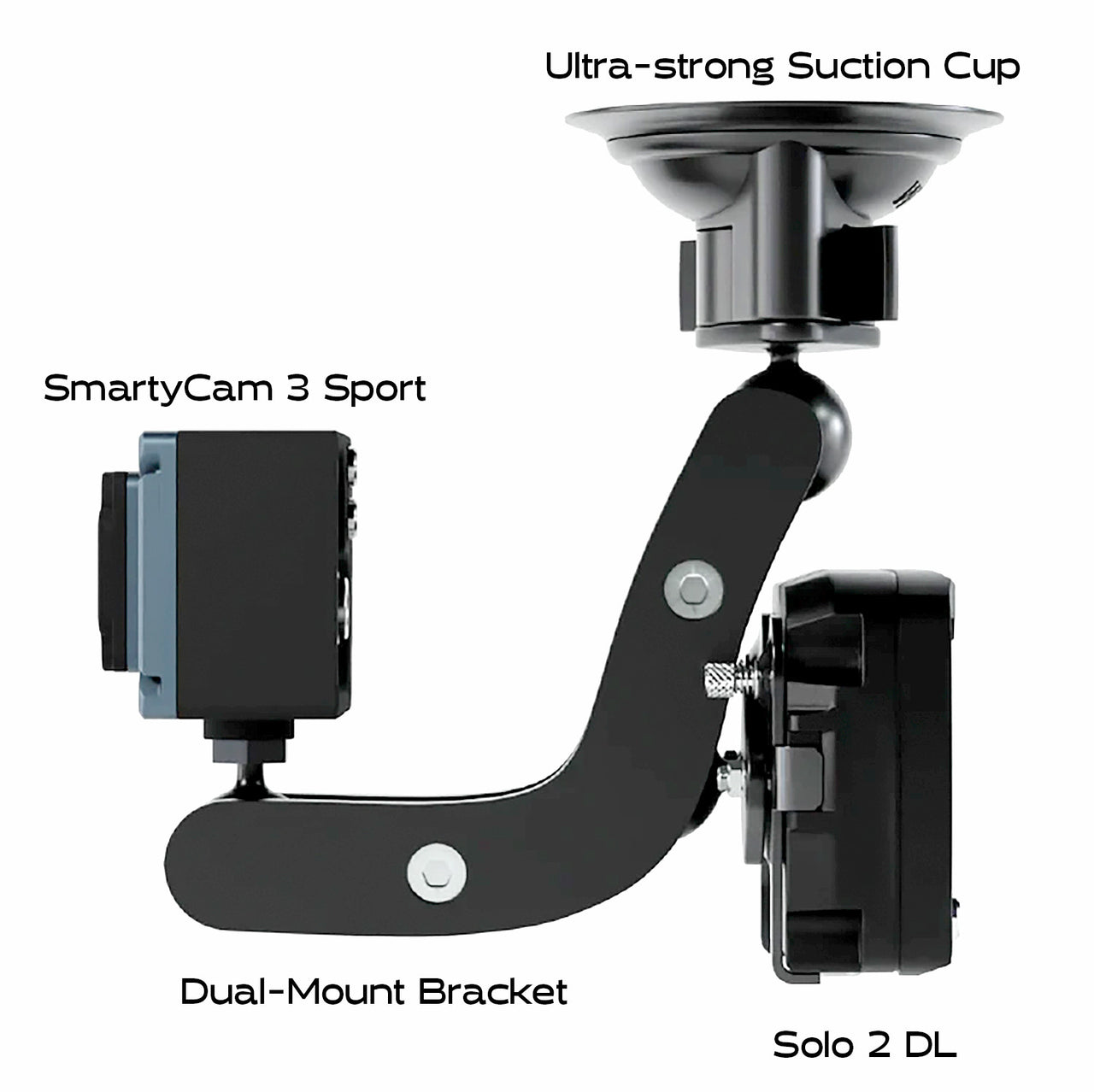

• Suction cup mount to hold both devices

• All necessary cables

AiM Solo2 DL w/ OBD2

More Than 4,000 World Tracks Fully Loaded

The AiM Solo2 DL has access to over 4,000 race tracks from all over the world. As soon as you turn it on at the track, your Solo2 DL identifies your exact position, recognizes the official track starting-line coordinates, and prepares to auto-record your lap times.

SmartyCam Smart Integration and Control

Your Solo2 DL will seamlessly control the connected SmartyCam3 Sport with no need for driver inputs. Your Solo2 DL does all the work! This integration also makes it simple to overlay your engine and performance data directly into your on-track videos.

Race Mode Selection

The amazing AiM Solo2 DL can manage four different types of racing: closed-circuit races (e.g., road race, circle track); point-to-point races like hill climbs or autocross; performance tests such as 0-60mph, 0-100-0mph; and a user-customized area or course.

WiFi Download

Download via WiFi to any WiFi-enabled device. There are no cables to lose or forget at home.

On-Screen Data Recall

The AiM Solo2 DL lets you do a post-session review right out of the car on the built-in screen. It's perfect for driving coaches to do quick reviews with students.

AiM Solo2 DL Details

• Manufacturer: AiM Sports
• Manufacturer part no: X47SOLO2DL01U0

• Display resolution: 128 x 64 pixels
• Display pages: 8 freely configurable
• Backlight: 7 RGB colors
• Shift lights/alarms: 10 user-configurable RGB LEDs
• Integrated track database: Yes
• Inertial platform: internal three-axis 5G accelerometer + three-axis gyro + three-axis magnetometer
• WiFi connection: Yes
• GPS sampling rate: 10Hz
• ECU connection: OBDII cable
• Connectors: Binder 712 5-pin (1), Binder 712 8-pin (1)
• Internal memory: 4 GB
• Battery type: Lithium rechargeable

• Dimensions: 98 x 74 x 30mm (3.9 x 2.9 x 1.2 in)
• Weight: 240 g (8.5 oz) w/ battery
• Waterproof: IP67

AiM SmartyCam3 Sport Changes Racing Video

SmartyCam3 Sport has been designed to minimize the problem of image distortion (the dreaded wave effect) with its global shutter CMOS sensor. The camera shutter captures the entire image all at once, resulting in images that are not affected by the vibration of high-speed driving on track.

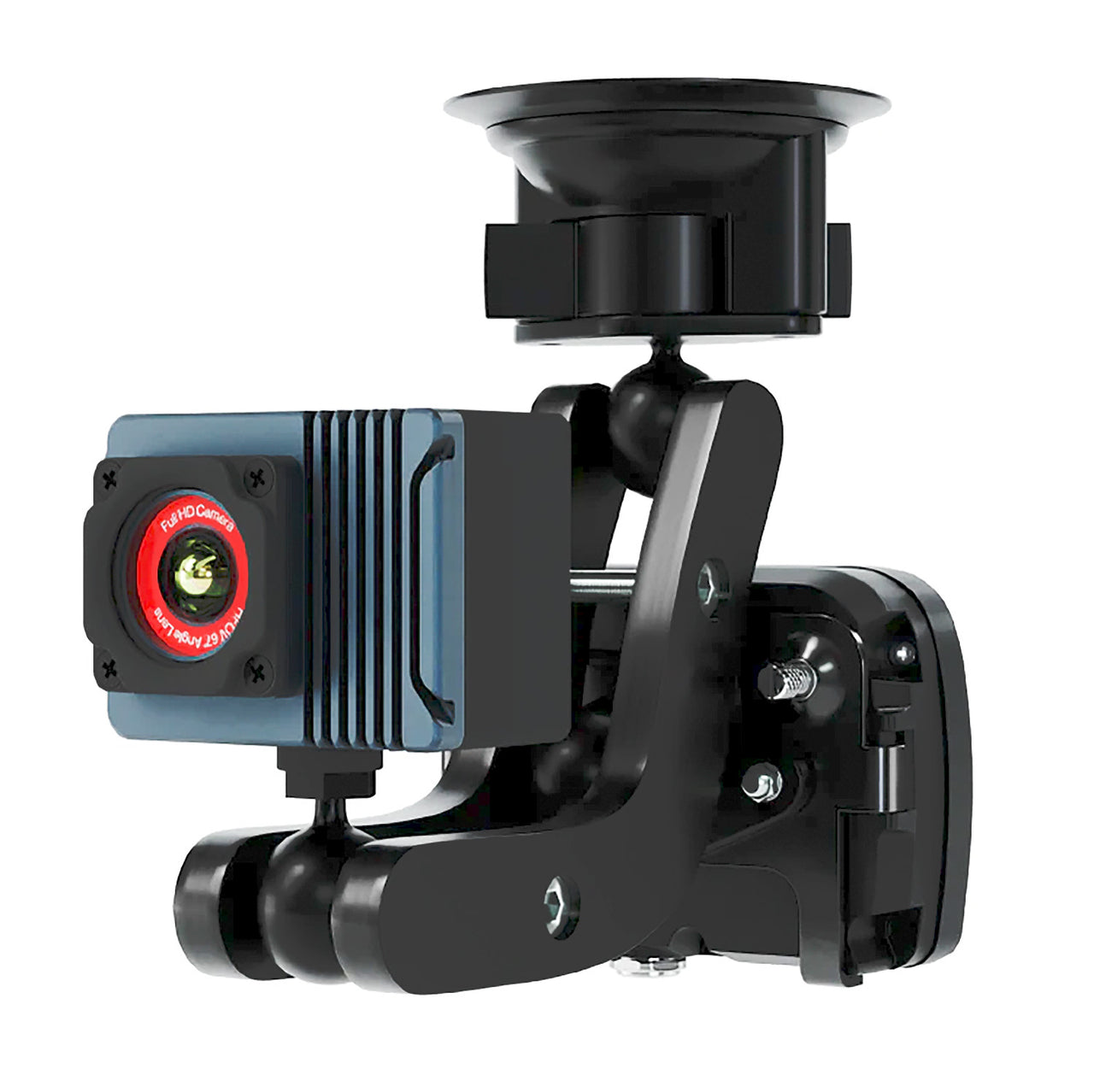

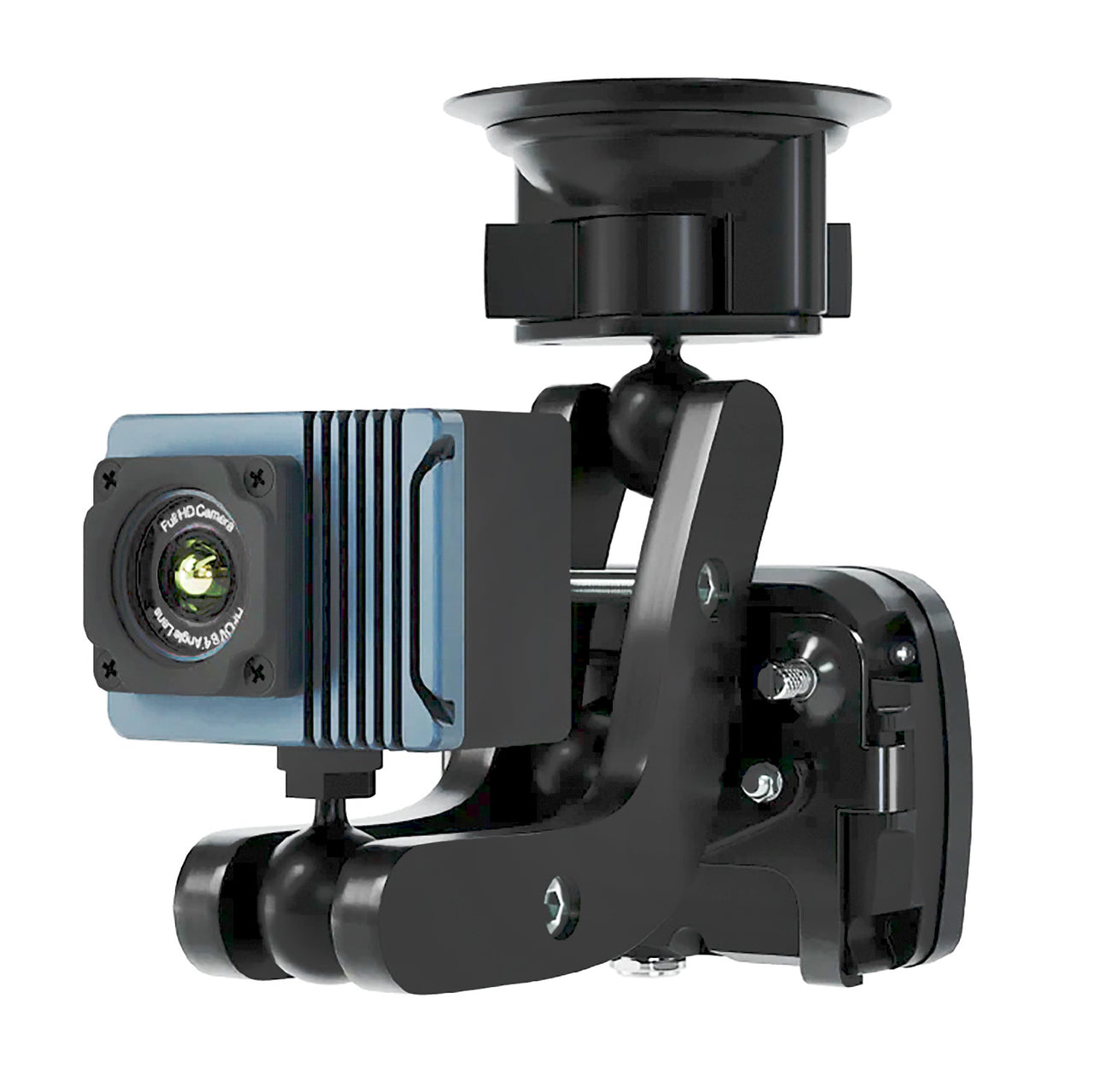

The SmartyCam3 Sport Sport has a choice of low-distortion lenses with a fields-of-view of either 67º (perfect for closed-cockpit cars) or 84° (wider for open-cockpit and open-wheel cars).

AiM SmartyCam3 Sport Video Camera Details

• Manufacturer: AiM Sports
• Manufacturer part number:
• 67º FOV: XS3S674U
• 84º FOV: XS3S844U
• Cable length: 4m (13.1 ft)
• Cable connector: Binder 712 5-pin male

• Camera connector: Binder 712 5-pin female (1)
• Audio: internal microphone

The AiM SmartyCam3 Sport automatically overlays videos with the data you need: speed, RPM, lap number, gear shifts, and much more. Simply choose the data and graphical layout you prefer from AiM's huge selection of overlay styles.

Even More Data From The AiM Solo2 DL

The SmartyCam3 Sport can overlay ECU data from your AiM Solo2 DL such as RPM, throttle position, engaged gear, acceleration, temperatures and pressures, and a bevy of other data from any added sensors you have installed. All the info you choose is overlayed on videos at every point of the track.

The AiM SmartyCam3 Sport integrates seamlessly with RaceStudio 3, AiM's powerful software that lets you configure and edit all the details of your race videos. RaceStudio 3 makes it easy to maximize the fun and learning you get from reviewing your race.

You can customize your videos in virtually unlimited ways. Add your team or shop logo, add graphical objects from a long list of pre-built sets, even mix-and-match objects from different sets. Your videos will be truly be yours down to the last detail!

Post-Race Video Analysis Helps You Get Faster

Download the video of a whole session to your PC and, with a simple click, split it into individual videos of each lap. RaceStudio 3 lets you watch two laps side-by-side to see where you're faster or slower. In fact, you can simultaneously watch any two SmartyCam lap videos (recorded on the same track). So you can compare your best laps from different days, with different drivers, and so on!

A Motorsports Camera Is Not Just A Sporty Camera

A video camera and lens specifically designed for motorsports must be robust, maintaining excellent picture stability, resolution and brightness despite the high speeds, vibration and noise inherent in racing.

Above all, a lens designed for motorsports must avoid the image distortion typical of lenses used by generic action-cameras where objects at just 10 meters distance can look far away. This makes it nearly impossible to accurately review race videos.

The AiM SmartyCam3 Sport features a telecentric lens with six elements to reduce distortion to a minimum and will withstand race track vibration and abuse for years. AiM offers lenses with different fields-of-view to give your videos tailor-made framing in all kinds of vehicles.
