Data Cables

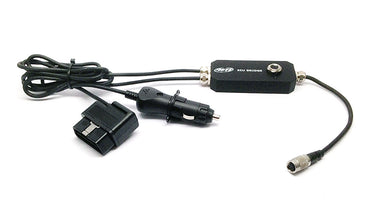

AiM ECU Bridge with OBDII Connector Connecting to your vehicle's ECU gives your AiM dash/data-logger access to data collected by your ECU (RPM, vehicle speed, coolant temperature, throttle position, and much more). The AiM ECU Bridge works with all AiM units with a male 5-pin Binder 712 connector, including the MXG, MXS, MSM, MXL, MXL Pro Dash Display, G-Dash Display, and Formula Car Wheel Display. SmartyCam connection requires an AiM 7-pin to 5-pin CAN cable included with the SmartyCam. AiM ECU BRIDGE WITH OBDII CONNECTOR DETAILS Manufacturer: AiM Sports Manufacturer part no: X90BGCK12MA Connector 1: OBDII Connector 2: Binder 712 5-pin, male Power cable: car lighter plug for 12VDC connection USB port for PC communication The AiM ECU Bridge features a USB port for easy connection to your computer for set-up. The AiM ECU Bridge has to be configured using RaceStudio 3 software to communicate with the different dashes, cameras, etc., on one side and the ECU on the other side. TYPICAL ECU DATA FROM OBDII PORT RPM Vehicle speed Engine coolant temperature Throttle position sensor Intake air temperature Manifold air pressure Manifold air flow Fuel level Pedal position sensor

AiM ECU Bridge with RS232/CAN Wiring Connecting to your vehicle's ECU through the CAN bus allows your AiM dash/data-logger to tap into a very wide array of data collected by your ECU. The AiM ECU Bridge with RS232/CAN Wiring works with the following AiM displays with a male Binder 712 5-pin CAN connector: MXG MXS MXT MXP MXm SW4 Steering Wheel Connecting a SmartyCam requires the AiM 7-pin to 5-pin CAN cable included with the SmartyCam. The ECU Bridge also features a special port for a USB cable (included) for easy connection to your computer for set-up. ECU Bridge has a CAN/RS232 connection for direct connection to many aftermarket ECUs. AiM has developed hundreds of different protocols to make compatibility with virtually any ECU possible, stock or aftermarket. The AiM ECU Bridge has to be properly configured with RaceStudio 3 software to communicate with the different dashes, cameras. etc., on one side and your ECU on the other side.

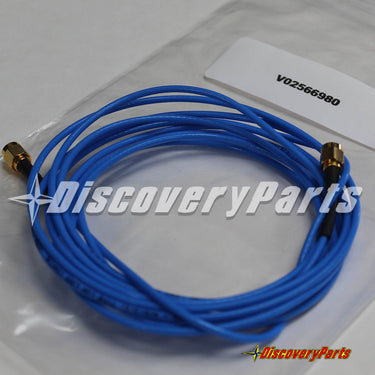

AiM SmartyCam GP HD 2.2 Link Serial Cable - 2 Meter AiM AiM SmartyCam GP HD 2.2 Replacement Serial Cable V02566980 goes from the AiM SmartyCam Processor to the lipstick camera. Working with both 67 and 84 camera lens, the AiM V02566980 replacement cable in 2 meter length easily threads on to the camera SMA connection (small thread-on collar with single center conductor) and the processor SMA connection. AiM SmartyCam GP HD 2.2 Link Serial Cable - 2 Meter Details: Manufacturer: AiM Manufacturer part number: V02566980 Fits AiM SmartyCam GP HD 2.2: Yes Fits AiM SmartyCam GP HD 2.1: No Length: 2 Meters End 1: SMA thread on End 2: SMA Thread on Why would you need this cable? The most common issue is when the wire ties used to secure the cable to the cage are over-tightened to where the outer shielding is crushed into the center conductor. Also we have seen extra cable looped in a circle and wire tied around itself to "clean up the area". This cable requires a minimum 8D bend radius. If you are unfamiliar with Bend Radius, Wikipedia saves us: Bend radius, which is measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet, cable or hose without kinking it, damaging it, or shortening its life. The smaller the bend radius, the greater is the material flexibility (as the radius of curvature decreases, the curvature increases).

AiM OBD-2 to MXL2, MXS & MXG Dash Cable Special AiM cable for connecting an AiM dash like the AiM MXS, MXG, MXL Pro, and Evo 4. This is a special cable that takes your OBD-2 (K-Line) car connector and connects to the next generation AiM dashes via the Deutsch DTM Connector.If your harness does not have this gray Deutsch DTM connector, we can have your harness modified. You will need to send us your harness for this custom work (for a fee) with a 7-10 day turn around time. AiM OBD-2 to MXL2, MXS & MXG Dash Cable Details:Manufacturer: AiMManufacturer part number: OBDIIManufacturer alternate part number: MC-285Fits OBD-2 to AiM MXSFits OBD-2 to AiM MXGFits OBD-2 to AiM MXL2Fits OBD-2 to AiM Evo 4

Stilo to IMSA Adapter Cable (Female/Female) This cable enables connection between an IMSA helmet kit and a Stilo intercom. All of our cables are built at our Mooresville location with U.S. manufactured mil-spec hardware. RaceCom cables are very strong and have been pull tested by a certified lab - our meticulous build process has been proven to outlast and outperform all others in the business.

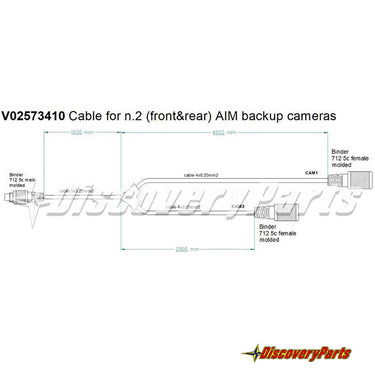

AiM Cable for Reverse or Side Mirror Cameras The AIM V02573410 Y-cable is intended specifically to connect two AiM Analog Rear Cameras to your AiM "1.2" version MX-Series dash MXS 1.2/1.3, MXP, or MXG 1.2/1.3 including Strada versions. AiM Cable for Reverse or Side Mirror Cameras Details: Manufacturer: AiM Manufacturer part number: V02566300 This long cable features two length different leads from your dash, one measuring 6 meters (19 feet 8 inches) from the dash and the other camera 4 meters (13 feet). The most common applications are using one camera as a backup camera and another as a rearview mirror or front-facing curb view camera, or for both side mirrors.

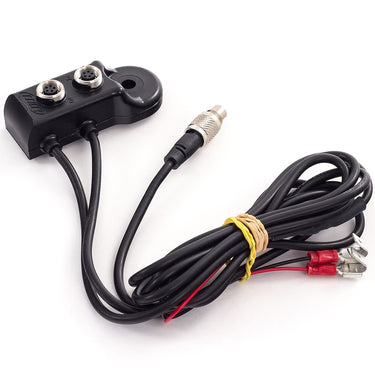

AiM 2-Port CAN Powered Data Hub for AiM MXS, MXM, MXG, MXL, EVO3, EVO4 Do you have an AiM Dash like the MXS, MSM, MXG, Pista or MXL and want to run multiple devices like SmartyCam HD's or other power usage items? Then the AIM 2 port powered CAN Data Hub is for you. If you use an ECU bridge or are powering your SmartyCam(s) from your 5 pin cable (using ECU Power), you now can have a more stable power supply to run your cameras for an extended duration. Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (Thermocouple) Hubs. Any channel can be selected for display on the dash. 15" cable. This allows you to add multiple SmartyCams to you AiM system. AiM 2-Port Powered CAN Data Hub for AiM MXG, MXS, & Pista Details: Manufacturer: AiM Manufacturer Part Number: X08HB2GK0

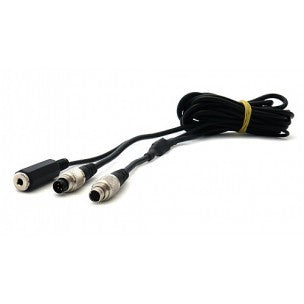

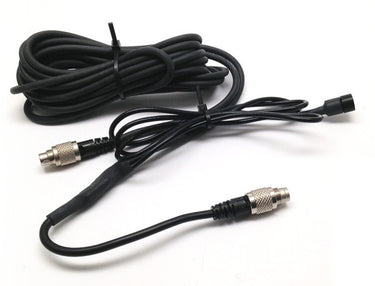

The original AiM SmartyCam (2009-2013) and new SmartyCam HD V 2 / SmartyCam HD GP all have an internal microphone for great racing sound, but it does limit your sound options. This special cable has a 3.5mm mono jack for an external microphone. The input from this jack automatically mixes with the sound from the SmartyCam internal microphone. SmartyCam Microphone Cable Fitment Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD "Rev 2" or later (2015+) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD GP "Rev 2.1" or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge AiM SmartyCam CAN Cable with Microphone Jack, 4M Details: Manufacturer: AiM Manufacturer part number: V02566300 Alternate part number: MC-552 Dash, Solo DL, Solo 2 DL End: 5 Pin Male 712 SmartyCam End: 7 Pin Male 712 Microphone jack: 3.5mm female mono Cable length: 4M (13 feet) Length from 7 pin 712 to "Y" Adapter: 50mm Length from Y adapter to 5 pin 712" 4 Meter Length from Y adapter to microphone 3.5mm female jack: 900mm The 7-pin 712-type connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures 4M (13 feet) long. 3.5mm mono microphone jack is attached to the lead. This cable is not compatible with the SmartyCam HD, which has a 5-pin plug.

AiM SmartyCam CAN Cable with In-Line External Microphone, 4M Add An External Microphone to your AiM Solo DL with SmartyCam Orig or SmartyCam HD V.2 with this AiM connection cable. This special CAN cable plugs into the CAN port on the original AiM SmartyCam (2009-2013) and the HD Version 2 to connect to your AiM data logger, SMC Bridge, etc. An external microphone is incorporated into the cable. The input from this microphone automatically mixes with the sound from the SmartyCam internal microphone for enhanced sound. Measures 4M (13 feet) long. This CAN cable has a 7-pin 712 (screw-in) connector on the camera end. It is not compatible with the SmartyCam HD (Orig Version 1), which has a 5-pin plug. SmartyCam Microphone Cable Fitment Fits Solo DL & SmartyCam Orig (Grey Unit) Fits Solo DL & SmartyCam HD Rev.2 (Black Box w/ Red Ring Around Lens) Fits Solo DL & SmartyCam HD Rev.2 Plus (Black Box w/ Black Ring Around Lens) Camera End: 7-Pin 712 Screw-in connector Can End: 5-Pin 712 Screw-in connector AiM SmartyCam CAN Cable with In-Line External Microphone, 4 Meter Details: Manufacturer: AiM Manufacturer part number: V02566240 Length- 4 Meters (13 Feet)

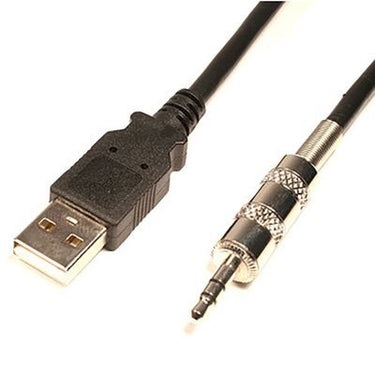

AiM MXL 3.5mm Download Cable AiM MXL Download Cable to download your data from your MXL Dash to your laptop. The AiM MXL Download Cable & CD Kit lets you easily transfer your AiM Data to your Laptop. AiM MXL 3.5mm Download Cable Details: Manufacturer: AiM Manufacturer part number: X10MXLPC01 Manufacturer alternate part number: MC-009-MXL End 1: 3.5mm male End 2: USB AiM MXL USB download cable has a male 1/8" (3.5mm) stereo plug to connect to most MXL series dashes (except those made in 2004 and those supplied in Seat Leon Cup or Formula Renault cars). Note that all MXL series dashes can also use the Memory Key Download Tool (Part No. MC-315) rather than a USB cord for easy data transfer. MXL Pista dashes also have the option to plug the MyChron3 Plus Download Cable (Part No. MC-009-Plus) into the sensor harness if the side port is blocked. Each download cable includes access to free Race Studio software download. AiM Race Studio 2 Software lets you analyze the data from your MXL Pista or Pro dash in an organized and highly professional way. Your data can be analyzed in several different styles thanks to graphs, histograms, comparisons between lap data and test data, and time comparison tables. Many calculation features are available like math channels and power and torque calculators. Race Studio 2 software is also required for setting up any MXL dash. Compatible with Windows 10, Vista, 98 SE, 2000, ME, XP, 7, and 8 and functions in several different languages: English, Italian, German, French, Spanish, Dutch, Portugese, Finnish, and Japanese. This is an excellent spares kit item as other racers borrow it and "forget" to return it. Be prepared and get faster.

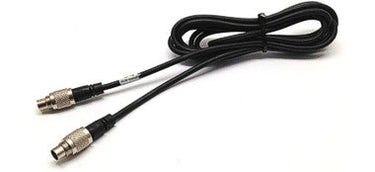

AiM 5 Pin 712 to 7 Pin 712 Cable for SmartyCam HD 2.1 to Solo DL, MXS, MXG & MXL2 - 2 Meter The AiM V02566070 CAN cables have a male 5-pin 712 (screw-in) connector and a 7-pin 712 (screw-in) connector to connect the AiM SmartyCam HD 2.1 (version 2.1 black box looking camera) to your Solo DL, MXS, MXG, MXL2 in the shorter 2 meter length. This cable also is used to connect your AiM SmartyCam HD (version 1) to your AiM logger or SMC Bridge. AiM 5 Pin 712 to 5 Pin 712 Cable Details: Manufacturer: AiM Manufacturer part number: V02566070 Alternate part number: AIM-MC-267 SmartyCam HD 2.1 to Solo DL, Mychron 5, MXS, MXP, MXG, MXL2 sync cable Included with all SmartyCam HD kits Length: 2 Meters (6ft) Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 1". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws.

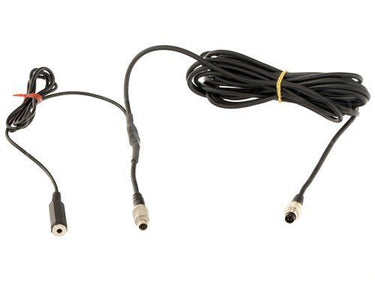

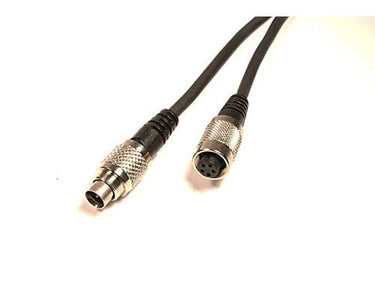

AiM Patch Cables With 3.5mm Microphone Input Connect your sensors and loggers with AiM Sports patch cables. These cables include a 3.5mm female connector for using an external microphone. Perfect for overlaying your comms with your video and/or data.

IMSA to Garmin Adapter Cable The Garmin Catalyst to IMSA Adapter Cable measures 60" and connects your Garmin Catalyst to your IMSA wired helmet. Garmin Catalyst to IMSA Adapter Cable Details: Manufacturer: Racing Radios Manufacturer part number: RADGARMIN2IMSA Alternate Manufacturer part number R AD GARMIN2IMSA End 1: Garmin 3.5mm Male End 2: IMSA 4C Female Center: Straight cord Length: 60" If your IMSA wired helmet has a 4C male connector, now you can hear your Garmin Catalyst commands through your IMSA helmet wiring kit. SKU: R AD GARMIN2IMSA

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo 2 DL AiM Solo 2 DL to OBD-II Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBD-2) plug to fit the diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo 2 DL. OBD-II is also known as K-Line This is the same cable supplied with the original AiM Solo 2 DL for OBD-II. Does not fit the original Solo DL. AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo 2 DL Details: Manufacturer: AiM Manufacturer part number: V02589040 End 1: AiM 7 Pin 712 (thread on) End 2: OBD-2 (K-Line) Fits AiM Solo: No Fits AiM Solo DL: No Fits AiM Solo 2: No Fits AiM Solo 2 DL: Yes

Garmin Catalyst to IMSA Female Adapter Cable This cable can be used to connect your Garmin Catalyst Driver Performance Optimizer to your IMSA helmet cable. Includes 3.5mm connector on one end and female IMSA connector on the other. Made in the USA from thin ROHS-compliant cable. SKU: R AD GARMIN2IMSA

SmartyCam GP HD 2.2 to AiM Dash Connection Cable AiM SmartyCam GP HD 2.2 and SmartyCam HD Version 1 (Black Box Camera) replacement connection cable to connect to your Solo DL, MXS, MXG, MXP, MXL2, AiM Data Logger or SMC Bridge. This is a connection cable that has a 712 5 pin male connector on one end and another 712 5 pin male connector on the other end. SmartyCam GP HD 2.2 to AiM Dash Connection Cable Details: Manufacturer: AiM Manufacturer part number: V02554820 Alternate part number: AIM-MC-267 SmartyCam GP HD 2.2 and HD to AiM Dash or Data Hubs Included with all SmartyCam HD kits Length: 4 Meters (12ft) End 1: 5 Pin Male 712 Thread-On Connector End 2: 5 Pin Male 712 Thread-On Connector These CAN cables have male 5-pin 712 (screw-in) connectors at each end to connect the AiM SmartyCam GP HD 2.2, SmartyCam HD (version 1 black box looking camera) to your Solo DL. This cable also is used to connect your AiM SmartyCam HD (version 1) to your AiM logger or SMC Bridge. Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 2". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws. The original SmartyCam and SmartyCam HD Rev 2 require a CAN cable with a 7-pin connector. Although the connectors are correct, this cable can NOT be used to connect the SmartyCam HD GP bullet camera to the base recording unit, the internal wiring is different. How do I make sure I have an original SmartyCam H.D. Rev 1? First, your SmartyCam does not have any type of microphone. Second there is a 5 pin connection (for this control cable) and a 4 pin connection for GPS antenna. If you have a 4 pin and 7 pin, the you have a new Rev 2.
