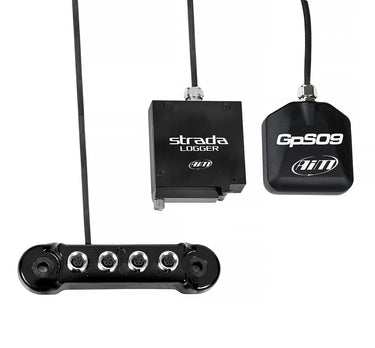

AiM Strada Logger, GPS09C Module, and Data Hub TURN ANY MX STRADA DASH INTO A FULL DATA-LOGGER Receiving and reading data while you are driving not enough anymore? Then it's time to step your game up with the brand new Strada Logger Kit! This kit includes the AiM Strada Logger, Data Hub and GPS09C GPS module. Everything you need to turn your MX-Series Strada dash into a full-blown logger, able to collect data to be analyzed in AiM's RaceStudio 3 software to help you improve your performance, understand whether there are problems with your vehicle, and much more. AiM STRADA LOGGER & GPS A small SD card reader that can be connected via CAN bus to your MXG 1.3 Strada, MXP 1.3 Strada, or MXS 1.3 Strada. It can also be connected directly to any non-Strada MX-Series data-logger for data back-up and super-fast downloads. When your session is over, plug your SD card into your PC and download data into RaceStudio 3. The Strada Logger has a front LED that shows its recording/firmware status. Accepts SD cards up to 32GB. AiM GPS09C MODULE More precise than most existing GPS systems, the GPS09C was designed to add the Global Navigation Satellite (Glonass) signal. With an average of twenty satellites working in conjunction, GPS09C guarantees precision and a reliability simply not available from other GPS systems. A 25 Hz sample rate gives the GPS09C pinpoint accuracy down to less than 1m. AiM CAN DATA HUB The AiM Data Hub is a CAN connection multiplier that serves as an interface between an AiM data-logger and various peripheral equipment. Just connect the Strada Kit to your AiM MX-Series device and data will be saved on any SD card up to 32GB (not included), as well as being stored in the logger memory. No configuration is needed. The SD card can be removed and replaced even during pit stops with the engine still on, making it extremely fast to get data during endurance races or long tests when time in the paddock is limited. Reliable and easy to install, the Strada Kit is just what you need to go from an above average driver to a real race one!

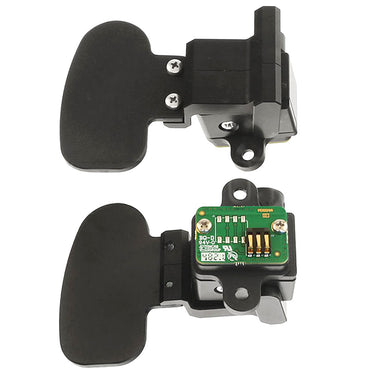

Clutch Shifter Paddles for the AiM SW4 Steering Wheel Add clutch-actuating paddles to your AiM SW4 racing steering wheel with these robust paddles. Simple bolt-on couldn't be easier to add incredible functionality to your AiM SW4 steering wheel. AiM SW4 Clutch Shift Paddles Details Manufacturer: AiM Sports Manufacturer part no.: X07SW4PADSCRL Materials: aluminum, high-impact plastic Number of paddles: two Compatibility: AiM SW4 racing steering wheels

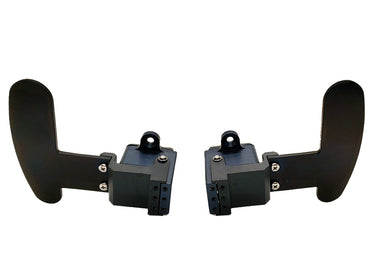

Paddle Shifters for the AiM SW4 Steering Wheel Add gear-shift paddles to your AiM SW4 racing steering wheel with these robust paddles. Simple bolt-on couldn't be easier to add incredible functionality to your AiM SW4 steering wheel. AiM SW4 Paddle Shifter Details Manufacturer: AiM Sports Manufacturer part no.: X07SW4PADSGRLx Materials: aluminum, high-impact plastic Number of paddles: two Compatibility: AiM SW4 racing steering wheels Choose version to fit either 270/280mm or 320/350mm AiM SW4 steering wheels

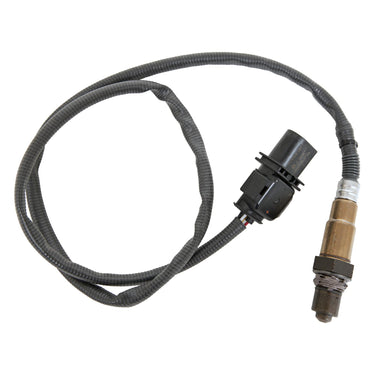

AiM Sports LCU-One Lambda Controller The AiM LCU-One CAN is a Lambda controller unit designed to work exclusively with Bosch LSU 4.9 wide-band probes. These Bosch probes are the quickest, most accurate way to analyze exhaust gases and provide a real-time parameters related to engine carburetion. Lambda probes can be applied to two- or four-strokes engines using gasoline, diesel, methane, or alcohol-based fuels. The AiM LCU-One CAN communicates with the AiM MyChron5 Series via the CAN protocol, providing Lambda value, air/fuel ratio, probe temperature, and diagnostics parameters. An external 12VDC battery is required to supply power to the whole AiM system, including a MyChron5 and any other AiM expansions. The AiM LCU-One CAN is the only Lambda Controller compatible with MyChron5. WHAT'S IN THE BOX? AiM LCU-One Lambda controller Bosch LSU 4.9 wide-band probe Weld-on threaded bung

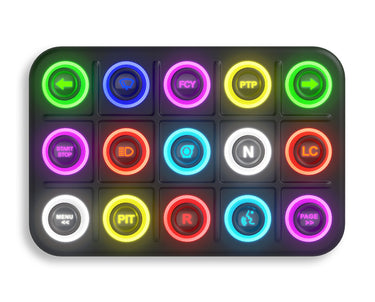

AiM K15 PDM CAN-Configurable Keypad (15-Button) PDM button inserts are sold separately here The AiM K15 is a CAN-programmable, 15-button keypad compatible with AiM PDM systems (PDM08 and PDM32). This keypad comes pre-configured for use with AiM protocols and is ready to be programmed through AiM's RaceStudio software. The buttons measure 15mm in diameter, and the overall keypad size is 157.4mm x 104.4mm x 24.0mm (6.2" x 4.1" x 0.9"). Each button's function and backlight color can be programmed using AiM software. Buttons can be set up as momentary, toggle, or multi-position. Once a button is programmed, install the button insert corresponding to its function. The rear connector is a motorsport-grade female 5-pin Binder 712 connector wired for AiM CAN+, GND, Vb, AiM CAN-, and Vbext. AiM K15 PDM CAN-Configurable Keypad (15-Button) Details Manufacturer: AiM Sports Manufacturer part number: X08KPK15 Weight: 250g (8.8 oz.) Connector: AiM CAN 5-pin Binder 712 Supply voltage: 12-24 VDC, Nominal 8-32 VDC Standby current: <50 mA Communications bus: RS485, CANopen J1939 Operating temperature: -40ºC to 70ºC Thermal shock: -40ºC to 85ºC Salt spray standard: ASTMB117 Chemical resistance: dirt, engine cleaner, isopropyl alcohol, multi-purpose cleaner, muriatic acid Waterproof rating: IP67 Button inserts sold separately Common Features Of The AiM PDM Keypad Reconfigurable buttons Programmable RGB LEDs LED backlit rings and icons Momentary, toggle, and multi-status Two blinking mode Wide range of inserts CAN-Bus system compatible Vertical or horizontal mount Status restore option

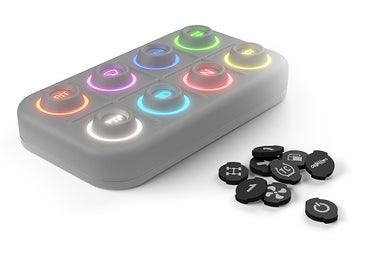

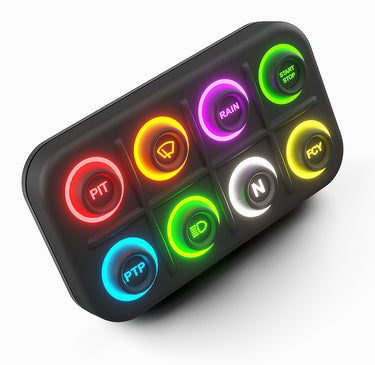

AiM K8 PDM CAN-Configurable Keypad (8-Button) PDM button inserts are sold separately here This is a CAN-programmable 8-button panel compatible with AiM PDM systems (PDM08 and PDM32). This keypad comes pre-configured for use with AiM protocols and is ready to be programmed through AiM's RaceStudio software. The buttons measure 15mm size and the overall panel size is 127.4 x 71.4 x 24 mm (5.0" x 2.8" x 0.9"). AiM K8 PDM CAN-Configurable Keypad (8-Button) Details Manufacturer: AiM Sports Manufacturer part number: X08KPK8 Weight: 150g (5.2 oz.) Connector: AiM 5-pin Binder 712 Supply voltage: 12-24Vdc, Nominal 8-32Vdc Standy current: <50mA Communications BUS: RS485, CANopen J1939 Operating temperature: -40ºC to 70ºC Thermal shock: -40ºC to 85ºC Salt spray standard: ASTMB117 Chemical resistance: dirt, engine cleaner, isopropyl alcohol, multi-purpose cleaner, muriatic acid Waterproof rating: IP67 Each button's function and backlight can be programmed using AiM Race Studio software. Each button can be set up as momentary, toggle, or multi-position. Once a button is programmed, install the button insert (sold separately) corresponding to its function. The rear connector is a motorsport-grade AiM 5-pin Binder 712 female connector pinned-out for AiM CAN+, GND, Vb, AiM CAN-, and Vbext. AiM K8 Configurable Keypad Common Features Reconfigurable buttons Programmable RGB LEDs LED backlit rings and icons Momentary, toggle, and multi-status Two blinking mode Wide range of inserts CAN-Bus system compatible Vertical or horizontal mount Status restore option

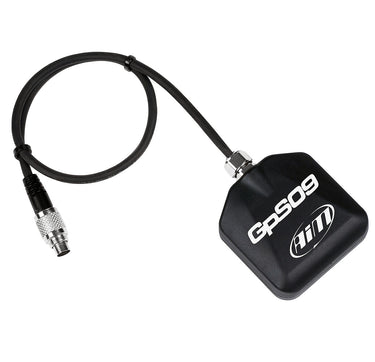

AiM Sports GPS09C Module The GPS09C module from AiM further expands the track mapping abilities of AiM data loggers and dash loggers. In addition, the GPS09C allows lap timing (even split times) without the use of trackside beacons, storing data for as many as 50 race tracks and up to five splits per track. The GPS09C can also calculate and log speed, lateral and longitudinal g-forces, and of course vehicle position. The AiM GPS09CC is the basis of lap time and split time calculations in all AiM systems. These systems come with start/finish line coordinates for more than four thousand race tracks, so your dash or logger automatically recognizes the track you are racing on and will calculate lap times and split times. If the track you're on is not in the database, your system will recognizes a new track and then will calculate lap times. High 25 Hz Sampling and Exceptional Accuracy The GPS09C is the latest version, boasting a quicker 25 Hz sampling rate (up from 10 Hz) and positional accuracy to less than one foot (down from over six feet). It also takes full advantage of Race Studio 3 integration of GPS, video, and data. Simple to install: Just connect the CAN cable to your dash and mount the AiM GPS09C antenna to your vehicle. The Standard Version is magnetic-backed and can be installed inside the cabin or on the vehicle exterior. The Roof Version is designed to run the cable through an exterior panel for a clean, secure, more permanent installation. The GPS09C will automatically configure itself during start-up! The AiM GPS09C connects via a 5-pin Binder 712 screw-in connector. Choose a cable length to suit your installation: 0.5m (1.6 ft), 1.3m (4.3 ft) is appropriate for most formula cars and motorcycles; 2.0m (6.6ft) and 4.0m (13.1 ft) are suitable for most sports cars and sedans. AiM GPS09C Module Compatibility MX Series: MXS, MXP, MXG, MXT SmartyCam Series1: Sport, Corsa, GP, Dual Loggers:1: Evo S, Evo 5 Lap Timer: Solo2 DL Power Distribution Modules: PDM32, PDM08 1 not compatible with Pro and Pro Open versions

AiM MyChron Expansion The AiM MyChron Expansion is an add-on for MyChron4 or MyChron5 Data Logging karting dashes. It plugs into the CAN expansion port on your MyChron dash to expand its capabilities. The Expansion has a single CAN expansion port plus four additional sensor inputs. All four inputs can accept common karting sensors (brake/throttle pedal position, temperature, steering angle, etc.). One of the four inputs can accept a speed sensor instead. Requires an external 12-volt power source such as your kart's battery. The MyChron Expansion channel multiplier improves MyChron5 and MyChron5 2T (and also MyChron4 and MyChron4 2T) performance, thanks to four additional channels and a further CAN bus connector. Through this last connector, the systems can be connected to LCU-One Lambda controller and SmartyCam HD (and to GPS and Data key for MyChron4 systems). Thanks to its specific wirings, MyChron Expansion powers the systems and their peripherals with an external battery, avoiding internal battery consumption. All channels are easily configurable as analog through the system menu to sample data coming from: Exhaust gas valve position sensor (very important to understand at which RPM value the exhaust port opens) Wheel speed sensor: the first input on the left can be configured also as digital input No contact brake pedal position sensor No contact throttle pedal position sensor Brake pressure sensor Water temperature or cylinder head temperature (PT100 thermo-resistor only) Steering angle potentiometer (to highlight over/under steering situations) Brake pedal potentiometer Throttle pedal potentiometer MyChron Expansion is an excellent value-for-money instrument for professional karting analysis. Call us with any questions you have about the MyChron Expansion from AiM Sports! AiM MyChron5 sold separately.

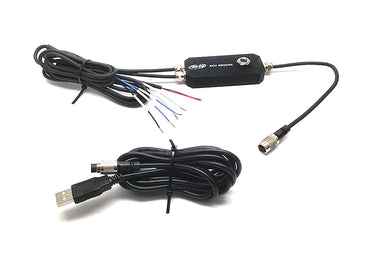

AiM ECU Bridge with RS232/CAN Wiring Connecting to your vehicle's ECU through the CAN bus allows your AiM dash/data-logger to tap into a very wide array of data collected by your ECU. The AiM ECU Bridge with RS232/CAN Wiring works with the following AiM displays with a male Binder 712 5-pin CAN connector: MXG MXS MXT MXP MXm SW4 Steering Wheel Connecting a SmartyCam requires the AiM 7-pin to 5-pin CAN cable included with the SmartyCam. The ECU Bridge also features a special port for a USB cable (included) for easy connection to your computer for set-up. ECU Bridge has a CAN/RS232 connection for direct connection to many aftermarket ECUs. AiM has developed hundreds of different protocols to make compatibility with virtually any ECU possible, stock or aftermarket. The AiM ECU Bridge has to be properly configured with RaceStudio 3 software to communicate with the different dashes, cameras. etc., on one side and your ECU on the other side.

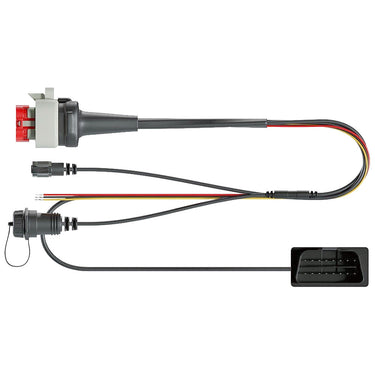

AiM OBDII Harness for MX-Series 1.2 Strada Dashes This OBDII harness from AiM Sports is compatible with the AiM MXS 1.2 Strada, MXP 1.2 Strada, and MXG 1.2 Strada street dashes1. Designed to seamlessly connect via a 14-pin AMP connector on the rear of the dash, this harness ensures efficient power, ground, USB, and CAN connections. Additionally, it facilitates a direct ECU link through the vehicle's OBDII diagnostic port. Ideal for production vehicles equipped with an OBDII port, the harness supports both CAN and K-Line communication standards. 1 AiM MX Strada Series dash sold separately

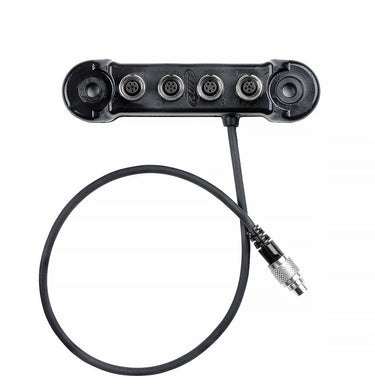

Aim Sports 4-Port Data Hub The acquisition of the essential data you need to evaluate your race car's performance requires the connection of a lot of peripherals to your AiM data-logger. This, in turn, requires a great number of cables. To solve this problem, AiM developed the Data Hub, a CAN connection multiplier that works as an interface between all AiM data-loggers and their various peripherals. Extend the capabilities of your AiM data-logger without occupying any more channels or running more cables to your dash. Each AiM 4-Port CAN Data Hub connects up to four CAN peripherals. You can even stack as many as four AiM Data Hubs, multiplying the number of available connections! Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (thermocouple) Hubs. Any channel can be selected for display on the dash. Includes a 15-inch cable. AiM 4-PORT CAN DATA HUB DETAILS Manufacturer: AiM Sports Manufacturer part no: X08HUB010 Connectors 1-4: Binder 712 5-pin, female (from peripherals) Connector 5: Binder 712 5-pin, male (to dash) Dimensions: 123 x 30 x 23.5mm (4.8 x 1.2 x 0.9 in.) CAN cable length: 40cm (15.75 in.) Weight: 97g (3.4 oz.) Waterproof: IP65 AN EXAMPLE OF A COMPLEX SETUP Let's take a V-8 race car with an AiM MXG 1.3 dash plus the following peripherals: One EGT sensor on every cylinder (8) Two CHT sensors on each cylinder bank (4) One Lambda sensor on each exhaust header (2) One GPS09C module One AiM Memory Key You would need three TC Hubs and two Data Hubs. The EGT and CHT thermocouples would all connect to the three TC Hubs. The TC Hubs and the GPS09C connected to one 4-Port Data Hub. That Data Hub would be connected, the two Lambda controllers, and the Memory Key connect to a second 4-Port Data Hub. And that Data Hub would connect to your AiM MXG 1.3 dash. That's sixteen channels monitored by the MXG 1.3 in addition to the other channels still available. That puts an enormous amount of data  right at your fingertips!

Stilo to IMSA Adapter Cable (Male/Male) This RaceCom cable enables connection between an IMSA helmet kit and a Stilo intercom. All RaceCom cables are built in Mooresville, NC, with U.S. manufactured mil-spec hardware. Every RaceCom cable has been pull-tested by a certified lab to ensure strength and reliability. Their meticulous build process has been proven to outlast and outperform all others in the business. 8 inch coiled cable

Stilo to Sentry Adapter Cable This cable will connect the female comms port on your Stilo GT-style helmet to your Sentry or similar Race Reciever.  Includes 3.5mm (1/8") connector (pinned for listening only) on one end and Stilo male 4C connector on the other. Made in the USA from thin, flexible, ROHS-compliant cable. 3.5mm plug for listening only *Picture below shows multi pin plug.

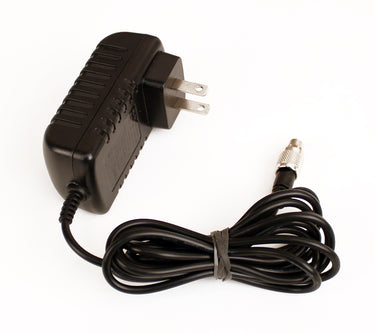

AiM Solo 2 & Solo 2 DL AC Wall Charger The AiM X06A12VBM, is the wall charger in every new AiM Solo 2 and Solo 2 DL kit. This wall charger takes the US 120VAC wall outlet and adapts it to the required 12VDC you need to charge your AiM Solo 2 or Solo 2 DL the night before your event.  AiM Solo 2 & Solo 2 DL AC Wall Charger Details: Manufacturer: AIM Manufacturer part number: X06A12VBM End 1: Male 712 5 Pin Screw-in End 2: US 120VAC Wall Adapter AiM Solo 2 & Solo 2 DL AC Wall Charger Uses Charge Solo 2 from a US 120V wall outlet Charge Solo 2 DL from a US 120V wall outlet

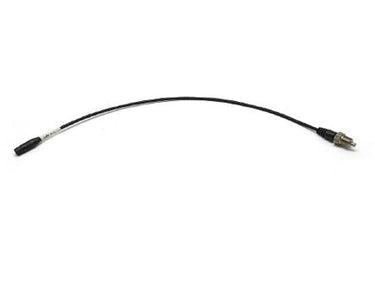

AiM Sports Temperature Sensor NOTE: Sensors typically take 3 to 5 business days to ship.   Add the appropriate AiM Sports Temperature Sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level!
