Karting Data & Timing

MyLaps X2 RaceLink Club Transponder Kit (PCC Legal) Note: this kit typically take three weeks to ship The MyLaps X2 RaceLink Club is the economical X2 transponder system that is Porsche Carrera Cup legal (per 2.10.2). The MyLaps X2 RaceLink Club has no CAN data bus connection. Legal per Porsche Carrera Cup North America Pro-Am 991, the MyLaps X2 RaceLink Club Transponder Kit is a digital on-board marshaling system that includes the X2 RaceLink Club main unit as well as all cabling and antennas needed to get your system up and running. As a digital on-board marshaling system, the X2 RaceLink Club enhances on-track safety by signaling local/full course cautions as well as other flag status.   MYLAPS X2 RACELINK CLUB TRANSPONDER KIT DETAILS Manufacturer: MyLaps Sports Timing Manufacturer Part No: 10C100  Usage: professional/club auto and motorcycle racing Operating voltage: 7-18VDC (12VDC typical) Power consumption: 1.3W (110mA @ 12V) GPS positioning: 3 concurrent GNSS reception Update rate: 5 Hz Operating temp: -20ºC to 50ºC (-4ºF to 122ºF) Transponder dimensions: 83 x 60 x 24mm (3.3 x 2.4 x 1.0 in.) Weight: 120g (0.26 lb.) Waterproof: IP65 MyLaps X2 RaceLink Club Transponder Kit vs X2 RaceLink Pro: The MyLaps X2 RaceLink Club is a more affordable version of the X2 RaceLink Pro. The RaceLink Club eliminates CAN messaging for vehicle telemetry. WHAT'S IN THE BOX? MyLaps X2 RaceLink Club RF whip antenna & adapter cable RF antenna extension cable, 1m (3.3 ft.) GPS antenna Charging cable (USB to M8) M8 Power cable (DP use) Protector caps (2)

AiM Sports MyChron5S 2T Dual-Temp Digital Datalogging Dash For Kart Racing DATA ACQUISITION FOR KARTING ENTERS A NEW ERA The incredible AiM MyChron5S 2T. Besides sampling all of your kart data, the MyChron5S 2T features all the advantages of GPS split- and lap-timing and tracking, dual-temperature inputs, plus a host of new functions designed to provide you with more complete and reliable data both during and after each race. TWO TEMPERATURES UNDER YOUR CONTROL Especially engineered for the most demanding kart racers, the AiM MyChron5S 2T gives you expanded control over your kart performance by controlling two temperature sources instead of just one. DATA, LOTS OF DATA: Lap and split times, best lap, RPM, gear number, track map, cylinder head and EGT, and much more are shown in pre-configured pages: you will be able to choose the page layout you prefer to better monitor your data.At the end of your session, you can recall the summary of your three best laps: lap time, max/min RPM, speed and temperature. For your best lap, you will also see splits and best theoretical time. The AiM MyChron5S 2T has been designed to provide both basic info (for new racers) as well as the most sophisticated data for karting professionals. Fully configurable layout lets you customize the data, color, LED indicators, etc. to suit your individual needs. The AiM MyChron5S 2T comes with a Y-Cable for temperature sensors, an EGT thermocouple, and your choice of either a CHT (cylinder head temp) or H2O (water jacket) thermocouple. Using a two-satellite sensor, the MyChron5S 2T provides super-accurate GPS data for lap/split times, position, speed, etc. AiM has a huge karting track database for easy download of detailed track info. For ten years, the MyChron4 was the benchmark gauge in karting data acquisition. AiM re-establishes the benchmark with the MyChron5S 2T, a big step forward from the MyChron4 and huge leap ahead of all its imitators. At the same time, the AiM MyChron5S 2T is fully compatible with all MyChron4 peripherals, as well as a Lambda controller, Data Hub, MyChron Expansion, and SmartyCam 3. AiM MYCHRON5S 2T DUAL-TEMP DASH DETAILS Manufacturer: AiM Sports Manufacturer part no.: XD1M5S2T Screen resolution: 268x128 pixels Connector sockets: 1 Binder 712, 5-pin 1 Binder 712, 7-pin 1 Binder 712, 4-pin Auto Start/Stop: yes Battery included: rechargeable Li-ion, lasts up to 10 hours Internal memory: 4GB GPS rate: 25 Hz Backlight: 8 configurable RGB colors LED lights: 5 shift, 2 alarm, configurable Wi-Fi: yes Dimensions: 5.4 x 3.5 x 1.9 inches Weight: 0.85 lb. Waterproof: IP67 WHAT'S IN THE BOX? AiM MyChron5S 2T Battery charger with cable, p/n XSMCABATM5 RPM cable, p/n X05SNRPMY0 Two temperature sensors, choose from: CHT - cylinder head temp thermocouple  H2O - water temp thermoresistor EGT-M5: exhaust gas temp thermocouple w/ M5 fitting EGT-T12: exhaust gas temp thermocouple w/ T12 fitting (CIK-FIA) Call us with any questions you have about the incredible AiM MyChron5S 2T!

AiM Sports MyChron5S Digital Datalogging Dash For Kart Racing Data acquisition for karts enters a totally new dimension: the AiM MyChron5S. Besides sampling all your kart data, MyChron5S features all the advantages of GPS timing and tracking, plus a lot of new functions designed to provide more complete and reliable information both during and after each race: Lap and split times Speed RPM Head, H2O, or Exhaust Temperature (or two temps with 2T!) Track Position Acceleration Much more! MyChron5S has been designed to provide both basic info (for new racers) and the most sophisticated data to karting professionals. Fully configurable layout lets you customize the data, color, LED indicators, etc. to suit your individual needs. Plus, the MyChron5S 2T adds sampling of a second temperature to the basic MyChron5S. Using a two-satellite sensor, the MyChron5 provides super-accurate GPS data for lap/split times, position, speed, etc. We have a huge track database for easy download of detailed track info. For ten years, the MyChron4 was the benchmark gauge in karting data acquisition. AiM re-establishes the benchmark with the MyChron5S -- a leap ahead of the 4 (all its imitators). At the same time, the MyChron5 is fully compatible with all MyChron4 peripherals, as well as a Lambda controller, Data Hub, MyChron Expansion, and SmartyCam. Features include: Automatic Start Rechargeable Li-Ion battery lasts up to 10 hours 1 MB memory for over 3 hours of data logging One Temperature channel (two on the 2T; both include thermocouple) Seven fully-configurable LEDs (alarm, shift, etc.) LCD screen with configurable color Wireless data download via secure Wi-Fi connection Intuitive menu design for easy configuration Call us with any questions you have about the incredible new MyChron5S from AiM Sports! * Configurable as Shift Lights or RPM/Lap Times Alert

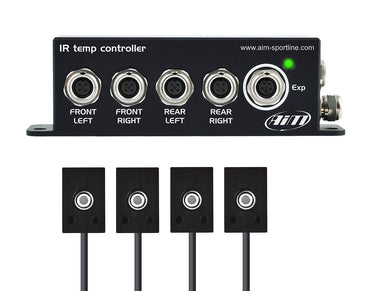

AiM Sports Tire Temperature Sensor Kit AiM Tire Temperature sensors have been specifically designed to measure the surface temperature of tires, providing important info for chassis tuning, tire management, and driver behavior. AiM sensors have a 35° field-of-view to measure temperatures between -20ºC and 120°C (-4ºF and 248ºF) and provide a 0-5V output signal. The four AiM Tire Temperature sensors come in a kit including an Infrared Temperature Controller device, necessary for connection to MyChron5/5S/2T. Installation should done using the dedicated installation bracket kit. AiM KARTING TIRE TEMPERATURE SENSOR KIT DETAILS Manufacturer: AiM Sports Manufacturer part no.: X08TTK014120 IR Temperature Controller Output: 0-5V Field of View: 35° Temperature range: -20° to 120°C (-4ºF to 248ºF) IR temperature controller dimensions: 127.6 x 32 x 39mm IR temperature controller cable length: 400mm (15.8 in.) Sensor dimensions: 26.6 x 17.2mm Sensor cable length: 250mm (9.8 in.) WHAT'S IN THE BOX? (1) IR temperature controller (4) Tire temperature sensors (1) Power Cable (2) 712+719  patch cables, 4-pin, 1m (3.3 ft.) length (2) 712+719  patch cables, 4-pin, 2m (6.6 ft.) length Optional: Installation bracket kit X90KSTTS0 (add it in the dropdown above) AiM MyChron dash/data-logger sold separately.

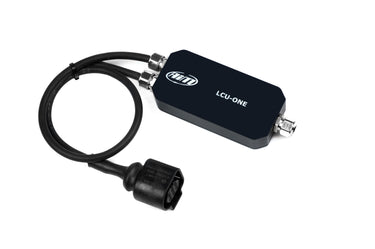

AiM Sports LCU-One Lambda Controller The AiM LCU-One CAN is a Lambda controller unit designed to work exclusively with Bosch LSU 4.9 wide-band probes. These Bosch probes are the quickest, most accurate way to analyze exhaust gases and provide a real-time parameters related to engine carburetion. Lambda probes can be applied to two- or four-strokes engines using gasoline, diesel, methane, or alcohol-based fuels. The AiM LCU-One CAN communicates with the AiM MyChron5 Series via the CAN protocol, providing Lambda value, air/fuel ratio, probe temperature, and diagnostics parameters. An external 12VDC battery is required to supply power to the whole AiM system, including a MyChron5 and any other AiM expansions. The AiM LCU-One CAN is the only Lambda Controller compatible with MyChron5. WHAT'S IN THE BOX? AiM LCU-One Lambda controller Bosch LSU 4.9 wide-band probe Weld-on threaded bung

MyLaps TR2 Direct Power Auto Transponder The MyLaps TR2 direct power lifetime transponder comes with a pre-paid 1, 2, or 5 year subscription that is easily renewed through the MyLaps Speedhive app. MyLaps TR2 Direct Power Auto Transponder Details: Manufacturer: MyLaps Manufacturer part number for transponder 1 year: 10R971CC Manufacturer part number for transponder 2 year: 10R972CC​ Manufacturer part number for transponder 5 year: 10R975CC Manufacturer part number for transponder lifetime: 10R830CC​ Duration: 1/2/5 year extendable after included subscription Power supply: 10.2-14.5 VDC Wiring harness included: Yes Vehicle mount clip included: Yes Easy permanent installation The most accurate and reliable transponder on the market Compatible with all MYLAPS platforms Unlimited warranty during active subscription Get quick and easy mobile access to your personal event results in the free MYLAPS Speedhive App The MyLaps TR2 Direct Power transponder kit includes everything you need to race in WRL, ChampCar, NASA, SCCA, PCA, BMWCCA, LuckyDog and others. Mounting: Using the included mount clip that you mount to your chassis, in a protected zone, such as behind the radiator not near the exhaust. Mounting on the front license plate area is not advised in bumpdrafting classes. Wiring: We normally wire the transponder to the ignition switched hot circuit, so the driver is hands off from this control Voltage requirements: 10.2 - 14.5 VDC

AiM MyChron Expansion The AiM MyChron Expansion is an add-on for MyChron4 or MyChron5 Data Logging karting dashes. It plugs into the CAN expansion port on your MyChron dash to expand its capabilities. The Expansion has a single CAN expansion port plus four additional sensor inputs. All four inputs can accept common karting sensors (brake/throttle pedal position, temperature, steering angle, etc.). One of the four inputs can accept a speed sensor instead. Requires an external 12-volt power source such as your kart's battery. The MyChron Expansion channel multiplier improves MyChron5 and MyChron5 2T (and also MyChron4 and MyChron4 2T) performance, thanks to four additional channels and a further CAN bus connector. Through this last connector, the systems can be connected to LCU-One Lambda controller and SmartyCam HD (and to GPS and Data key for MyChron4 systems). Thanks to its specific wirings, MyChron Expansion powers the systems and their peripherals with an external battery, avoiding internal battery consumption. All channels are easily configurable as analog through the system menu to sample data coming from: Exhaust gas valve position sensor (very important to understand at which RPM value the exhaust port opens) Wheel speed sensor: the first input on the left can be configured also as digital input No contact brake pedal position sensor No contact throttle pedal position sensor Brake pressure sensor Water temperature or cylinder head temperature (PT100 thermo-resistor only) Steering angle potentiometer (to highlight over/under steering situations) Brake pedal potentiometer Throttle pedal potentiometer MyChron Expansion is an excellent value-for-money instrument for professional karting analysis. Call us with any questions you have about the MyChron Expansion from AiM Sports! AiM MyChron5 sold separately.

MyLaps TR2 Transponder The new standard in sports timing! The TR2 Transponder is the newest and most innovated transponder for motorsports. Reliable hardware, easy subscription management via Bluetooth and the Speedhive App and flexible subscription options to fit your needs. Make Racing Easier The TR2 Transponder is a product, arising from listening carefully to you, our users. The TR2 Transponders is the world-leading standard in accuracy, just like our other Transponders, but now made much easier in many ways. The TR2 Transponder is the new standard. Easy To Manage Always be prepared before racing! The new TR2 Transponder gives you all the information you need to start your race fully prepared. Due to a Bluetooth connection with the Speedhive app, it very easy to register and activate your transponder. In the Speedhive app, you re easily reminded of the duration of your ongoing license and battery status. Manage the needs of your transponder everywhere with your smartphone. Free Speedhive App The more you know, the faster you go. With the TR2 Transponder, all your race data will be available your personal MYLAPS Speedhive account. The free Speedhive app gives you quick access to the official results of motorized sport events. FEATURES: Easy connection of your transponder with your Speedhive App via Bluetooth Easy buying and syncing your subscription with your Speedhive App Up to date status of battery level and subscription status View live race data Get quick and easy mobile access to your personal event results Compare your lap times with other racers in one graph Gain followers with your personal profile Analyze where you won and lost compared to your opponents Follow races and racers all over the world

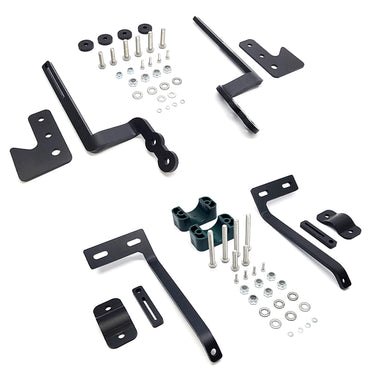

AiM Sports Installation Brackets for Tire Temperature Sensor Kit The AiM Installation Bracket Kit is designed specifically to mount four IR tire temperature sensors from the AiM Karting Tire Temperature Sensor Kit to your racing kart. The two front brackets are designed to mount to your kart's steering arm on the spindle, so the sensor follows the tire as you turn. The two rear brackets clamp onto chassis tubes. Because of the wide variety of kart chassis designs, some drilling, fitting, and/or minor adapting may be required to get the four sensors placed exactly right. The AiM Tire Temperature Sensor Installation Bracket Kit includes all necessary mounting hardware, including screws to mount the IR sensors to the brackets. Each bracket is made from heavy-gauge aluminum for light weight, rust resistance, and excellent durability. With some modification, this kit can also be used as the basis for mounting IR tire temp sensors to a race car. One hole in the front brackets is left un-drilled so you can drill it to match your steering arm. Installation of the kit will require drilling at least two holes 3/16" (5mm or SAE #8 drill bit) in diameter. AiM KARTING TIRE TEMPERATURE BRACKET KIT DETAILS Manufacturer: AiM Sports Manufacturer part no.: X90KSTTS0 Bracket material: heavy-gauge aluminum Front bracket LxWxH: 230 x 85 x 48mm Rear bracket LxWxH: 208 x 72 x 136mm

AiM Kart Racing Steering Angle Sensor Measure and log your kart driver's steering input with the AiM Steering Angle Sensor. Includes a rotary potentiometer with a male 4-pin 719-style connector, two toothed pulleys, one toothed belt, and one sensor mounting bracket. The steering shaft pulley is designed to fit a 7/8"-diameter shaft. (Smaller shafts will need to add a bushing to fit the pulley.) This sensor is designed to measure up to five complete turns of the steering column. This sensor requires the addition of an Expansion Box or eBox when used with MyChron3 Extreme, MyChron4, and MyChron5 kart dash loggers. If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. AIM-MC-280) instead. The String Pot can work with any diameter steering shaft.

MyLaps TR2 Transponder Controlled by your smartphone, the new MYLAPS TR2 transponder for kart racing is the new standard in karting transponders. Using the proven sealed package shape of the years gone by favorite "old yellow" rechargeable transponder, the MYLAPS TR2 brings back simplicity to kart transponders. MYLAPS TR2 Rechargeable Kart Transponder Details: Manufacturer: MYLAPS Sports Timing Manufacturer Part Number 1 Year: 10R911CK Manufacturer part number 2 Year: 10R912CK Manufacturer part number 5 Year: 10R915CK Usage: Kart Power Supply: Rechargeable Phone Connection: Bluetooth The new standard in sports timing! The TR2 Transponder is the newest and most innovated transponder for motorsports. Reliable hardware, easy subscription management via Bluetooth and the Speedhive App and flexible subscription options to fit your needs. Make Racing Easier The TR2 Transponder is a product, arising from listening carefully to you, our users. The TR2 Transponders is the world-leading standard in accuracy, just like our other Transponders, but now made much easier in many ways. The TR2 Transponder is the new standard. Easy To Manage Always be prepared before racing! The new TR2 Transponder gives you all the information you need to start your race fully prepared. Due to a Bluetooth connection with the Speedhive app, it very easy to register and activate your transponder. In the Speedhive app, you re easily reminded of the duration of your ongoing license and battery status. Manage the needs of your transponder everywhere with your smartphone. Free Speedhive App The more you know, the faster you go. With the TR2 Transponder, all your race data will be available your personal MYLAPS Speedhive account. The free Speedhive app gives you quick access to the official results of motorized sport events. FEATURES: Easy connection of your transponder with your Speedhive App via Bluetooth Easy buying and syncing your subscription with your Speedhive App Up to date status of battery level and subscription status View live race data Get quick and easy mobile access to your personal event results Compare your lap times with other racers in one graph Gain followers with your personal profile Analyze where you won and lost compared to your opponents Follow races and racers all over the world

AiM Magnetic Pedal Position Sensor For MyChron5 The accelerator/brake pedal position sensors is a crucial support device for kart drivers. They provide a precise indication of timing and intensity of braking and/or acceleration. This permits the team to understand whether the driver has accelerated or braked at the right moment, with the correct pedal strength, across multiple laps and overlaid with other critical data. This is a very important factor in evaluating driver behavior and improving his/her performance. Data can be acquired by your MyChron5 connected to a MyChron Expansion and analyzed on your PC. Made in anodized aluminium, these sensors are very robust and water-resistant. Calibration is immediate: once installed, connect the sensors to your MyChron Expansion and get pedal positions (in high position and zero position). After that the sensor will start getting acceleration or braking data. Call us with any questions you have about the incredible new MyChron5 2T from AiM!

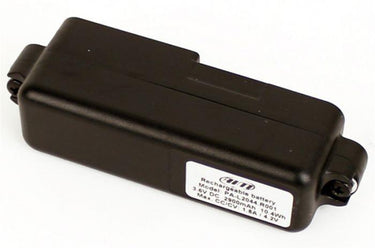

AiM MyChron 5 Battery Replacement Pack Have a charged extra MyChron 5 battery pack, ready to go. Be ready for anything on the kart track with this rechargeable Lithium battery. You will no longer need to carry with you or worse, locate at your track, your dead MyChron 5 Battery. The MyChron 5 rechargeable battery lasts more than ten hours. Charge it in your shop, trailer, or truck just like a cell phone and use it all day long. MyChron 5 can also be powered by an external 12V power source if you are running external sensors or AiM SmartyCams. AiM MyChron 5 Battery Replacement Pack Details: Manufacturer: AiM Manufacturer part number: 2BT18650TDM Manufacturer alternate part number: AIM-MC-111 Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No

719 to 3-pin 712 Adapter Cable Only for Rotax Temp Sensor This patch cable has a 719 push-on connector at one end and a 3-pin 712 screw-in connector at the other. It is only used in karting applications, usually with the Rotax engine. This is the same cable included with the AiM Rotax Water Temperature Sensor Kit (Part No. AIM-MC-040). 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details:Manufacturer: AiMManufacturer part number: V02PCB15BTRManufacturer MC-041Kart Only: YesCable End 1: 719 push-onCable End 2: 3-pin 712 screw on. 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details: Manufacturer: AiM Manufacturer part number: V02PCB15BTR Manufacturer MC-041 Kart Only: Yes Cable End 1: 719 push-on Cable End 2: 3-pin 712 screw on

AiM MyChron 5 Battery Charger AiM MyChron 5 battery charger is used to power up your MyChron 5 rechargeable lithium batteries. Plug into a USB port and you're ready to start charging your MyChron5 battery! AiM MyChron 5 Battery Charger Details: Manufacturer: AiM Manufacturer part number: XSMCABATM5 Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No
