Carbotech Brake Pads

Carbotech C5 Corvette & C5 Corvette Z06 (1997-2004) rear brake pads. These Carbotech rear brake pads are available in 1521, AX6, XP8, XP10, XP12, XP20, XP24 and RP2 compounds. The most popular compound for advanced drivers is XP10 front and XP8 rear.

How To Properly Bed In Carbotech Racing Brake Pads

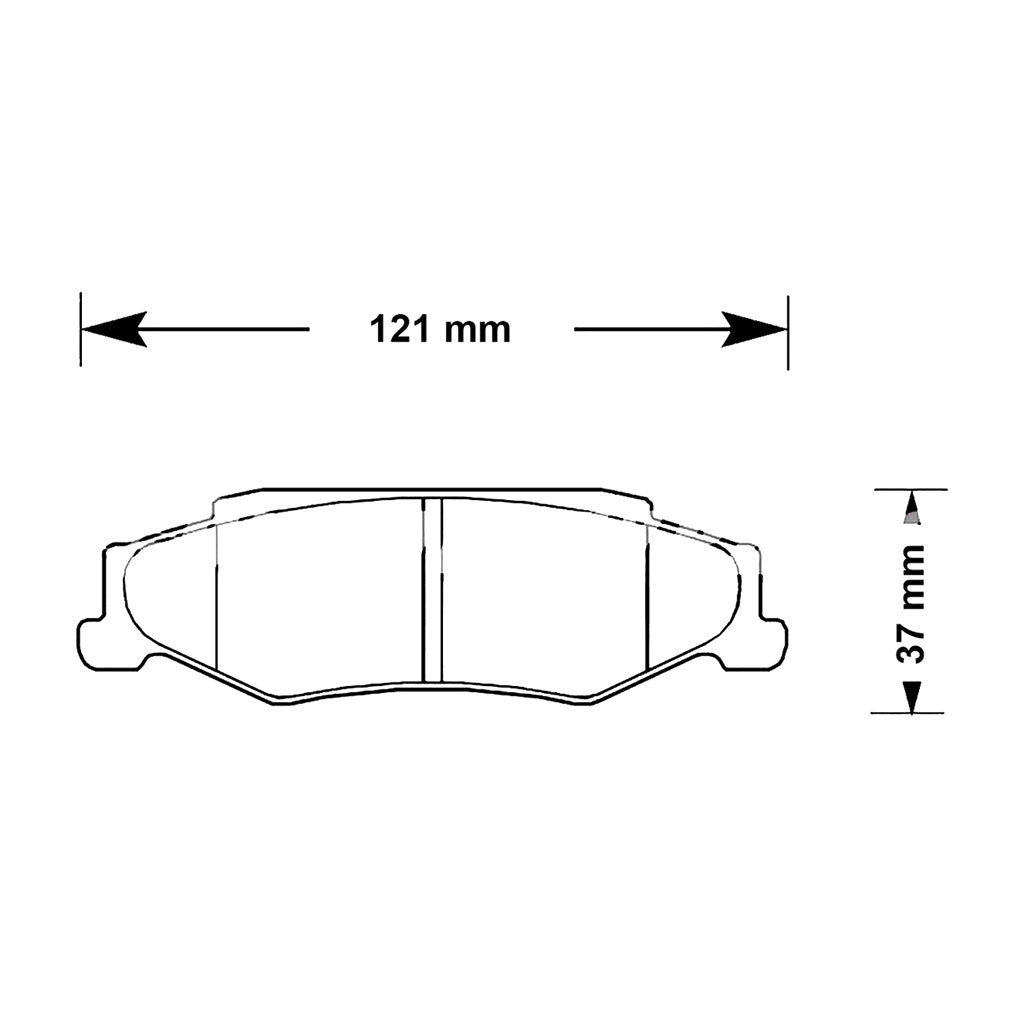

CARBOTECH CT732 REAR BRAKE PAD DETAILS

• Manufacturer: Carbotech
• Manufacturer Part Number: CT732
• Most popular track combination: XP10 Front, XP8 Rear
• G-Loc cross reference: GP732
• Hawk cross reference: HB248.650
• Material thickness of pad of backing plate and pad material: .650"
• Material thickness of pad of backing plate and pad material: 17mm

BRAKE PAD COMPOUNDS

Carbotech 1521

The Carbotech 1521 is our high performance street compound. The 1521 compound is known for its release and modulation, along with unmatched rotor friendliness. 1521 is also a very low dusting and low noise compound with an excellent initial bite. This compound's excellent linear torque production provides incredible braking force without ABS intervention. Carbotech 1521 operating range starts out at ambient and goes up to 800º F (426º C+). 1521 is suitable for ALL street cars, perfect for your tow vehicle or fleet vehicle. Carbotech 1521 is not recommended for ANY track use.

Carbotech AX6

The AX6 is specifically engineered for Autocross applications. A high torque brake compound delivering reliable and consistent performance over a very wide operating temperature range of 50º F to 1000º F + (10º C to 537º C+). The advanced compound matrix provides an excellent initial bite, high coefficient of friction at lower temperatures along with very progressive brake modulation and release characteristics. Many drivers use the AX6 for street driving as well, even though Carbotech doesn't recommend street driving with AX6 due to possible elevated levels of dust and noise. AX6 is not recommended as a race compound in most applications.

Carbotech XP8

A high torque brake compound with a wide operating temperature range of 200º F to 1250º F+ (93º C to 676º C+). Carbotech XP8 is the first of our racing compounds. Good initial bite at race temperatures, high coefficient of friction, excellent modulation and release characteristics. Extremely high fade resistance and very rotor friendly. Perfect for track day use with any tire and can still be driven safely to and from the track. Carbotech does not recommended XP8 as a daily driven street pad due to elevated levels of dust and noise. Carbotech XP8 is a great compound on the front & rear of most open wheel and sports racers.

Carbotech XP10

When Carbotech unleashed the XP10 to the general public it immediately gathered multiple regional, divisional, and national championships. The XP10 has a very strong initial bite with a coefficient of friction and rotor friendliness unmatched in the industry. Fade resistance is in excess of 1475º F (801º C). XP10 still maintains the highly praised release, excellent modulation and rotor friendliness that have made all Carbotech compounds so successful. Carbotech XP10 is not recommended as a daily-driven street pad due to possible elevated levels of dust and noise.

Carbotech XP12

Another highly successful XP series compound with an excellent initial bite, torque and fade resistance over and above the XP10 compound. XP12 has temperature range of 250º F to 1850º F+ (121º C to 1010º C+). The XP12 has that excellent Carbotech release and modulation that has made all other Carbotech compounds so successful. The XP12 is more rotor aggressive than XP10, but compared to the competition the XP12 is still very rotor friendly. XP12 is not recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.

Carbotech XP20

The latest iteration of the highly successful XP series of compounds. XP20 is a step up from the highly successful XP16 compound. With an extremely aggressive initial bite, linear torque curve and excellent fade resistance the XP20 is another major step in progression of the highly successful XP series line of compounds from Carbotech. XP20 has a temperature range of 275º F to 2000º F+ (135º C to 1093º C+).

Carbotech XP20 maintains their tradition of having the outstanding release and modulation that has made all other Carbotech compounds so successful. Carbotech XP20 is not recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.

Carbotech XP24

XP24 is the pinnacle compound of the extremely successful XP Series of compounds engineered by Carbotech . This compound is based on the same fundamentals that exist in all other Carbotech formulations. XP24 has even more initial bite, more overall bite, and more torque along with the most linear torque curve Carbotech has ever offered.

The thermal characteristics are the highest Carbotech offers, along with one of the highest coefficient of friction ratings offered by anyone in the braking industry. This compound is the longest wearing compound Carbotech offers as it was originally engineered for endurance applications at the highest pro racing levels.

This revolutionary new compound has been extremely successful with open wheel, closed wheel, sprint and endurance applications. XP24 has a temperature range of 400º F to 2000º F+ (204º C to 1093º C+). Carbotech XP24 is not recommended for use as a daily driven street pad due to possible elevated levels of dust and noise along with the necessary heat required to work properly.

Carbotech RP2

The RP2 compound was engineered for endurance racing based on our highly successful XP Series formulations. RP2 has strong initial bite, a little less modulation than our XP12 , but still maintains the rotor friendliness of our XP series compounds. RP2 has great fade resistance with a temperature range of 250º F to 1450º F+ (121º C to 787º C). RP2 is as rotor friendly as our XP series compounds. Carbotech RP2 is not recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.

CARBOTECH CT732 REAR BRAKE PAD FITMENTS

• 1997 CHEVROLET CORVETTE (1997, 1997)
• 1998 CHEVROLET CORVETTE (1998, 1998)
• 1999 CHEVROLET CORVETTE (1999, 1999)
• 2000 CHEVROLET CORVETTE (2000, 2000)
• 2001 CHEVROLET CORVETTE (2001, 2001)
• 2002 CHEVROLET CORVETTE (2002, 2002)
• 2003 CHEVROLET CORVETTE (2003, 2003)
• 2004 CADILLAC XLR BASE (2004, 2004)
• 2004 CHEVROLET CORVETTE (2004, 2004)
• 2005 CADILLAC XLR BASE (2005, 2005)
• 2005 CHEVROLET CORVETTE EXCEPT Z51 PACKAGE (2005, 2005)
• 2005 CHEVROLET CORVETTE Z51 PACKAGE (2005, 2005)
• 2006 CADILLAC XLR BASE, V EXCEPT XLR-V (2006, 2006)
• 2006 CADILLAC XLR BASE, V XLR-V SUPERCHARGED (2006, 2006)
• 2006 CADILLAC XLR V ALL (2006, 2006)
• 2006 CHEVROLET CORVETTE EXCEPT Z51 PACKAGE (2006, 2006)
• 2006 CHEVROLET CORVETTE Z51 PACKAGE (2006, 2006)
• 2007 CADILLAC XLR BASE, V EXCEPT XLR-V (2007, 2007)
• 2007 CADILLAC XLR BASE, V XLR-V SUPERCHARGED (2007, 2007)
• 2007 CADILLAC XLR V ALL (2007, 2007)
• 2007 CHEVROLET CORVETTE EXCEPT Z51 PACKAGE (2007, 2007)
• 2007 CHEVROLET CORVETTE Z51 PACKAGE (2007, 2007)
• 2008 CADILLAC XLR BASE, V, PLATINUM EXCEPT XLR-V (2008, 2008)
• 2008 CADILLAC XLR BASE, V, PLATINUM XLR-V SUPERCHARGED (2008, 2008)
• 2008 CADILLAC XLR PLATINUM ALL (2008, 2008)
• 2008 CADILLAC XLR V ALL (2008, 2008)
• 2008 CHEVROLET CORVETTE STANDARD BRAKES (2008, 2008)
• 2008 CHEVROLET CORVETTE Z51 PACKAGE (2008, 2008)
• 2009 CADILLAC XLR BASE, V, PLATINUM EXCEPT XLR-V (2009, 2009)
• 2009 CADILLAC XLR BASE, V, PLATINUM XLR-V SUPERCHARGED (2009, 2009)
• 2009 CADILLAC XLR PLATINUM ALL (2009, 2009)
• 2009 CHEVROLET CORVETTE STANDARD BRAKES (2009, 2009)
• 2009 CHEVROLET CORVETTE Z51 PACKAGE (2009, 2009)
• 2010 CHEVROLET CORVETTE BASE MODEL; EXCEPT MAGNETIC RIDE CONTROL (2010, 2010)
• 2010 CHEVROLET CORVETTE BASE MODEL; MAGNETIC RIDE CONTROL (2010, 2010)
• 2011 CHEVROLET CORVETTE BASE MODEL; EXCEPT MAGNETIC RIDE CONTROL (2011, 2011)
• 2011 CHEVROLET CORVETTE BASE MODEL; MAGNETIC RIDE CONTROL (2011, 2011)
• 2012 CHEVROLET CORVETTE BASE MODEL WITH HEAVY DUTY J55 OR F55 BRAKE PACKAGE (340MM (13.3") FRONT ROTOR) (2012, 2012)
• 2012 CHEVROLET CORVETTE BASE MODEL WITH STANDARD JL9 BRAKE PACKAGE (325MM (12.8") FRONT ROTOR) (2012, 2012)
• 2013 CHEVROLET CORVETTE BASE MODEL WITH HEAVY DUTY J55 OR F55 BRAKE PACKAGE (340MM (13.3") FRONT ROTOR) (2013, 2013)
• 2013 CHEVROLET CORVETTE BASE MODEL WITH STANDARD JL9 BRAKE PACKAGE (325MM (12.8") FRONT ROTOR) (2013, 2013)
