Lifeline

Part Number: 920-101-003-FIA

The Perfect Affordable Extinguisher For HPDE Cars For HPDE participants, there simply is no better affordable fire extinguisher to protect your valuable sports car if things go sideways at the racetrack. AFFF (Aqueous Film Forming Foam) fire extinguishers are suitable for use on Class A (wood, paper, material & cloth) & Class B (flammable liquids: gasoline, spirits, diesel, etc.) fires. This Dual Class A & B rating makes the Lifeline Foam (AFFF) Fire Extinguishers far superior for use in your HPDE car and trailer vs. the typical big-box store extinguisher. These are NOT approved or intended for use as motorsports-sanctioned fire suppression systems.  The Lifeline AFFF Handheld fire extinguisher is ideal for your road car, trailer, or workshop. While this uses the same extinguishing agent used in the Lifeline Zero 2000 systems, this extinguisher is not approved (rated) for use in motorsport. Lifeline AFFF (Aqueous Film Forming Foam) is a non-toxic, ozone friendly fire suppressant that offers the competitor the same level of protection as the pros use. The vertically stored steel bottle is rugged and has an easy to read pressure gauge mounted near the handle.   All Lifeline hand held fire extinguishers are supplied complete with a bracket and two quick release straps for easy access.  Extinguishers are refillable and should be serviced every two years. Choose from 1.0, 1.75, or 2.4 liter bottles.  Ground Shipping Only. Pressurized bottles cannot be shipped via air.

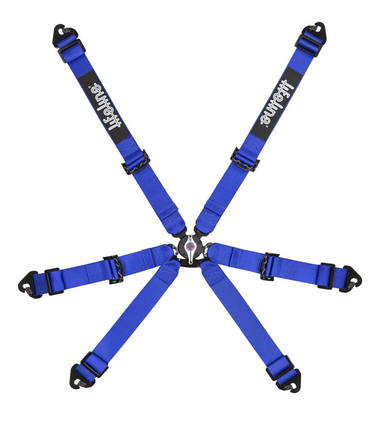

Lifeline Copse 6 Point Racing Harness Carrying the FIA 8853-2016 homologation certification, the Lifeline Copse Six-Point Racing Harness is designed and made in the UK at Lifeline's ISO 9001:2015 accredited factory. This ensures that the high quality and attention to detail you expect in Lifeline's motorsport safety systems are carried over to every feature of the Lifeline Copse 6 Point Racing Harness. This state of the art Lifeline Copse 6 Point Racing Harness features lightweight aluminum adjusters for quick and easy adjustment and release. With the added benefit of lap strap zip adjusters that are integral within the lap strap tongue, these Lifeline Copse 6 Point Racing Harnesses are the perfect choice for endurance racing when changing from one driver to another, but they're also a fantastic choice for sprint races. INNOVATIVE DESIGN MEETS ATTENTION TO DETAIL The Lifeline Copse 6 Point Racing Harness delivers extreme attention to detail such as high contrast pull down loops on both the lap and shoulder adjusters as well as the strategically placed Velcro for communication cables and/or hydration tubes. They also include both snap hook and bolt-in end fittings. The unique and lightweight aluminum buckle mechanism on the Lifeline Copse 6 Point Racing Harness has been designed for easy, positive latching and the buckle has been manufactured from high quality aerospace grade materials, ensuring maximum confidence from the driver that the harness is correctly and safely latched in place. INSTALL RACING HARNESSES AT THE PROPER ANGLES AND DISTANCE LIFELINE COPSE 6 POINT RACING HARNESS DETAILS FIA Homologation: the Lifeline Copse racing harness is FIA 8853-2016 certified Webbing: full 2" material is used in all positions. The benefits of 2" webbing has been known for a long time, and Lifeline built this harness using the latest technology and racing safety data. Camlock: Lifeline uses a lightweight oversized rotary lever system to make release easy with gloves on. Also a very nice feature we noticed, is the ability for the lever to go "over-center" and stay in an open position. This may not seem like a big benefit, but we've all released a harness only to have the lever go back to closed, still attached to one belt. Lifeline mitigates this issue with a great racer-input design. Waist Adjusters: typically only found on high-priced harness systems, the "Zip" enduro driver pull-down adjuster is spring loaded to always keep tension on the waist belts, no matter how much you move around in your chassis. What makes this an enduro driver favorite is that the adjuster clicks into the camlock. On a team with a 140-lb. driver and a 240-lb. driver, the adjuster is always in the same position. From an ITC VW to a Porsche GT2, you'll appreciate this detail on Lifeline's waist adjustment system. Chassis Fittings: to make installation easy and safe, Lifeline included both bolt-in and snap-on end fittings. Lifeline uses a non-sewn/lock-bar system to make using the enclosed harness ends or wrapping around the cage easy. Born of Quality: built by artisans in the UK, not just designed in the UK and built somewhere else. The Lifeline Copse harness is both designed and manufactured in the UK at Lifeline's ISO 9001:2015 accredited factory. This harness is only available in pull-down lap belt configuration.

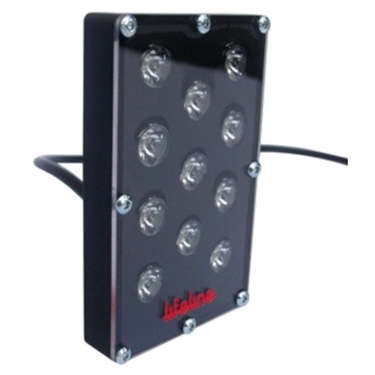

Lifeline FIA LED Rain Light The Lifeline FIA 8874-2019 LED rain light was developed for the highest levels of international and national motorsport use. Holding the FIA MSA/RWL/36/14 homologation for competition use by the MSA and FIA, you will see this Lifeline FIA LED rain light on various LMP2 and GTE vehicles in WEC to Prototypes, GTLM, and GT3 vehicles in IMSA. Lifeline FIA LED Rain light Details: Manufacturer: Lifeline Manufacturer part number: 421-100-011 FIA Homologation Standard: 8874-2019 FIA Tech List 76 approved Display: Light Emitting Diode Number of LEDs: 11 Number of Circuits: 3 View Angle: +/- 20 deg Light Output: 3269Cd Average Operating Temperature: -25 to + 60 degC Fixing: M6 Bolt Dimensions: 62 c 100 x 21.5mm Weight: 230g Power Supply: External 9 to 14 Vdc Power Consumption: 8.4W, 700mA @12v Flash: 4Hz The Lifeline 421-100-0011 LED rain light has a light output of 3269cd (more than 3.5x the competition), this light is intensely bright and extremely visible. The 4Hz flash mode meets the latest FIA standard, flashing between full power and 40% to ensure constant visibility. With a working voltage of 9 Vdc through 14 Vdc at with a miniscule 700mA draw, this rain light has become the rain light of choice of racers with very small alternators or racers running off the battery alone. Lifeline FIA LED Rain Light Benefits: Extremely high brightness Lightweight Energy efficient Robust Submersible / Waterproof Vibration resistant Overheat protected Replaceable protective screen The Lifeline LED Rain Light has an estimated 35,000 hour life - approximately 3.5 times more than the typical competitor. Made with an engineered aluminum heatsink base and 100% weatherproof connectors, this piece is designed to last in the most demanding conditions. Flashing rain lights are now mandated by several North American racing series and are highly recommended when stalled on the grid, driving slowly with a misfire or puncture, or during a safety car or red flag period to aid in visibility and prevent impact.

Heat Detection Cable Protectowire 356oF / 180oC Priced by the Meter Protectowire is an electrical circuit containing heat-sensitive materials. When the outer covering melts, the wires will make contact and complete the circuit, activating the fire system. This can be a critical extra safety feature especially if the driver becomes incapacitated in an accident. MOUNTING: Mount along the ceiling of the cabin using an "S-pattern". Some additional wiring may be required between the Protectowire and your system's electrical trigger. Use care to not crimp or crease the outer sheath and create a weak spot. Keep away from heat sources including the engine compartment, transmission, differential, exhaust, direct sunlight, or hot surfaces. Keep away from any sharp edges that could cut or cause an abrasion on the sheathing. An inline plug can be used to disconnect the sensor cable during storage, transport, etc. The cable we sell is set to trigger at 356 F (180 C).Currently, Protectowire is only compatible with Lifeline electric systems.

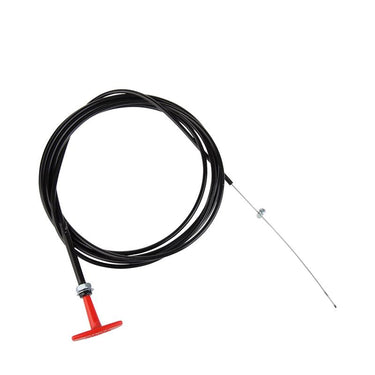

Lifeline T Handle Fire Extinguisher Pull Cables 12 foot   12 foot pull cable for Lifeline mechanical systems. Generally used for exterior applications.

Lifeline T Handle Fire Extinguisher Pull Cables 6 foot   6 foot pull cable for Lifeline mechanical systems. Generally used for interior applications.

Lifeline Zero 2000 2.25 Liter Steel Manual Fire Suppression System Ground shipping only. Pressurized bottles cannot be shipped via air. This is Lifeline's entry level AFFF system meeting most 5lbs suppressant requirements, however it is does not carry an SFI or FIA certification. This system utilizes a steel bottle with mechanical activation and employs two nozzles: one in the engine bay, one in the cockpit. It is best suited for open wheel, formula, and small-cockpit prototypes where space is limited. This system is designed to meet the need for a cost-effective, plumbed-in system that is more effective than a handheld (or waiting for track safety personnel). Lifeline Zero 2000 systems are constructed using only the finest materials and are supplied complete with all of the components required for a professional installation. This system, like all Lifeline systems, performed supremely well in engine fire tests, and thus has the full acceptance of the MSA. FIRE MARSHAL SYSTEMS Fire Marshal Systems are mechanical in operation being activated by strategically placed pull cables. The fire marshal valve is a high quality hand held commercial valve that has been modified by Lifeline to allow total discharge and fitting of pull cables. FEATURES: Weight: 7.37 pounds 6ft Pull Cable (x 2) Zero 2000 Nozzle (All x 2) 6mm Equal T Connector (x 1) 6mm Tube (x 3m) Pipe Clip (x 5) Decal Pack

Lifeline Zero 2020 FIA 3 Liter Steel Electric System Designed for sedan racers who need 5 zones of protection and need to take some weight off their car, the Lifeline Zero 2020 FIA 3.0ltr Electric Fire Suppression System is electrically actuated, and has 3.0 Liter capacity of the new Zero 2020 AFFF agent. This Lifeline Zero 2020 FIA 3.0ltr Electric Fire Suppression System is complete and ready to install to protect you and your race car. Lifeline Zero 2020 FIA 3.0ltr Electric Fire Suppression System Details: Manufacturer: Lifeline Manufacturer part number: 106-001-012 Rating: FIA Technical List 16 approved EX.064.21 Bottle material: Aluminum Bottle size: 155mm diameter x 238mm length Discharge method: Electrical, 2 push buttons Lifeline Zero 2020 FIA 3.0ltr Electric Fire Suppression System Contents: Filled and FIA certified ready to install bottle: 1 Electrical power control pack: 1 Cockpit discharge switch: 1 External discharge switch: 1 Mount bracket and Straps: 2 8mm discharge tubing: 6 meters length Heat proof over braid for discharge tubing: 6 meters Electrical discharge control power pack: 1 Electrical discharge plug and lead assembly: 1 8mm Bulkhead Fitting for firewall to engine: 1 Discharge nozzles: 5 Discharge tubing T connectors: 4 Lifeline Zero 2020 systems are constructed using only the finest materials and are supplied complete with all of the components required for a professional installation. The Lifeline 106-001-012 system performs supremely well in engine fire tests, and thus has full compliance with MSA, FIA, SCCA, PCA, NASA, IMSA, SRO and SCCA requirements.Lifeline's range of FIA certified race car fire systems have been homologated by the FIA for use in International motorsport and has been awarded the homologation numbers EX.064.21. The FIA homologation requires that the systems be tested to the FIA standard for plumbed in fire systems. These tests were witnessed by the British Standards Institute and MSA. Lifeline electrically discharged race car systems are activated by pressing a strategically mounted momentary push button. Using a military specification actuator to detonate the extinguisher, the actuator extends a steel pin upon activation breaking a frangible seal in the neck of the cylinder and thus discharging the contents. All Lifeline electrical systems have their own independent power supply called a power pack that has facilities for checking the battery strength and circuit continuity as well as giving a visible indication that the system is armed. Lifeline fire systems are pressurized canisters and can be only shipped ground
