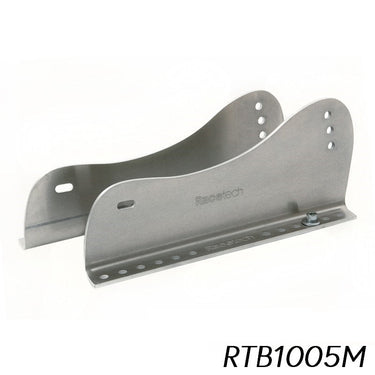

Racetech Aluminum Side Mounting Brackets RTB1005M Side-Mount Brackets: Racetech milled aluminum bracket set for side-mounting seats. 5mm thick 5083 aluminum alloy. Sold as a pair. Fit the following seat models: RT1000 RT4000W (discontinued) RT4000WX (discontinued) RTSaker (with modification) RTRoad RTRoadW (discontinued) RT4000WLB RT4000WXLB RT1000LBHG RTB1009M Side-Mount Brackets: Mill-finished 5mm 5083 aluminum alloy brackets for side-mounting seats. Five slots and five holes provide plenty of height and tilt adjustment. Sold as a pair. These brackets are suitable for use with the following seat Racetech models: RT4009, RT4009W RT4009HR, RT4009THR, RT4009WHR, RT4009WTHR RT4100, RT4100WT, RT4100HR, RT4100WTHR RT9009, RT9009HR RT4119HRW, RT4119THR, RT4119WHR, RT4119WTHR RT9119HR, RT9119THR, RT9119WTHR RT4129HRW, RT4129WHR, RT4129WTHR RT9129HRW, RT9129THR, RT9129WHR, RT9129WTHRL Hole Spacing (Seat): Nominal: 295mm Minimum: 290mm Maximum: 300mm

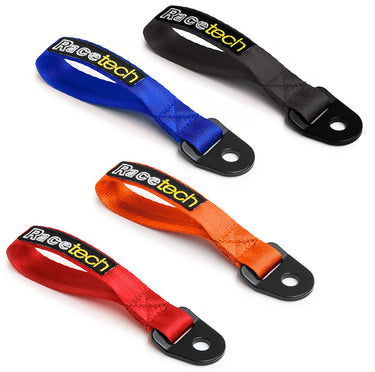

Racetech Door Pulls High-quality door pull strap mounts to an 11mm (7/16") bolt hole. Made from plyable webbing, approximately 180mm (7") long and 25mm (1") wide. We have found that these can also function well as grab handles or as keychains. Available in Red, Blue, Orange or Black with an embroidered Racetech logo. Actual colors may vary slightly from picture. Please note: Each purchase includes one door pull.

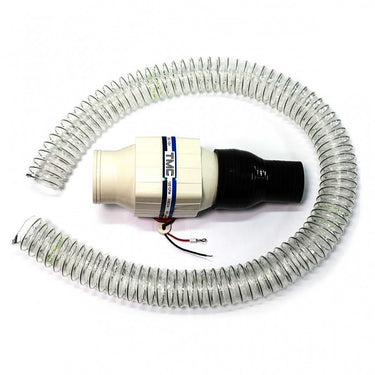

Racetech Ram Air Ducting Kit Now you can provide forced air induction to your Racetech 119 or 129 series race seat. Increase driver comfort by removing latent heat to the lower back. Especially useful in longer or enduro race events, this air-cooling maintains a level of comfort for the driver, enabling optimum performance and less heat stress and fatigue. KIT INCLUDES: 12V inline blower motor @122 CFM. Silicone reducer (76mm to 51mm). Four-foot high-temp duct hose. Two tie wraps. For maximum cooling performance, use with NACA duct and 3 intake hose.

Racetech RT1000 Racing Seat The RT1000 meets the demands of the motorsport enthusiast, with all the function but none of the frills. Weighing in at a lean 8.9kg (total) and homologated to FIA 8855-1999 standards, grab a couple today and get racing. Any color as long as its black! TECHNICAL INFO: Gel-coated in gloss black. Seat covered in black fire-retardant nylon fabric with Spacer mesh through the torso. FIA homologation: 8855-1999 Shell constructed of fiberglass composite. Shell weighs approximately 6.6kg (14.5 lbs.) without padding. Standard sized. Not back-mount compatible.

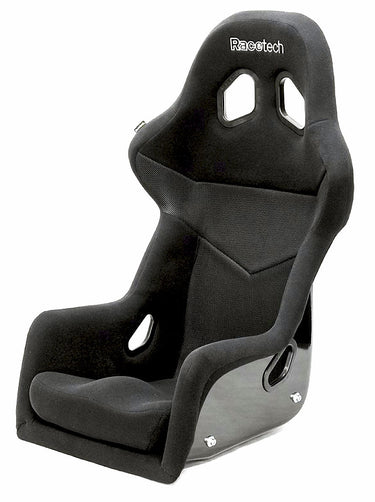

Racetech RT4100 Racing Seat Announcing the all-new Racetech 4100 Series! The RT4100 is a standard-sized fiberglass race seat. Racetech focused on achieving a lightweight seat shell with optimized geometry, straddling the line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. Their patented back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the rollcage at shoulder level. Large harness guides and a removable molded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides and pronounced thigh support round off the features of this accomplished motorsport seat. OPTIONS: The RT4100WT is 60mm taller and 40mm wider than the standard RT4100. The RT4100HR and RT4100WTHR include head restraints. The 4100 Series seats use Racetech RTB1009M alloy side mounting brackets (can be added separately). TECHNICAL INFO: Gel-coat in gloss black Seat covered is black fire-retardant nylon fabric with Spacer mesh through the torso FIA homologation 8855-1999 Shell constructed of fiberglass composite Shell weight from 5.7kg (12.5 lbs) Sizes Standard or WT (Wide & Tall) Back-mount compatible

Racetech RT4100 Racing Seat 2028 Expiry  Announcing the all-new Racetech 4100 Series! The RT4100 is a standard-sized fiberglass race seat. Racetech focused on achieving a lightweight seat shell with optimized geometry, straddling the line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. Their patented back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the rollcage at shoulder level. Large harness guides and a removable molded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides and pronounced thigh support round off the features of this accomplished motorsport seat. OPTIONS: The RT4100WT is 60mm taller and 40mm wider than the standard RT4100. The RT4100HR and RT4100WTHR include head restraints. The 4100 Series seats use Racetech RTB1009M alloy side mounting brackets (can be added separately). TECHNICAL INFO: Gel-coat in gloss black Seat covered is black fire-retardant nylon fabric with Spacer mesh through the torso FIA homologation 8855-1999 Shell constructed of fiberglass composite Shell weight from 5.7kg (12.5 lbs) Sizes Standard or WT (Wide & Tall) Back-mount compatible

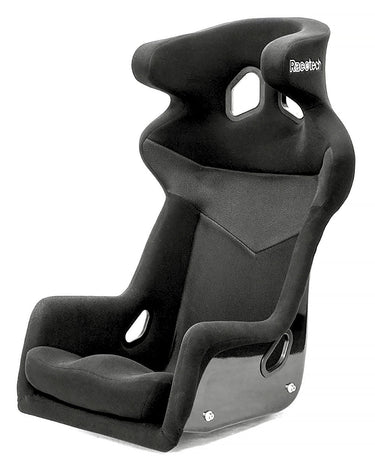

Racetech RT4100HR Racing Seat Announcing the all new Racetech 4100 Series! The RT4100HR is a standard-sized fiberglass race seat equipped with head restraint wings for enhanced safety. Racetech focused on achieving a lightweight seat shell with optimized geometry, straddling the line between a seat wide enough in the shoulders to suit an athletic build, but narrow enough to fit in most cockpits. Racetech's patented back-mount technology has migrated down from the 119 and 129-Series, giving you the option of fixing the seat to your roll cage at shoulder level. Large harness guides and a removable molded base cushion allow a range of drivers of varying heights to fit comfortably. Breathable Spacer fabric, parallel sides, and pronounced thigh support round out the features of this accomplished motorsport seat. For the larger driver, the Racetech RT4100WTHR is 60mm taller and 40mm wider than the Standard size. For those wanting a seat without head restraints, check out the Racetech RT4100 and RT4100WT. All 4100-Series seats use Racetech RTB1009M alloy side mounting brackets. Racetech RT4100HR Racing Seat FEATURES: Gel-coat in gloss black. Seat cover is black fire-retardant nylon fabric with Spacer mesh through the torso. FIA homologation 8855-1999. Shell construction in fiberglass composite. Shell weight from 17.85 lbs. (6.1 kg). Back-mount compatible. Racetech RT4100HR Racing Seat SIZES: Standard (HR) Wide & Tall (WTHR)

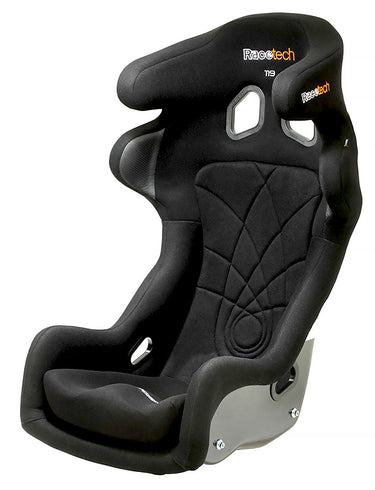

Racetech RT4119 Racing Seat 2028 Expiry Building upon the successful 129-Series, the Racetech RT4119 offers the same ergonomic form and incredible features in a lighter and more affordable package. The RT4119 is used by many professional teams at both the national and international levels. There are four sizes available: Standard, Wide, Tall, and Wide & Tall. Customize your seat further by adding low-profile base cushions, or you can add side cushions for support in the thigh area. The 119-Series seats are compliant with FIA 8855-1999 standards. Racetech RT4119HRW Mounting: Racetech RTB1009M aluminum brackets (side mount to car floor) Optional: RTB2115B bracket + RTB2005C clamps (back mount to roll cage or roll bar) To comply with FIA 8855-1999, all RT4119 racing seats (except the RT4119HRW) must be back-mounted to the roll cage at shoulder level. Back-mounting can be achieved using parts RTB2115B and RTB2005C, see instructions here. Back-mounting improves seat strength and stability during an impact, increases driver feel and reduces driver fatigue. Check out this video for more great info. Racetech RT4119HRW Racing Seat Details: FIA 8855-1999 homologation Shell construction of Glass Reinforced Plastic (GRP) composite Shell weight from 16.8 lbs. (7.6 kg) Large harness guides Air ducting can be vented to the driver's lower back Back-mount compatible Racetech RT4119 Racing Seat Size Options: Standard (HRW) Tall (THR) Wide (WHR) Wide & Tall (WTHR)

  Racetech RT4119HRW Racing Seat   Building upon the successful 129-Series, the Racetech RT4119 racing seat offers the same ergonomic form and incredible features in a lighter and more affordable package. The RT4119 race seat is used by many professional teams at both the national and international levels. There are four sizes available for teh Racetech RT4119 race seat: Standard, Wide, Tall, and Wide & Tall. Customize your seat further by adding low-profile base cushions, or you can add side cushions for support in the thigh area. The 119-Series seats are compliant with FIA 8855-1999 standards1.   Racetech RT4119HRW Racing Seat BRACKET AND MOUNTING OPTIONS:   Side mount to the floor using Racetech RTB1009M 5mm aluminium brackets. Back mount using the RTB2115B bracket in conjunction with RTB2005C clamps. The RTB2115B is a 5mm aluminium bracket that bolts directly to the shoulder beam of the seat. The RTB2005C clamps bolt to the RTB2115B and come in three variants: 11/2 inch (38mm), 15/8 inch (41mm), or 13/4 inch (45mm) ID to suit the roll cage tubing diameter in your vehicle.   Note 1: In order to comply with FIA 8855-1999, Racetech 119-Series seats (except the RT4119HRW) must be back-mounted to the roll cage at shoulder level. Back-mounting improves seat strength and stability during an impact, increases driver feel, and reduces driver fatigue.   Racetech RT4119HRW Racing Seat FEATURES:   FIA homologation complies with FIA 8855-1999 regulations. Shell construction of composite (GRP) Shell weight from 16.8 lbs. (7.6 kg). Large harness guides. Air ducting vented to the driver's lower back. Back-mount compatible. Racetech RT4119HRW Racing Seat SIZING: Standard (HRW) Wide (WHR) Tall (THR) Wide & Tall (WTHR)

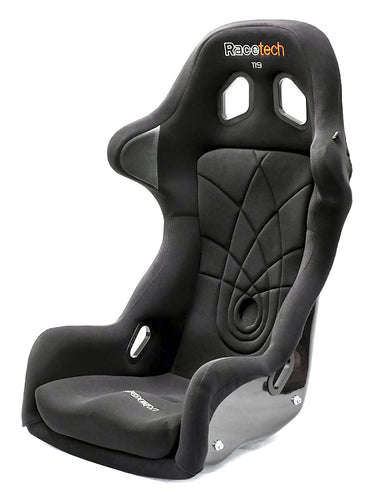

      Racetech RT4119W Racing Seat Racetech took their most popular seat and gave it a chop! The Racetech RT4119W (Wide) and Racetech RT4119WT (Wide & Tall) seats are based on the existing RT4119WHR and RT4119WTHR, but with the head restraints removed for improved visibility and access in track day type vehicles. This seat retains Racetech's unique, patented back mount design to give the driver ultimate support and feel for the chassis not available in basic floor-mounted seats. Customize your seat further with low base cushions or add side cushions for support in the thigh area. These Racetech 119 seats without head restraints are not FIA homologated. These seats do not include an air ducting spigot, but when it gets hot in your Porsche or Pro Touring Camaro, you're just going to turn on your air-conditioning, right? Ideal for HPDE/DE track cars, off-road desert trucks & outlaw drag cars when drivers can't use a head restraint seat. Racetech RT4119W Racing Seat Brackets and Mounting: Side mount to the floor using Racetech RTB1009M 5mm aluminium brackets (please tick the box above when ordering). Back mount using RTB2115B in conjunction with RTB2005C. The RTB2115B is a 5mm aluminum bracket that bolts directly to the shoulder beam of the seat. The RTB2005C clamps bolt to the RTB2115B (once holes have been drilled) and come in three variants: 1-1/2" (38mm), 1-5/8" (41mm) or 1-3/4" (45mm) ID to suit the rollcage tube diameter in your vehicle. Please select your preferred clamp diameter above when ordering. Racetech RT4119W Racing Seat TECHNICAL INFO:   FIA Homologation: N/A Gel-coated in gloss black Seat covered in black fire-retardant fabric Wear patches of black perforated leather Shell construction in composite (GRP) Shell weight from 7.0kg (15.5 lbs) Sizes W (Wide) or WT (Wide & Tall) Air Ducting: N/A Back-mount compatible

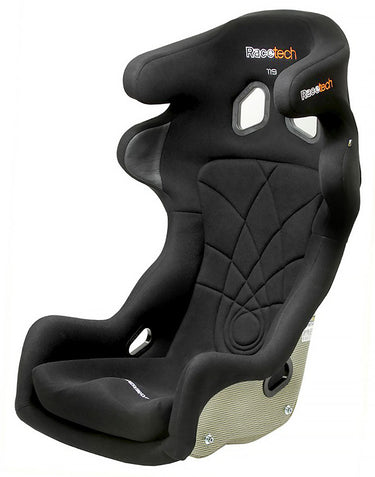

Racetech RT9119 Lightweight Racing Seat Building upon the successful 129 series, the Racetech RT9119 racing seat offers the same ergonomic form and incredible features in a lighter and more protective package. Used by many professional teams at both the national and international levels, this is the lightweight version using a precise combination of carbon and Kevlar hybrid weave to achieve a shell weights as low as 9.9 lbs. (4.5kg). Four sizes are available: Standard, Wide, Tall, and Wide & Tall. You can further customize your seat with low-profile base cushions, or by adding side cushions for support in the thigh area. Racetech 119-Series seats (except the WHR) are compliant with FIA 8855-1999 standards1. Racetech RT9119 Lightweight Racing Seat BRACKETS AND MOUNTING OPTIONS: Side mount to the floor using the Racetech RTB1009M 5mm aluminum brackets (available in the drop-down above). Back mount using the RTB2115B bracket in conjunction with the RTB2005C clamps. The RTB2115B is a 5mm aluminum bracket that bolts directly to the shoulder beam of the seat. The RTB2005C clamps bolt to the RTB2115B and come in three variants: 11/2 inch (38mm), 15/8 inch (41mm), or 13/4 inch (45mm) ID to suit your roll cage tubing diameter. Note 1: In order to comply with FIA 8855-1999, Racetech 119-Series seats must be back-mounted to the roll cage at shoulder level. Back-mounting improves seat strength and stability during an impact, increases driver feel, and reduces driver fatigue. Racetech RT9119 Lightweight Racing Seat FEATURES: Gel-coat cear self-finish. Seat cover in black fire-retardant fabric. Wear patches black perforated leather. FIA homologation FIA 8855-1999 approved (except RT9119WHR). Shell constructed of Kevlar/carbon. Shell weight from 9.9l bs. (4.5 kg). Integrated air ducting is vented to the driver's lower back. Back-mount compatible. Racetech RT9119 Lightweight Racing Seat SIZES: Standard (HRW) Wide (WHR) Tall (THR) Wide & Tall (WTHR)

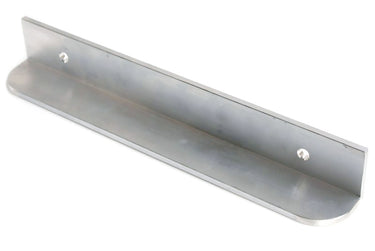

Racetech RTB1006B Seat Back Brace Racetech RTB1006B (standard size) and RTB1006BW (wide size) 6mm aluminium brackets for back-mounting seats. To meet FIA 8862-2009, one of these brackets must be used with Racetech 129-Series seats to attach the seat to the roll cage at shoulder height. Standard size (RTB1006B) compatible with: RT4129HRW RT9129HRW RT9129THR Wide size (RTB1006BW) compatible with: RT4129WTHR RT4129WHR RT9129WHR RT9129WTHR

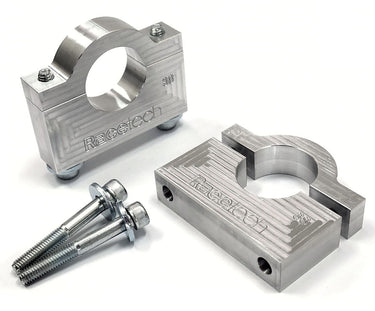

Racetech RTB2005C Seat Back Brace Clamps Racetech RTB2005C aluminium clamps for back-mounting seats. Precision cut from a 20mm-thick 5083 alloy sheet. Sold as a pair, these clamps fix around a roll cage tube and bolt to the RTB2115B bracket. This allows you to effectively back-mount a Racetech 119-Series racing seat to the chassis/roll cage at shoulder level. Supplied with two M8 bolts and two flat washers. AVAILABLE SIZES: 11/2 inch (38.1mm) 15/8 inch (41.3mm) 13/4 inch (44.5mm)

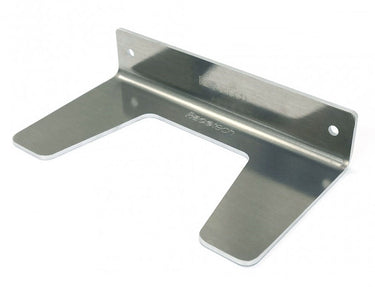

Racetech RTB2115B Seat Back Brace The Racetech RTB2115B bracket for back-mounting seats is made from 5mm 5083 aluminium. This bracket bolts to the shoulder beam of Racetech 119-Series racing seats and works in conjunction with RTB2005C clamps. This allows you to fix the seat to a lateral/diagonal roll cage tube. Requires four holes to be drilled to bolt on the clamps once you have your racing seat set-up in the optimum driving position. COMPATIBLE RACETECH RACING SEATS: RT4119HRW RT4119THR RT4119WHR RT4119WTHR RT9119HR RT9119THR RT9119WHR RT9119WTHR

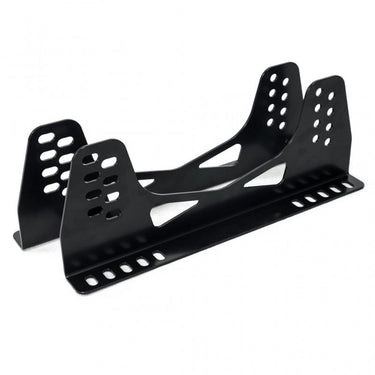

Racetech Steel Side Mounting Brackets Racetech RTB2009S satin black powder coated 3mm steel brackets for side mounting seats. Sold as a pair. Alongside the Racetech 4100-Series seats, they have developed a classy but affordable new bracket set. A staggered hole-and-slot pattern allows fine adjustments for the optimal seating position. Slots in the foot of each bracket also allow a little more lateral tolerance during installation. Use With These Racetech Seats: RT4009, RT4009W RT4009HR, RT4009WHR, RT4009WTHR RT4100, RT4100WT, RT4100HR, RT4100WTHR RT4119HRW, RT4119THR, RT4119WHR, RT4119WTHR RT9119HRW, RT9119THR, RT9119WHR, RT9119WTHR Hole Spacing (Seat): Nominal: 295mm Minimum: 290mm Maximum: 300mm

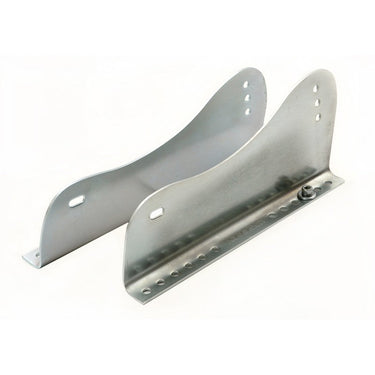

Racetech Zinc-Plated Steel Side Mount Brackets Racetech zinc-plated, 3mm steel brackets for side-mounting seats. Sold as a pair. These brackets are suitable for use with the following seat models: RT1000 RT4000W (discontinued) RT4000WX (discontinued) RTSaker (with modification) RTRoad RTRoadW (discontinued) RT4000WLB RT4000WXLB RT1000LBHG
