Antigravity 16V Lithium Charger 5A | Fast LiFePO4 Charging 1 "a"

$89.99

Antigravity 16V Lithium Charger 5A | Fast LiFePO4 Charging

$89.99

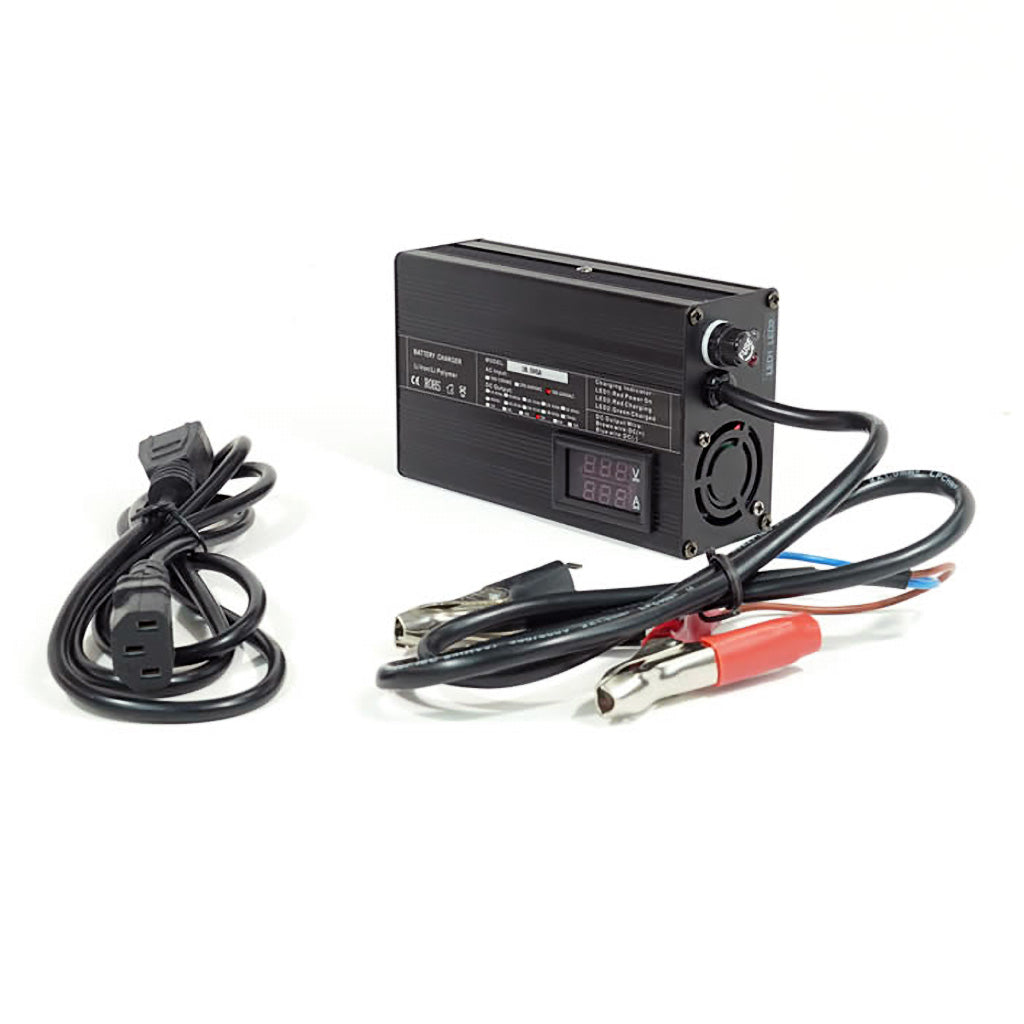

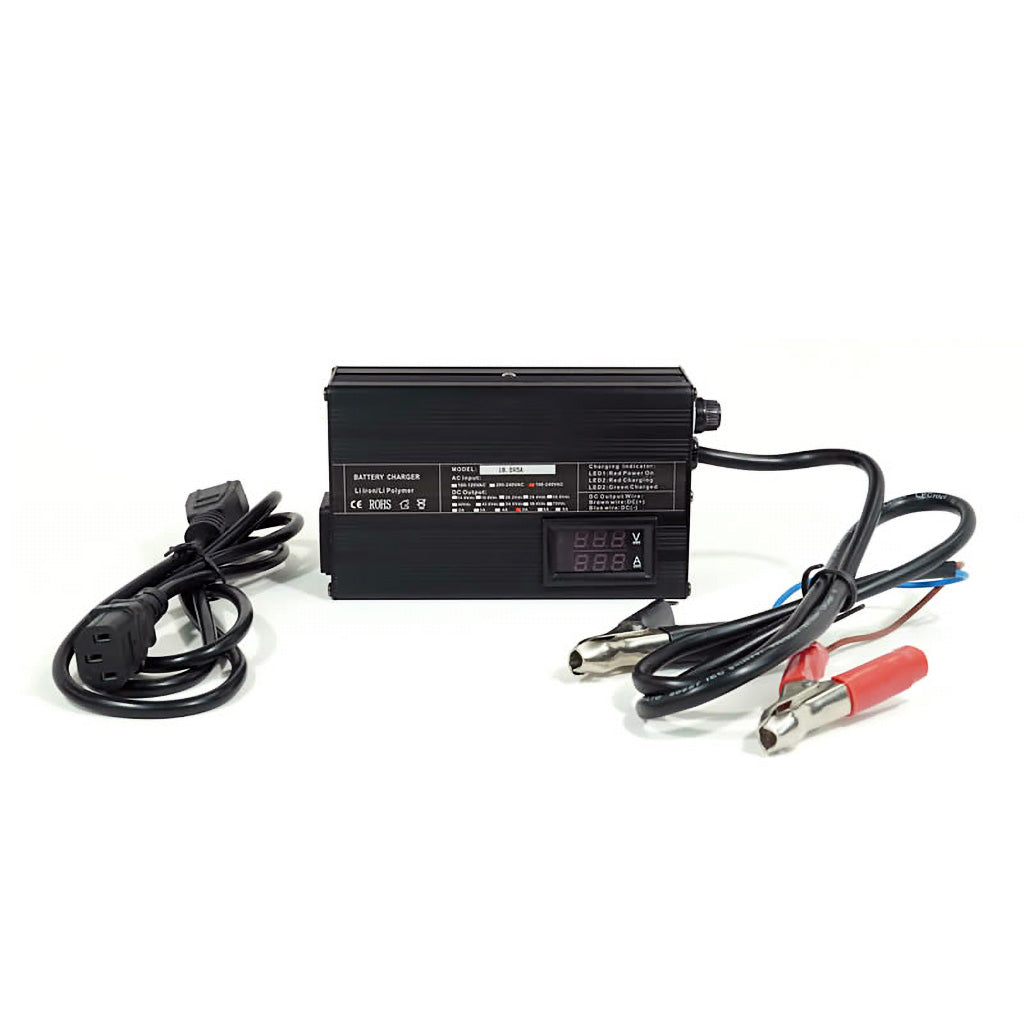

Antigravity 16V Lithium Charger — 5A

Fast, reliable 16-volt LiFePO4 charging with built-in protections and clear LED status.

This solid, race-ready 5-amp 16-volt lithium charger is purpose-built for Antigravity 16V LiFePO4 (LFP) batteries including the VTX20 and the new H6-30-16 race car/truck battery. It also works with most other brands of 16-volt LiFePO4 motorsports batteries. Universal AC input (110–230V) means it’s track-bag friendly worldwide—just add a plug adapter outside the U.S.

  • Correct chemistry, correct voltage: engineered specifically for 16V LiFePO4 batteries.
  • Fast 5A charge rate: quick turnarounds between rounds or sessions.
  • Multiple safety protections: short-circuit, over-voltage, reverse-polarity, over-temperature.
  • Clear status at a glance: dual LEDs plus a screen showing charging voltage and current.
  • Worldwide ready: 110/220V AC input (50–60 Hz) for shop or paddock power.
  • Includes clamp leads: attached positive/negative clamps for easy hookup.
Important: Use this charger only with 16-volt LiFePO4 (LFP) batteries. Never use a 16V charger on a 12V battery, and never use a 12V charger on a 16V battery.

Features

  • Advanced high-frequency switching mode power supply
  • DC output isolated from AC input; charging parameters remain stable across input variations
  • Fully automatic CC → CV charging profile tailored for LiFePO4
  • LED1 (Power) and LED2 (Charging/Charged) indicators
  • On-unit screen shows live charging voltage and current
  • Protections: short-circuit, over-voltage, over-temperature, reverse-polarity
  • Efficiency > 85% with forced-air cooling
  • 100% full-load burn-in tested
  • Includes attached clamp leads for easy connection

Specifications

Antigravity 16V Lithium Charger 5A — Specs
Model / SKU AG-BC-16V (16-Volt LiFePO4 Charger)
Battery Compatibility 16V LiFePO4 (LFP) only — e.g., Antigravity VTX20, H6-30-16; also works with most other brands of 16V LiFePO4 motorsports batteries
Charge Rate 5 A (Constant-Current / Constant-Voltage profile)
Input Voltage 110–230 VAC, 50–60 Hz (worldwide use with plug adapter as needed)
Indicators LED1 (Power), LED2 (Charging/Charged), on-unit screen shows V/A
Safety Protections Short-circuit, over-voltage, over-temperature, reverse-polarity
Efficiency / Cooling > 85% efficiency; fan-forced ventilation
Included Leads Attached clamp leads (Red = +, Black = –)

Operation

  1. Plug the charger into a wall outlet or power source (LED1 turns red to confirm AC power).
  2. Connect clamps to the battery with correct polarity:
    Red clamp to Positive (+), Black clamp to Negative (–).
  3. LED2 indicates charging status: Green confirms connection; flashing Red/Green during charging; solid Green when fully charged.
  4. Monitor voltage/current on the screen as needed. Disconnect when finished.

Compatibility

  • Antigravity: VTX20 (16V), H6-30-16 (16V) — and other Antigravity 16V LiFePO4 models
  • Other Brands: most 16V LiFePO4 vehicle/motorsports batteries (check manufacturer specs)

What’s in the Box

  • Antigravity 16V Lithium Charger — 5A
  • Attached positive/negative clamp leads
  • Quick-start instructions

FAQs

Can I use this on a 12V battery?
No. This charger is for 16-volt LiFePO4 batteries only. Do not mix voltages.

Will it work outside the U.S.?
Yes. It accepts 110–230V AC (50–60 Hz). Use a simple plug adapter where required.

Does it maintain batteries between events?
Yes. The CC/CV profile and clear status indicators make it suitable for charging and periodic top-offs on 16V LiFePO4 chemistry.

Need fitment or setup help? Our motorsports team can advise on the right charging regimen for your build.
Competition Motorsport | sales@competitionmotorsport.com | (844) 438-7244
