C6 Z06/Grand Sport

CARBOTECH BRAKE PADS Carbotech Brake Pads For Corvette C6 Z06 & GS Front with Single Backing Plate in AX6, XP8, XP10, XP12, XP20, XP24 and RP2 compounds. How To Properly Bed In Carbotech Racing Brake Pads Manufacturer: Carbotech Manufacturer Part Number: CT1185-S [img-12107-left-large_default] BRAKE COMPOUNDS Carbotechâ 1521â The Carbotechâ 1521â is our high performance street compound. The 1521â compound is known for its release and modulation, along with unmatched rotor friendliness. 1521â is also a very low dusting and low noise compound with an excellent initial bite. This compound's excellent linear torque production provides incredible braking force without ABS intervention. Carbotechâ 1521â operating range starts out at ambient and goes up to 800 F (426 C+). 1521â is suitable for ALL street cars, perfect for your tow vehicle or fleet vehicle. Carbotechâ 1521â is NOT recommended for ANY track use. Carbotechâ AX6â The AX6â is specifically engineered for Autocross applications. A high torque brake compound delivering reliable and consistent performance over a very wide operating temperature range of 50 F to 1000 F + (10 C to 537 C+). The advanced compound matrix provides an excellent initial bite, high coefficient of friction at lower temperatures along with very progressive brake modulation and release characteristics. Many drivers use the AX6â for street driving as well, even though Carbotechâ doesn't recommend street driving with AX6â due to possible elevated levels of dust and noise. AX6â is NOT recommended as a race compound in most applications. Carbotechâ XP8â A high torque brake compound with a wide operating temperature range of 200 F-1250 F+ (93 C to 676 C+). Carbotechâ XP8â is the first of our racing compounds. Good initial bite at race temperatures, high coefficient of friction, excellent modulation and release characteristics. Extremely high fade resistance and very rotor friendly. Perfect for track day use with any tire and can still be driven safely to and from the track. Carbotechâ does NOT recommended XP8â as a daily driven street pad due to elevated levels of dust and noise. Carbotechâ XP8â is a great compound on the front & rear of most open wheel and sports racers. Carbotechâ XP10â When Carbotechâ unleashed the XP10â to the general public it immediately gathered multiple regional, divisional, and national championships. The XP10â has a very strong initial bite with a coefficient of friction and rotor friendliness unmatched in the industry. Fade resistance is in excess of 1475 F (801 C). XP10â still maintains the highly praised release, excellent modulation and rotor friendliness that have made all Carbotechâ compounds so successful. Carbotechâ XP10â is not recommended as a daily-driven street pad due to possible elevated levels of dust and noise. Carbotechâ XP12â Another highly successful XPâ series compound with an excellent initial bite, torque and fade resistance over and above the XP10â compound. XP12â has temperature range of 250 F to 1850 F+ (121 C to 1010 C+). The XP12â has that excellent Carbotechâ release and modulation that has made all other Carbotechâ compounds so successful. The XP12â is more rotor aggressive than XP10â , but compared to the competition the XP12â is still very rotor friendly. XP12â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise. Carbotechâ XP20â The latest iteration of the highly successful XPâ series of compounds. XP20â is a step up from the highly successful XP16â compound. With an extremely aggressive initial bite, linear torque curve and excellent fade resistance the XP20â is another major step in progression of the highly successful XPâ series line of compounds from Carbotechâ . XP20â has a temperature range of 275 F to 2000 F+ (135 C to 1093 C+). Carbotechâ XP20â maintains our tradition of having the outstanding release and modulation that has made all other Carbotechâ compounds so successful. Carbotechâ XP20â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise. Carbotechâ XP24â XP24â is the pinnacle compound of the extremely successful XPâ Series of compounds engineered by Carbotechâ . This compound is based on the same fundamentals that exist in all other Carbotechâ formulations. XP24â has even more initial bite, more overall bite, and more torque along with the most linear torque curve we have ever offered. The thermal characteristics are of the highest Carbotechâ offers along with one of the highest coefficient of friction ratings offered by anyone in the braking industry. This compound is the longest wearing compound Carbotechâ offers as it was originally engineered for endurance applications at the highest pro racing levels. This revolutionary new compound has been extremely successful with open wheel, closed wheel, sprint and endurance applications. XP24â has a temperature range of 400 F to 2000 F+ (204 C to 1093 C+). Carbotechâ XP24â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise along with the necessary heat required to work properly. Carbotechâ RP2â The RP2â compound was engineered for endurance racing based on our highly successful XPâ Series formulations. RP2â has strong initial bite, a little less modulation than our XP12â , but still maintains the rotor friendliness of our XPâ series compounds. RP2â has great fade resistance with a temperature range of 250 F to 1450 F+ (121 C to 787 C). RP2â is as rotor friendly as our XPâ series compounds. Carbotechâ RP2â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise. Carbotechâ 913 Kelated Metallicâ A D.O.T.-approved high-performance compound for brake shoes on high performance street vehicles and race cars. Carbotechâ Kelated Metallic (CKM) achieves a very high coefficient of friction (approx. 0.48 to 0.50) by taking advantage of a chemical reaction within the friction mass, which creates a tri-alloy metallic film at the liner/drum interface when subjected to heat and pressure. Designed to overcome the shortcomings of other liner materials, CKM is a very versatile and provides excellent braking performance in a wide variety of applications. Excellent wear characteristics and a very high resistance to lock-up under hard braking. Optimal recommended operating temperature range is from ambient to 750 F. [img-12107-left-large_default]

CARBOTECH BRAKE PADS Carbotech Brake Pads For Corvette C6 Z06 Rear with Single Backing Plate in AX6, XP8, XP10, XP12, XP20, XP24 and RP2 compounds. How To Properly Bed In Carbotech Racing Brake Pads Manufacturer: Carbotech Manufacturer Part Number: CT1185R-S [img-12108-left-large_default] BRAKE COMPOUNDS Carbotechâ 1521â The Carbotechâ 1521â is our high performance street compound. The 1521â compound is known for its release and modulation, along with unmatched rotor friendliness. 1521â is also a very low dusting and low noise compound with an excellent initial bite. This compound's excellent linear torque production provides incredible braking force without ABS intervention. Carbotechâ 1521â operating range starts out at ambient and goes up to 800 F (426 C+). 1521â is suitable for ALL street cars, perfect for your tow vehicle or fleet vehicle. Carbotechâ 1521â is NOT recommended for ANY track use. Carbotechâ AX6â The AX6â is specifically engineered for Autocross applications. A high torque brake compound delivering reliable and consistent performance over a very wide operating temperature range of 50 F to 1000 F + (10 C to 537 C+). The advanced compound matrix provides an excellent initial bite, high coefficient of friction at lower temperatures along with very progressive brake modulation and release characteristics. Many drivers use the AX6â for street driving as well, even though Carbotechâ doesn't recommend street driving with AX6â due to possible elevated levels of dust and noise. AX6â is NOT recommended as a race compound in most applications. Carbotechâ XP8â A high torque brake compound with a wide operating temperature range of 200 F-1250 F+ (93 C to 676 C+). Carbotechâ XP8â is the first of our racing compounds. Good initial bite at race temperatures, high coefficient of friction, excellent modulation and release characteristics. Extremely high fade resistance and very rotor friendly. Perfect for track day use with any tire and can still be driven safely to and from the track. Carbotechâ does NOT recommended XP8â as a daily driven street pad due to elevated levels of dust and noise. Carbotechâ XP8â is a great compound on the front & rear of most open wheel and sports racers. Carbotechâ XP10â When Carbotechâ unleashed the XP10â to the general public it immediately gathered multiple regional, divisional, and national championships. The XP10â has a very strong initial bite with a coefficient of friction and rotor friendliness unmatched in the industry. Fade resistance is in excess of 1475 F (801 C). XP10â still maintains the highly praised release, excellent modulation and rotor friendliness that have made all Carbotechâ compounds so successful. Carbotechâ XP10â is not recommended as a daily-driven street pad due to possible elevated levels of dust and noise. Carbotechâ XP12â Another highly successful XPâ series compound with an excellent initial bite, torque and fade resistance over and above the XP10â compound. XP12â has temperature range of 250 F to 1850 F+ (121 C to 1010 C+). The XP12â has that excellent Carbotechâ release and modulation that has made all other Carbotechâ compounds so successful. The XP12â is more rotor aggressive than XP10â , but compared to the competition the XP12â is still very rotor friendly. XP12â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise. Carbotechâ XP20â The latest iteration of the highly successful XPâ series of compounds. XP20â is a step up from the highly successful XP16â compound. With an extremely aggressive initial bite, linear torque curve and excellent fade resistance the XP20â is another major step in progression of the highly successful XPâ series line of compounds from Carbotechâ . XP20â has a temperature range of 275 F to 2000 F+ (135 C to 1093 C+). Carbotechâ XP20â maintains our tradition of having the outstanding release and modulation that has made all other Carbotechâ compounds so successful. Carbotechâ XP20â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise. Carbotechâ XP24â XP24â is the pinnacle compound of the extremely successful XPâ Series of compounds engineered by Carbotechâ . This compound is based on the same fundamentals that exist in all other Carbotechâ formulations. XP24â has even more initial bite, more overall bite, and more torque along with the most linear torque curve we have ever offered. The thermal characteristics are of the highest Carbotechâ offers along with one of the highest coefficient of friction ratings offered by anyone in the braking industry. This compound is the longest wearing compound Carbotechâ offers as it was originally engineered for endurance applications at the highest pro racing levels. This revolutionary new compound has been extremely successful with open wheel, closed wheel, sprint and endurance applications. XP24â has a temperature range of 400 F to 2000 F+ (204 C to 1093 C+). Carbotechâ XP24â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise along with the necessary heat required to work properly. Carbotechâ RP2â The RP2â compound was engineered for endurance racing based on our highly successful XPâ Series formulations. RP2â has strong initial bite, a little less modulation than our XP12â , but still maintains the rotor friendliness of our XPâ series compounds. RP2â has great fade resistance with a temperature range of 250 F to 1450 F+ (121 C to 787 C). RP2â is as rotor friendly as our XPâ series compounds. Carbotechâ RP2â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise. Carbotechâ 913 Kelated Metallicâ A D.O.T.-approved high-performance compound for brake shoes on high performance street vehicles and race cars. Carbotechâ Kelated Metallic (CKM) achieves a very high coefficient of friction (approx. 0.48 to 0.50) by taking advantage of a chemical reaction within the friction mass, which creates a tri-alloy metallic film at the liner/drum interface when subjected to heat and pressure. Designed to overcome the shortcomings of other liner materials, CKM is a very versatile and provides excellent braking performance in a wide variety of applications. Excellent wear characteristics and a very high resistance to lock-up under hard braking. Optimal recommended operating temperature range is from ambient to 750 F. [img-12108-left-large_default]

Real-Life High Boiling Point Without The Real High Price RF1 Racing Brake Fluid from CMS Performance is a fully-synthetic DOT4 brake fluid formulated to provide extraordinary performance under the most demanding high-temperature racing and track-day conditions. With a dry boiling point of 328º C (622º F), RF1 exceeds all DOT3 & DOT4 requirements and is compatible with all DOT 3, 4, and 5.1 fluids. (Not compatible with DOT5 or mineral-based brake fluids.) On the race track, brake systems operate at very high sustained temperatures, and there is perhaps no single safety system more important in racing than your brakes. No single part of that system is more critical than brake fluid. At CMS Performance, we got tired of (and a little nervous) using "racing" brake fluid at the race track that didn't live up to its claimed performance when things got hot. So we did something about it. Manufactured in partnership with Orthene, the brake fluid supplier to many teams in Formula 1, WEC, and other professional series, RF1 Racing Brake Fluid was formulated to maintain consistent viscosity, lubricity, and compressibility at the extreme system temperatures and line pressures found in racing and track days. The bottom line is this: you can spend more on brake fluid, but you can't buy higher-performance than RF1 Racing Brake Fluid. RF1 Racing Brake Fluid Details: Typical dry boiling point: 328º C (622º F) Typical wet boiling point: 204º C (399º F) Exceeds DOT3 & DOT4 standards Bottle size: 500 ml (16.9 fl oz) Click Here for Product MSDS Sheet A Word About Flushing Brake Fluid All brake fluid degrades over time (not mileage), attracting water as it ages, which, at high brake temperatures, can lead to fluid boil and brake fade or failure. That's why the "wet" (aged) boiling point of any brake fluid is substantially lower than the "dry" (new) boiling point. To maintain maximum braking performance, Competition Motorsport strongly suggests replacing your brake fluid before every track event, but at least every three months if you're consistently racing and/or driving at track days. It's cheap insurance against learning about brake fade the hard way!

Girodisc Brake Pad Spreader This indispensable tool is used by race teams, shops, and enthusiasts alike who have high performance four- and six-piston calipers. The spreader is designed to spread brake pads and pistons in four- and six-piston calipers to facilitate quick replacement of pads and/or rotors in a shop or racing environment.No more screwdrivers, pliers, hammers, or C-clamps! This tool will retract the pistons evenly and all the way back into their bores with one squeeze of the levers. The Girodisc spreader was designed around popular four-piston and six-piston calipers from Brembo, AP Racing, Alcon, and other performance calipers in racing and road use. To help fit in any caliper, the amount of throw is adjustable.Insert the spreading plates one way for wider six-piston calipers, then turn the spreader 90o and use the plate sides for four-piston calipers.The Girodisc Pad Spreader is made from heavy-gauge steel and is powder-coated for durability. The slider is cadmium-plated, and nylon pivot bushings ensure smooth action. The Girodisc Pad Spreader will quickly become an invaluable tool for any race team, shop, or enthusiast who changes pads and rotors with any frequency.

Ferodo FRP3094H-N DS2500 Compound Fitting the C6 Corvette the Ferodo FRP3094H in the DS2500 compound is one of the best street/track pads available. No need to change to track pads and then to street pads every weekend. Now enjoy linear high-torque braking on the best of mountain rides and mild track days. Ferodo FRP3094H-N Details: Manufacturer: Ferodo Manufacturer part number: FRP3094H-N Pads in box: 4 Primary Use: Street Performance & Light Track Application: All vehicle types Average Coefficient of Friction: 0.41µ Temperature Range C: 0 - 500 C Temperature Range F: 32 - 932 F Ferodo DS2500 Brake Compound Details:The Ferodo DS2500 is the best hybrid street and track day pad available. Designed for driving on the street, mountain runs and light track day with a stable average friction coefficient of 0,41 over a wide working temperature range of 32 to 932 F, (0 to 500 C)Featuring a moderately high initial bite and the solid fade resistance of a trackpad, but with relatively low dust and noise levels of a street pad. When the Ferodo DS2500 is used as a street pad, it can produce some squeal on most vehicle platforms. The most common use of the Ferodo DS2500 is mountain runs, autocross, and some light track duty on street tires in colder temperatures.When used on track on heavy (3,000+ lbs.+) track cars with high horsepower and R Compound tires, the DS2500 pad wear rates tend to be considerably higher vs. Ferodo Racing's other compounds. Do not expect to win the WRL GTU class on Ferodo DS2500 brake pads, but it is the perfect dual purpose street and light track day pad. Ferodo FRP3094H-N Fitment: C6 Corvette Padlets, one order has 4 individual pads. A complete C6 Z06 will take 20 padlets (5 boxes). Front axle takes 12 padlets (6 piston calipers x 2) Rear axle takes 8 padlets (4 piston calipers x 2) 2006 Chevrolet Corvette Z06 2007 Chevrolet Corvette Z06 2008 Chevrolet Corvette Z06 2009 Chevrolet Corvette Z06 2010 Chevrolet Corvette Grand Sport 2011 Chevrolet Corvette Grand Sport 2011 Chevrolet Corvette Z06 iron 2013 Chevrolet Corvette Grand Sport 2013 Chevrolet Corvette Z06 iron & 427 2012 Chevrolet Corvette Grand Sport 2012 Chevrolet Corvette Z06 iron & 427 2010 Chevrolet Corvette Z06 Ferodo FRP3094H-N Cross Reference: Pagid: U8240 We believe the above information is correct, but have not checked every brand fitment. Please verify the above part numbers before purchase.

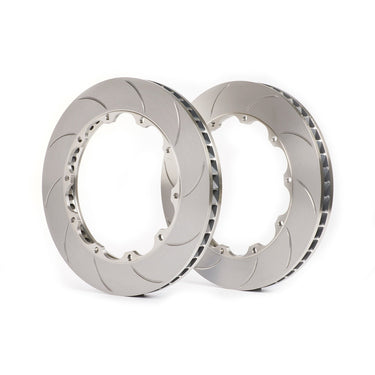

FITS: CHEVROLET CORVETTE WITH Z06 PACKAGE (2023-) REPLACEMENT ROTOR DISCS ONLY, DOES NOT INCLUDE ALUMINUM HAT. Discovery Parts is an Authorized dealer for GiroDisc products and we are one of the largest stocking dealers in the country.  We ship most products same or next business day to ensure we meet your delivery deadline. The GiroDisc replacement rotor system is a direct rotor disc replacement for the Giro Disc 2-piece hat and rotor and no modifications are necessary.   The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by GiroDisc in the USA to our own specifications and are cadmium plated for corrosion resistance.  The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat.  The pins are secured by grade 12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors. The 2-piece GiroDisc design allows for rotor only replacement to minimize replacement costs and deliver outstanding performance and cooling. Sold/Priced per pair.

FITS: CHEVROLET CORVETTE WITH Z06 PACKAGE  REPLACEMENT ROTOR DISCS ONLY, DOES NOT INCLUDE ALUMINUM HAT. Discovery Parts is an Authorized dealer for GiroDisc products and we are one of the largest stocking dealers in the country.  We ship most products same or next business day to ensure we meet your delivery deadline. The GiroDisc replacement rotor system is a direct rotor disc replacement for the Giro Disc 2-piece hat and rotor and no modifications are necessary.   The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by GiroDisc in the USA to our own specifications and are cadmium plated for corrosion resistance.  The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat.  The pins are secured by grade 12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors. The 2-piece GiroDisc design allows for rotor only replacement to minimize replacement costs and deliver outstanding performance and cooling. Sold/Priced per pair.

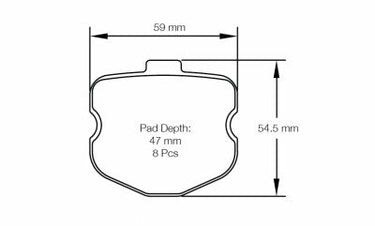

Pagid Racing Brake Pads 8240 Rear Fits These Vehicles (12 pads total, 6 per side):   Make Model Build (Year) Front Rear Chevrolet Corvette C6 Grand Sport [multi pad system] 2010 - 13 X   Chevrolet Corvette C6 Z06 [multi pad system] 2006 - 13 X     RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 2: PAGID RST2 is an aggressive pad compound with instant pedal response and release, and a firm pedal at all temperatures. Medium to high friction, fade resistant compound with a progressive torque curve and good pedal feel. Recommended for GT racing on tracks where higher temperatures are an issue.

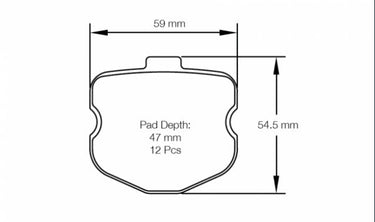

Pagid Racing Brake Pads 8240 Front Fits These Vehicles (12 pads total, 6 per side):   Make Model Build (Year) Front Rear Chevrolet Corvette C6 Grand Sport [multi pad system] 2010 - 13 X   Chevrolet Corvette C6 Z06 [multi pad system] 2006 - 13 X     RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 2: PAGID RST2 is an aggressive pad compound with instant pedal response and release, and a firm pedal at all temperatures. Medium to high friction, fade resistant compound with a progressive torque curve and good pedal feel. Recommended for GT racing on tracks where higher temperatures are an issue.

FITS: CHEVROLET CORVETTE WITH Z06 PACKAGE (2005-2013) REPLACEMENT ROTOR DISCS ONLY, DOES NOT INCLUDE ALUMINUM HAT. Discovery Parts is an Authorized dealer for GiroDisc products and we are one of the largest stocking dealers in the country. We ship most products same or next business day to ensure we meet your delivery deadline. The GiroDisc replacement rotor system is a direct rotor disc replacement for the Giro Disc 2-piece hat and rotor and no modifications are necessary. The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by GiroDisc in the USA to our own specifications and are cadmium plated for corrosion resistance. The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat. The pins are secured by grade 12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors. The 2-piece GiroDisc design allows for rotor only replacement to minimize replacement costs and deliver outstanding performance and cooling. Sold/Priced per pair.

Discovery Parts is an Authorized dealer for GiroDisc products and we are one of the largest stocking dealers in the country. We ship most products same or next business day to ensure we meet your delivery deadline. Fits Chevy Corvette C6 Z06 (2005-2013) The GiroDisc system is an upgrade to a 2-piece steel rotor and aluminum hat combination and is a direct replacement for the OEM brake disc. The 2-piece floating disc will bolt directly to the car and work with OEM calipers perfectly. By upgrading your brakes with these lightweight high-performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Giro Disc rotors are lighter than OEM pieces. The reduction in rotational and unsprung weight allows for quicker acceleration and suspension response. When used with Pagid or PFC performance brake pads, and Discovery Parts RF-1 brake fluid (also available from CompetitionMotorsport.com), you have an amazing solution to overheating, cracking and warping rotors. The central hat section of the disc is made from 6061-T6 aircraft specification aluminum. The disc is manufactured from cast iron which is constructed in the USA and is made to the same specification with the same material used by professional racing organizations. The rotors curved vane design was developed in racing and acts as a centrifugal pump to force cooling air through the disc. The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by GiroDisc in the USA to our own specifications and are cadmium plated for corrosion resistance. The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat. The pins are secured by grade12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors. The 2-piece GiroDisc design allows for rotor only replacement as well to minimize future replacement costs and deliver outstanding performance and cooling. Sold/Priced per pair.
