Carbotech Brakes
Carbotech C8 Corvette Z51 Front Brake Pad Set CT28951F
from $284.00
Carbotech C8 Corvette Z51 Front Brake Pad Set CT28951F
Carbotech CT28951F fits the C8 Corvette Z51 front axle is available in Carbotech 1521, AX6, XP8, XP10, XP12, XP20, and XP24 compounds. Carbotech offers a variety of compounds that can bring you to the deepest of brake zones, smooth consistent spirited mountain or track days, or the best street pads ever produced.
How To Properly Bed In Carbotech Racing Brake Pads
Manufacturer: Carbotech
Manufacturer Part Number: CT28951F

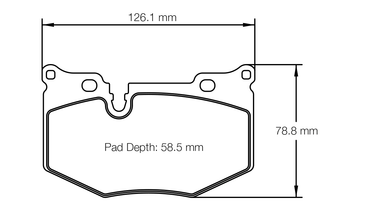

Material thickness of pad material and backing plate: .577" (15mm)
FMSI Number:
Hawk interchange: HB926_.577
CARBOTECH BRAKE COMPOUNDS
Carbotech 1521
The Carbotechâ 1521â is our high performance street compound. The 1521â compound is known for its release and modulation, along with unmatched rotor friendliness. 1521â is also a very low dusting and low noise compound with an excellent initial bite. This compound's excellent linear torque production provides incredible braking force without ABS intervention. Carbotechâ 1521â operating range starts out at ambient and goes up to 800 F (426 C+). 1521â is suitable for ALL street cars, perfect for your tow vehicle or fleet vehicle. Carbotechâ 1521â is NOT recommended for ANY track use.
Carbotech AX6
The AX6â is specifically engineered for Autocross applications. A high torque brake compound delivering reliable and consistent performance over a very wide operating temperature range of 50 F to 1000 F + (10 C to 537 C+). The advanced compound matrix provides an excellent initial bite, high coefficient of friction at lower temperatures along with very progressive brake modulation and release characteristics. Many drivers use the AX6â for street driving as well, even though Carbotechâ doesn't recommend street driving with AX6â due to possible elevated levels of dust and noise. AX6â is NOT recommended as a race compound in most applications.
Carbotech XP8
A high torque brake compound with a wide operating temperature range of 200 F-1250 F+ (93 C to 676 C+). Carbotechâ XP8â is the first of our racing compounds. Good initial bite at race temperatures, high coefficient of friction, excellent modulation and release characteristics. Extremely high fade resistance and very rotor friendly. Perfect for track day use with any tire and can still be driven safely to and from the track. Carbotechâ does NOT recommended XP8â as a daily driven street pad due to elevated levels of dust and noise. Carbotechâ XP8â is a great compound on the front & rear of most open wheel and sports racers.
Carbotech XP10
When Carbotechâ unleashed the XP10â to the general public it immediately gathered multiple regional, divisional, and national championships. The XP10â has a very strong initial bite with a coefficient of friction and rotor friendliness unmatched in the industry. Fade resistance is in excess of 1475 F (801 C). XP10â still maintains the highly praised release, excellent modulation and rotor friendliness that have made all Carbotechâ compounds so successful. Carbotechâ XP10â is not recommended as a daily-driven street pad due to possible elevated levels of dust and noise.
Carbotech XP12
Another highly successful XPâ series compound with an excellent initial bite, torque and fade resistance over and above the XP10â compound. XP12â has temperature range of 250 F to 1850 F+ (121 C to 1010 C+). The XP12â has that excellent Carbotechâ release and modulation that has made all other Carbotechâ compounds so successful. The XP12â is more rotor aggressive than XP10â , but compared to the competition the XP12â is still very rotor friendly. XP12â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.
Carbotech XP20
The latest iteration of the highly successful XPâ series of compounds. XP20â is a step up from the highly successful XP16â compound. With an extremely aggressive initial bite, linear torque curve and excellent fade resistance the XP20â is another major step in progression of the highly successful XPâ series line of compounds from Carbotechâ . XP20â has a temperature range of 275 F to 2000 F+ (135 C to 1093 C+). Carbotechâ XP20â maintains our tradition of having the outstanding release and modulation that has made all other Carbotechâ compounds so successful. Carbotechâ XP20â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.
Carbotech XP24
XP24â is the pinnacle compound of the extremely successful XPâ Series of compounds engineered by Carbotechâ . This compound is based on the same fundamentals that exist in all other Carbotechâ formulations. XP24â has even more initial bite, more overall bite, and more torque along with the most linear torque curve we have ever offered. The thermal characteristics are of the highest Carbotechâ offers along with one of the highest coefficient of friction ratings offered by anyone in the braking industry. This compound is the longest wearing compound Carbotechâ offers as it was originally engineered for endurance applications at the highest pro racing levels. This revolutionary new compound has been extremely successful with open wheel, closed wheel, sprint and endurance applications. XP24â has a temperature range of 400 F to 2000 F+ (204 C to 1093 C+). Carbotechâ XP24â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise along with the necessary heat required to work properly.
Carbotech RP2
The RP2â compound was engineered for endurance racing based on our highly successful XPâ Series formulations. RP2â has strong initial bite, a little less modulation than our XP12â , but still maintains the rotor friendliness of our XPâ series compounds. RP2â has great fade resistance with a temperature range of 250 F to 1450 F+ (121 C to 787 C). RP2â is as rotor friendly as our XPâ series compounds. Carbotechâ RP2â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.
Carbotech CT28951F Fitment:
2020+ Chevrolet Corvette (C8) w/ Z51 Package
Carbotech Brakes
Carbotech C8 Corvette Z51 Rear Brake Pad Set CT28951R
from $214.00
Carbotech C8 Corvette Z51 Rear Brake Pad Set CT28951R
Carbotech CT28951R fits the C8 Corvette Z51 rear axle is available in Carbotech 1521, AX6, XP8, XP10, XP12, XP20, and XP24 compounds. Carbotech offers a variety of compounds that can bring you to the deepest of brake zones, smooth consistent spirited mountain or track days, or the best street pads ever produced.
How To Properly Bed In Carbotech Racing Brake Pads
Manufacturer: Carbotech
Manufacturer Part Number: CT28951R

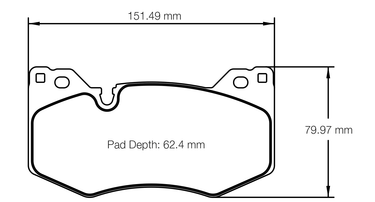

Material thickness of pad material and backing plate: .568" (14mm)
FMSI Number:
Hawk interchange: HB927_.568
CARBOTECH BRAKE COMPOUNDS
Carbotech 1521
The Carbotechâ 1521â is our high performance street compound. The 1521â compound is known for its release and modulation, along with unmatched rotor friendliness. 1521â is also a very low dusting and low noise compound with an excellent initial bite. This compound's excellent linear torque production provides incredible braking force without ABS intervention. Carbotechâ 1521â operating range starts out at ambient and goes up to 800 F (426 C+). 1521â is suitable for ALL street cars, perfect for your tow vehicle or fleet vehicle. Carbotechâ 1521â is NOT recommended for ANY track use.
Carbotech AX6
The AX6â is specifically engineered for Autocross applications. A high torque brake compound delivering reliable and consistent performance over a very wide operating temperature range of 50 F to 1000 F + (10 C to 537 C+). The advanced compound matrix provides an excellent initial bite, high coefficient of friction at lower temperatures along with very progressive brake modulation and release characteristics. Many drivers use the AX6â for street driving as well, even though Carbotechâ doesn't recommend street driving with AX6â due to possible elevated levels of dust and noise. AX6â is NOT recommended as a race compound in most applications.
Carbotech XP8
A high torque brake compound with a wide operating temperature range of 200 F-1250 F+ (93 C to 676 C+). Carbotechâ XP8â is the first of our racing compounds. Good initial bite at race temperatures, high coefficient of friction, excellent modulation and release characteristics. Extremely high fade resistance and very rotor friendly. Perfect for track day use with any tire and can still be driven safely to and from the track. Carbotechâ does NOT recommended XP8â as a daily driven street pad due to elevated levels of dust and noise. Carbotechâ XP8â is a great compound on the front & rear of most open wheel and sports racers.
Carbotech XP10
When Carbotechâ unleashed the XP10â to the general public it immediately gathered multiple regional, divisional, and national championships. The XP10â has a very strong initial bite with a coefficient of friction and rotor friendliness unmatched in the industry. Fade resistance is in excess of 1475 F (801 C). XP10â still maintains the highly praised release, excellent modulation and rotor friendliness that have made all Carbotechâ compounds so successful. Carbotechâ XP10â is not recommended as a daily-driven street pad due to possible elevated levels of dust and noise.
Carbotech XP12
Another highly successful XPâ series compound with an excellent initial bite, torque and fade resistance over and above the XP10â compound. XP12â has temperature range of 250 F to 1850 F+ (121 C to 1010 C+). The XP12â has that excellent Carbotechâ release and modulation that has made all other Carbotechâ compounds so successful. The XP12â is more rotor aggressive than XP10â , but compared to the competition the XP12â is still very rotor friendly. XP12â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.
Carbotech XP20
The latest iteration of the highly successful XPâ series of compounds. XP20â is a step up from the highly successful XP16â compound. With an extremely aggressive initial bite, linear torque curve and excellent fade resistance the XP20â is another major step in progression of the highly successful XPâ series line of compounds from Carbotechâ . XP20â has a temperature range of 275 F to 2000 F+ (135 C to 1093 C+). Carbotechâ XP20â maintains our tradition of having the outstanding release and modulation that has made all other Carbotechâ compounds so successful. Carbotechâ XP20â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.
Carbotech XP24
XP24â is the pinnacle compound of the extremely successful XPâ Series of compounds engineered by Carbotechâ . This compound is based on the same fundamentals that exist in all other Carbotechâ formulations. XP24â has even more initial bite, more overall bite, and more torque along with the most linear torque curve we have ever offered. The thermal characteristics are of the highest Carbotechâ offers along with one of the highest coefficient of friction ratings offered by anyone in the braking industry. This compound is the longest wearing compound Carbotechâ offers as it was originally engineered for endurance applications at the highest pro racing levels. This revolutionary new compound has been extremely successful with open wheel, closed wheel, sprint and endurance applications. XP24â has a temperature range of 400 F to 2000 F+ (204 C to 1093 C+). Carbotechâ XP24â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise along with the necessary heat required to work properly.
Carbotech RP2
The RP2â compound was engineered for endurance racing based on our highly successful XPâ Series formulations. RP2â has strong initial bite, a little less modulation than our XP12â , but still maintains the rotor friendliness of our XPâ series compounds. RP2â has great fade resistance with a temperature range of 250 F to 1450 F+ (121 C to 787 C). RP2â is as rotor friendly as our XPâ series compounds. Carbotechâ RP2â is NOT recommended for use as a daily driven street pad due to possible elevated levels of dust and noise.
Carbotech CT28951R Fitment:
2020+ Chevrolet Corvette (C8) w/ Z51 Package (Rear)
Competition Motorsport
CMS RF1 DOT4 Racing Brake Fluid
from $21.95
CMS RF1 DOT4 Racing Brake Fluid
Real-Life High Boiling Point Without The Real High Price
RF1 Racing Brake Fluid from CMS Performance is a fully-synthetic DOT4 brake fluid formulated to provide extraordinary performance under the most demanding high-temperature racing and track-day conditions. With a dry boiling point of 328º C (622º F), RF1 exceeds all DOT3 & DOT4 requirements and is compatible with all DOT 3, 4, and 5.1 fluids. (Not compatible with DOT5 or mineral-based brake fluids.)
On the race track, brake systems operate at very high sustained temperatures, and there is perhaps no single safety system more important in racing than your brakes. No single part of that system is more critical than brake fluid. At CMS Performance, we got tired of (and a little nervous) using "racing" brake fluid at the race track that didn't live up to its claimed performance when things got hot.
So we did something about it. Manufactured in partnership with Orthene, the brake fluid supplier to many teams in Formula 1, WEC, and other professional series, RF1 Racing Brake Fluid was formulated to maintain consistent viscosity, lubricity, and compressibility at the extreme system temperatures and line pressures found in racing and track days.
The bottom line is this: you can spend more on brake fluid, but you can't buy higher-performance than RF1 Racing Brake Fluid.
RF1 Racing Brake Fluid Details
Typical dry boiling point: 328º C (622º F)
Typical wet boiling point: 204º C (399º F)
Exceeds DOT3 & DOT4 standards
Bottle size: 500 ml (16.9 fl oz)
Click Here for Product MSDS Sheet
A Word About Flushing Brake Fluid
All brake fluid degrades over time (not mileage), attracting water as it ages, which, at high brake temperatures, can lead to fluid boil and brake fade or failure. That's why the "wet" (aged) boiling point of any brake fluid is substantially lower than the "dry" (new) boiling point.
To maintain maximum braking performance, Competition Motorsport strongly suggests replacing your brake fluid before every track event, but at least every three months if you're consistently racing and/or driving at track days. It's cheap insurance against learning about brake fade the hard way!
Girodisc

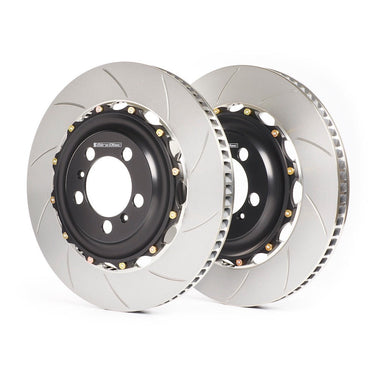

A1-242 Girodisc 2pc Front Brake Rotors (C8 Corvette)
$1,050.00
Discovery Parts is an Authorized dealer for GiroDisc products and we are one of the largest stocking dealers in the country. We ship most products same or next business day to ensure we meet your delivery deadline.
Fits Corvette C8
The GiroDisc system is a direct replacement for the OEM brake disc. The 2-piece floating disc will bolt directly to the car and work with OEM calipers perfectly. By upgrading your brakes with these lightweight high-performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Giro Disc rotors are lighter than OEM pieces. The reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
When used with Pagid or PFC performance brake pads, and Discovery Parts RF-1 brake fluid (also available from CompetitionMotorsport.com), you have an amazing solution to overheating, cracking and warping rotors.
The central hat section of the disc is made from 6061-T6 aircraft specification aluminum. The disc is manufactured from cast iron which is constructed in the USA and is made to the same specification with the same material used by professional racing organizations. The rotors curved vane design was developed in racing and acts as a centrifugal pump to force cooling air through the disc.
The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by GiroDisc in the USA to our own specifications and are cadmium plated for corrosion resistance. The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat. The pins are secured by grade12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors.
The 2-piece GiroDisc design allows for rotor only replacement as well to minimize future replacement costs and deliver outstanding performance and cooling.
Sold/Priced per pair.
Girodisc
A2-242 Girodisc 2pc Rear Brake Rotors (C8 Corvette)
$1,050.00
Discovery Parts is an Authorized dealer for GiroDisc products and we are one of the largest stocking dealers in the country. We ship most products same or next business day to ensure we meet your delivery deadline.
Fits Corvette C8
The GiroDisc system is a direct replacement for the OEM brake disc. The 2-piece floating disc will bolt directly to the car and work with OEM calipers perfectly. By upgrading your brakes with these lightweight high-performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Giro Disc rotors are lighter than OEM pieces. The reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
When used with Pagid or PFC performance brake pads, and Discovery Parts RF-1 brake fluid (also available from CompetitionMotorsport.com), you have an amazing solution to overheating, cracking and warping rotors.
The central hat section of the disc is made from 6061-T6 aircraft specification aluminum. The disc is manufactured from cast iron which is constructed in the USA and is made to the same specification with the same material used by professional racing organizations. The rotors curved vane design was developed in racing and acts as a centrifugal pump to force cooling air through the disc.
The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by GiroDisc in the USA to our own specifications and are cadmium plated for corrosion resistance. The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat. The pins are secured by grade12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors.
The 2-piece GiroDisc design allows for rotor only replacement as well to minimize future replacement costs and deliver outstanding performance and cooling.
Sold/Priced per pair.
Girodisc
Girodisc Pad Spreader GDPS01
$250.00
Girodisc Brake Pad Spreader
This indispensable tool is used by race teams, shops, and enthusiasts alike who have high performance four- and six-piston calipers. The spreader is designed to spread brake pads and pistons in four- and six-piston calipers to facilitate quick replacement of pads and/or rotors in a shop or racing environment.No more screwdrivers, pliers, hammers, or C-clamps! This tool will retract the pistons evenly and all the way back into their bores with one squeeze of the levers. The Girodisc spreader was designed around popular four-piston and six-piston calipers from Brembo, AP Racing, Alcon, and other performance calipers in racing and road use. To help fit in any caliper, the amount of throw is adjustable.Insert the spreading plates one way for wider six-piston calipers, then turn the spreader 90o and use the plate sides for four-piston calipers.The Girodisc Pad Spreader is made from heavy-gauge steel and is powder-coated for durability. The slider is cadmium-plated, and nylon pivot bushings ensure smooth action. The Girodisc Pad Spreader will quickly become an invaluable tool for any race team, shop, or enthusiast who changes pads and rotors with any frequency.
Girodisc
D2-242 Girodisc Rear Replacement Rotor Rings (Corvette C8)
$750.00
Fitment: Chevrolet Corvette C8 Z51
REPLACEMENT ROTOR DISCS ONLY. INCLUDES NEW INSTALLATION HARDWARE. DOES NOT INCLUDE ALUMINUM HAT.
Discovery Parts is an authorized dealer for Girodisc products and we are one of the largest stocking dealers in the country. We ship most products same or next business day to ensure we meet your delivery deadline.
The Girodisc replacement rotor system is a direct rotor disc replacement for the Girodisc two-piece hat and rotor and no modifications are necessary.
The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by Girodisc in the USA to their own specifications and are cadmium plated for corrosion resistance. The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat. The pins are secured by grade 12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors.
The two-piece Girodisc design allows for rotor only replacement to minimize replacement costs and deliver outstanding performance and cooling.
Sold/priced per pair.
Girodisc
D1-242 Girodisc Front Replacement Rotor Rings (Corvette C8)
$750.00
Fitment: Chevrolet Corvette C8 Z51
REPLACEMENT ROTOR DISCS ONLY. INCLUDES NEW INSTALLATION HARDWARE. DOES NOT INCLUDE ALUMINUM HAT.
Discovery Parts is an authorized dealer for Girodisc products and we are one of the largest stocking dealers in the country. We ship most products same or next business day to ensure we meet your delivery deadline.
The Girodisc replacement rotor system is a direct rotor disc replacement for the Girodisc two-piece hat and rotor and no modifications are necessary.
The rotor and hat mount together through a floating mount system which utilizes 8-10 high strength alloy steel drive pins manufactured by Girodisc in the USA to their own specifications and are cadmium plated for corrosion resistance. The alloy drive pins transfer the load from the brake action while maintaining the axial and radial float between the disc rotor and hat. The pins are secured by grade 12 cap screws with hardened washers and mounted with anti-noise spring washers to allow for heat expansion while eliminating the rattle and noise associated with floating rotors.
The two-piece Girodisc design allows for rotor only replacement to minimize replacement costs and deliver outstanding performance and cooling.
Sold/priced per pair.
Girodisc
Corvette C8 Z06 Rear Rotors
$1,500.00
Fitment: Chevrolet Corvette C8 Z06
These GiroDisc 2-piece rotors are a direct replacement for the rear rotors on the Corvette C8 Z06 with or without the Z07 carbon ceramic brakes. Note that if your Z06 is equipped with the Z07 carbon ceramic brakes, you will need to use the rear pad shape from a factory iron Z06. Our 2-piece, fully floating assemblies help shed unsprung weight and rotating mass from the front axle of the vehicle.
The rotor rings are machined from a proprietary casting made of high-carbon steel formulated to GiroDisc’s specifications. This superior metallurgy results in a rotor that holds up better, and the 72 curved vanes act as a centrifugal pump pulling air in through the hub to effectively cool the rotors under hard use. The 2-piece design means a reusable hat which can be attached to new rings (part number D2-319) when they need to be replaced.
All major components including the hats, rotor rings, and drive pins are manufactured in-house at our facility in Bellingham, WA from domestically sourced materials. The hat is made from 6061-T6 aluminum and coated in a black anodize finish. The drive pins are made from a high-strength steel alloy and cadmium-plated for corrosion resistance. All rotors are assembled with spring clips and Belleville washers for race-ready float while also being street-friendly with no noise from loose hardware.
The minimum thickness at which we recommend replacing these rings is 32mm. We also recommend replacing them if a crack leads to the edge of the ring.
Sold and priced per pair.
Girodisc
Corvette C8 Z06 Front Iron Rotor Conversion
$1,600.00
Fitment: Chevrolet Corvette C8 Z06
DESCRIPTION
These GiroDisc 2-piece rotors are a direct replacement for the front rotors on the Corvette C8 Z06 with the Z07 carbon ceramic brakes. Our 2-piece, fully floating assemblies are direct replacements for the carbon ceramic rotors and utilize the factory calipers, but with a different pad shape. This pad shape is commonly known as D1405, and is the same pad shape as a Z06 without the Z07 package. Please contact us if you need help finding pads.
The rotor rings are machined from a proprietary casting made of high-carbon steel formulated to GiroDisc’s specifications. This superior metallurgy results in a rotor that holds up better, and the 72 curved vanes act as a centrifugal pump pulling air in through the hub to effectively cool the rotors under hard use. The 2-piece design means a reusable hat which can be attached to new rings (part number D1-320) when they need to be replaced.
All major components including the hats, rotor rings, and drive pins are manufactured in-house at our facility in Bellingham, WA from domestically sourced materials. The hat is made from 6061-T6 aluminum and coated in a black anodize finish. The drive pins are made from a high-strength steel alloy and cadmium-plated for corrosion resistance. All rotors are assembled with spring clips and Belleville washers for race-ready float while also being street-friendly with no noise from loose hardware.
The minimum thickness at which we recommend replacing these rings is 34mm. We also recommend replacing them if a crack leads to the edge of the ring.
Sold and priced per pair.
