Karting Data & Timing

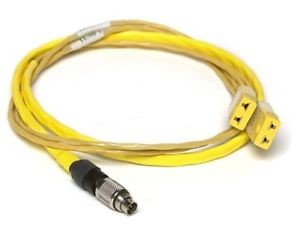

MyChron5 & 4 2T Y-Cable, CHT & EGT One of the most common uses of this cable is to use an under the spark plug cylinder head temperature (CHT) and an exhaust gas temperature (EGT). We use this on a Yamaha KT100, LO206, Animal or clone motor to record both CHT & EGT as our two temperature inputs. MyChron 5 & 4 2T Y-Cable, CHT & EGT Details: Manufacturer: AiM Manufacturer part number: V02557070 Alternate part number: MC-016 Kart Only: Yes MyChron5 2T: Yes MyChron4 2T: Yes Cable End 1: 7-pin 712 screw on (dash) Cable End 2: K-Type (2 pin flat yellow female - egt or CHT) Cable End 3: K-Type (2 pin flat yellow female - egt or CHT) Length of 712 7 pin male to cunction: 54.5" Lengh of junction to flat yellow egt or CHT coupler: 2.5" AiM Y-Cable is designed for the MyChron5 2T kart dash. This Y-Cable is designed for the MyChron5 2T and MyChron4 2T kart dash. It has a 712 7-pin male connector for the dash, and two K-type (2-pin flat yellow) female connectors to accept K-type thermocouples.

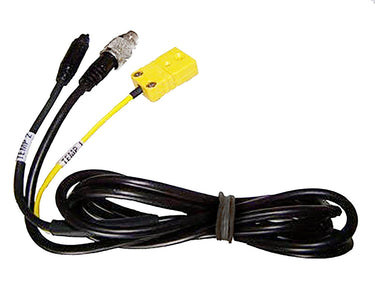

AiM MyChron4/5/5S 2T Y-Cable This AiM Sports Y-Cable is designed for the MyChron5 and MyChron 5S 2T kart dashes with two temperature control capabilities. One end of the AiM Y-Cable has one Binder 712 seven-pin male (screw-in) terminal to connect to your MyChron dash. The other end has one K-type (two-pin flat yellow) female connector to accept a K-type thermocouple, and one Binder 712 four-pin female (push-in) connector for a thermoresistor temperature sensor. AiM MYCHRON4/5/5S Y-CABLE DETAILS Manufacturer: AiM Sports Manufacturer part no: V02557110 Karting only: yes MyChron end: 7-pin Binder 712 male (screw-in) Sensor end 1: 4-pin Binder 712 female (push-in) Sensor end 2: K-Type 2 pin flat yellow female

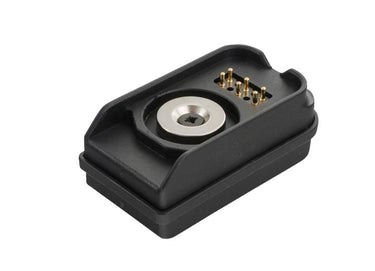

AiM MyChron 5 Battery Charger AiM MyChron 5 battery charger is used to power up your MyChron 5 rechargeable lithium batteries. Plug into a USB port and you're ready to start charging your MyChron5 battery! Mini-USB cable required for use, NOT included.  AiM MyChron 5 Battery Charger Details: Manufacturer: AiM Manufacturer part number: XSMCABATM5 Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No

AiM Sports Thermocouple Extension Cable (5 feet) Extension cable to link a thermocouple temperature sensor to your MyChron data-logger dash. Features one 712 3-pin male connector and one K-style female connector. Cable length is 5.0 ft. (1.5 meter).

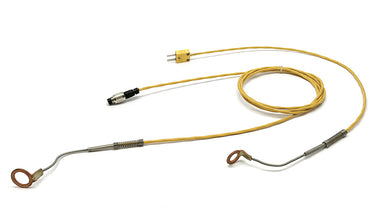

AiM Sports CHT Thermocouple Sensors Add the appropriate AiM Sports Cylinder Head Temperature sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! AiM devices can measure the cylinder head temperature using a sensor – thermocouple – placed between the spark plug and the cylinder head. All AiM thermocouples are K-type sensors. Install this CHT thermocouple to monitor temperatures ranging from 0º to 572ºF (up to 300ºC). Choose your sensor diameter to fit either 14mm, 12mm, or 10mm spark plugs. The sensing ring is 0.7 inch (18mm) thick. TEMPERATURE SENSOR CHOICES This thermocouple is available to fit three different spark plug diameters, various cable lengths, and two different end connectors as follows: CHT14B: 14mm diam, 1.5m cable length, Binder 712 3-pin male   CHT14M: 14mm diam, 0.4m cable length, Mignon 2-pin male CHT12B: 12mm diam, 1.4m cable length, Binder 712 3-pin male CHT12M: 12mm diam, 0.4m cable length, Mignon 2-pin male CHT10B: 10mm diam, 1.4m cable length, Binder 712 3-pin male CHT10M: 10mm diam, 0.4m cable length, Mignon 2-pin male

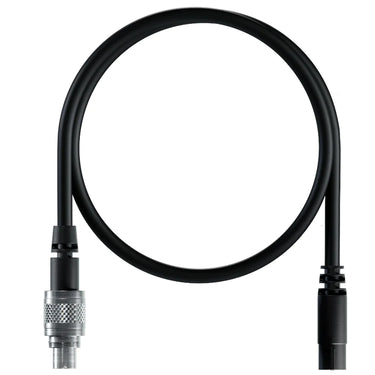

719 to 3-pin 712 Adapter Cable Only for Rotax Temp Sensor This patch cable has a 719 push-on connector at one end and a 3-pin 712 screw-in connector at the other. It is only used in karting applications, usually with the Rotax engine. This is the same cable included with the AiM Rotax Water Temperature Sensor Kit (Part No. AIM-MC-040). 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details:Manufacturer: AiMManufacturer part number: V02PCB15BTRManufacturer MC-041Kart Only: YesCable End 1: 719 push-onCable End 2: 3-pin 712 screw on. 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details: Manufacturer: AiM Manufacturer part number: V02PCB15BTR Manufacturer MC-041 Kart Only: Yes Cable End 1: 719 push-on Cable End 2: 3-pin 712 screw on

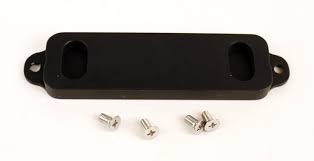

AiM MyChron 5 Battery Block Off Plate AiM MyChron 5 battery block off plate is used when you use an external power cable to power you MyChron 5 dash. By powering your MyChron 5 by your kart battery, you now have an almost eternal power supply for your kart dash. To seal your MyChron 5 against the elements, this AiM battery block off plate kit is used. AiM MyChron 5 Battery Block Off Plate Details: Manufacturer: AiM Manufacturer part number: X80MYC5TPB Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No Hardware included: Yes
