RSC 1: **For Ceramic Rotors ONLY**  RSC1 The first series in the RSC compound.  A good street/track compromise.  Sprint race and track day compound for all known types of Ceramic brake discs. This friction material features an ideal combination of cold friction, fade resistance and low thermal oxidation of the disc surface fibers.  Pagid's RSC (RSC-1) racing compound was specifically developed for use for the newest ceramic disc applications from Porsche. Designed for track days and shorter sprint-type races, the RSC-1 offers excellent cold friction, fade resistance and low thermal oxidation of the ceramic disc fibers.

Pagid Racing Brake Pads No. 7034 RSL 2: RSL 2 compound is based on the RSL 1, but has been improved in terms of pad and disc life as well as friction stability vs. temperature. It is a low-metallic, resin-bonded material containing steel and aramid fibers. Furthermore, it maintains a constant friction level over a wide range of temperatures.

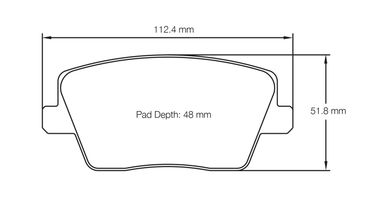

Pagid Racing Brake Pads No. 7035 RSL 2: RSL 2 compound is based on the RSL 1, but has been improved in terms of pad and disc life as well as friction stability vs. temperature. It is a low-metallic, resin-bonded material containing steel and aramid fibers. Furthermore, it maintains a constant friction level over a wide range of temperatures.

RST 1: PAGID RST1 High average friction, aggressive in stop behavior with instant pedal response and release, consistently firm pedal at all temperatures, fade resistant at highest disc temperatures.  High friction compound with very good initial bite and a progressive torque curve. Very fade resistant.  Suitable for applications with high down-force and / or very high grip.  RST 3: RST 3 is a medium-high friction metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity. Popular applications of the RST 3 compound include rally tarmac and gravel, GT cars, Touring cars and prototype circuit racing, formula cars and club racing. Wide range of applications due to it‘s combination of bite, friction and controllability.

RS19: PAGID RS19 Good compound for endurance racing on the basis of the RS14. A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600 Degrees C (1,100 Degrees F) are possible. The combination of friction value, fading stability and low wear rates on pads and discs (rotors) realised with this material is unmatched up to now. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. A multiple winner of Daytona 24h, Le Mans 24h, Sebring 12h, Spa 24 h, Nürburgring 24h, often with no pad change and usually no disc (rotor) change. Application: All endurance racing cars from Group N (Speed-WC, Grand Am Cup), Group A up to GT and Sport-Prototypes (Grand Am DP)

Fits These Vehicles Make Model Build (Year) Front Rear Porsche 997 3.6 C & 3.6 C4 08 - 11   X Porsche 997 all models ceramic brakes 05 - 12   X Porsche 997 GT3 07 - 11   X Porsche 997 GT3 Cup [19 mm thick pads] 05 - 12   X Porsche 997 GT3 Rally 05 - 12   X Porsche 997 GT3 RS 07 - 12   X Porsche 997 Turbo 06 - 12   X   RSL 29: The PAGID RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RS 14: The PAGID RS14 (Black) is a high friction value ceramic compound with very good modulation and high fade resistance. A very popular, aggressive pad with strong initial bite and high torque. In addition to the track-day environment, RS14 has shown success in short- to medium-distance circuit racing as well as gravel and tarmac rallying. RSC 1: The Pagid RSC1 is a good street/track compromise for enthusiasts with Carbon-Ceramic Brakes. Used for sprint racing and track days compound with all known types of ceramic brake discs. An ideal combination of cold friction, fade resistance and low thermal oxidation of the disc surface. RST 3: The PAGID RST3 is a medium-high friction metal-ceramic compound containing steel and acrylic fibers. It has very low heat conductivity, good initial bite, and excellent modulation and release characteristics. Optimized for rally on tarmac and gravel, GT and Touring cars, and club racing.

Fits These Vehicles Make Model Build (Year) Front Rear BMW 1 Series M Coupe [E82] 11 - 13   X BMW M3 [E90 / E92] 07 - 13   X BMW M5 [E60] 04 - 11   X BMW M6 [E63 / E64] 06 - 12   X   RSL 29: The PAGID RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

RSL 1: RSL 1 is a low metallic resin bonded material containing steel and aramid fibers with high heat resistance. It maintains a constant friction level over a wide range of temperatures. Its low wear rate and disc friendliness make this material appropriate for endurance races. Applications include GT cars, Touring cars and prototype endurance racing. Due to the high friction and good modulation, often used in sprint races as well. RSL 2: RSL 2 is based on the RSL 1 compound but has been further improved in terms of pad and disc life as well as friction stability vs. temperature. It is a low metallic resin bonded material containing steel and aramid fibers. Furthermore, it maintains a constant friction level over a wide range of temperatures. Applications include GT cars, Touring cars and prototype endurance racing. Due to excellent modulation characteristics often also used in sprint races. RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 1: RST 1 has a very high friction level and high temperature resistance. It is a semi metallic resin bonded material containing steel fibers. Cold friction and initial bite makes this material most appropriate for Rally and NASCAR applications. Applications include Rally tarmac, GT cars and Touring cars circuit racing (sprint), high down-force formula cars, NASCAR. Suitable for applications in heavy cars and where high torque is necessary against small diameter rotors. RST 2: RST 2 is a semi metallic resin bonded material containing steel fibers. Cold friction and initial bite makes this material most appropriate for Rally and NASCAR applications. Applications include Rally tarmac, GT cars and Touring cars circuit racing and NASCAR. Also used as rear pad in combination with RST 1 front. Recommended for GT and Touring Car racing on tracks where higher temperatures are an issue. RST 3: RST 3 is a medium-high friction metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity. Applications include Rally tarmac and gravel, GT cars, Touring cars and prototype circuit racing, formula cars and club racing. RST 3 suits a wide range of applications due to it‘s combination of bite, friction and controllability. RST 4: RST 4 is a semi metallic resin bonded material containing steel fibers. This material has a medium friction level and high temperature resistance. Applications include formula cars and open wheel racing. Rear axle material for Rally (tarmac and gravel) and for all front engine cars. Also used in NASCAR on long ovals.

PAGID 8031 The 8031 Pagid Racing Brake Pad is used on the rear of various Mercedes models. The 8031 Pagid Racing Brake Pad is only available in the RSL 19 compound. RSL 19 is a low metallic resin bonded material containing steel and aramid fibers. It maintains a constant friction level across a broad range of temperatures. The material features very good modulation and release characteristics.

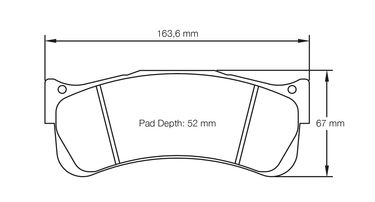

PAGID Racing Brake Pads No. 8038 The Pagid 8038 Pagid Racing Brake Pad is used on the Porsche 997 GT3 Cup Grand-Am Spec, 997 GT3 Cup S, and the 997 GT3R (factory race car with the normal caliper) on the front axle. The Pagid 8038 fits the Brembo 07.7293 caliper used on these factory Porsche race cars perfectly. Porsche has won championships in many series with the Pagid 8038 RSL29 compound. Pagid Racing Brake Pads No. 8038 Details: Manufacturer: Pagid Manufacturer part number: 8038RSL29 Compound: RSL29 Material thickness of pad and friction material: 22 mm Track or Street: Track only The Pagid RSL 29 is a popular track only race compound that features very good modulation and release characteristics. The friction compound of the RZL29 is a low metallic resin bonded material containing steel and aramid fibers. The friction level of the RSL29 material maintains constant at a low-medium torque level. The Pagid RSL29 has a very easy bedding in behavior, making it a choice for endurance racers and advanced track day drivers.

RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le Mans, Daytona, Spa, and the Nurburgring 24H. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

RS19: PAGID RS19 Good compound for endurance racing on the basis of the RS14. A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600 Degrees C (1,100 Degrees F) are possible. The combination of friction value, fading stability and low wear rates on pads and discs (rotors) realised with this material is unmatched up to now. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. A multiple winner of Daytona 24h, Le Mans 24h, Sebring 12h, Spa 24 h, Nürburgring 24h, often with no pad change and usually no disc (rotor) change. Application: All endurance racing cars from Group N (Speed-WC, Grand Am Cup), Group A up to GT and Sport-Prototypes (Grand Am DP)

RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RS 44: A Carbon based friction material developed from RS4-2 but with a progressively increasing friction curve, giving it lower friction than RS4-2 below 300°c and higher friction above 300°c. It offers slightly less initial bite and low temperature response than RS4-2, but with the same high levels of controllability. The wear rate of RS4-4 is very similar to RS4- 2, but is slightly better in terms of wear at higher temperatures. Disc wear as with all other PAGID materials is exceptional and thermal stressing and tension cracks of the disc surface are greatly reduced. RS4-4 also has extended operating temperature limits, increasing fade resistance, and allowing braking deeper into the corner without wheel lock and fading issues. This compound is available in fewer pad shapes than RS4-2, and is particularly popular in Porsche club racing, and has been fitted as an OEM on such high performance road vehicles as Porsche 993 RS and GT2 for example. In road applications this compound exhibits low brake noise. A very versatile pad for use on both front and rear axle’s, is also a very good rear pad in conjunction with RS14 / RS15 on front axles of front wheel drive touring cars, etc.

RS 14: Outside the track day environment, RS14 has shown success in short- to medium-distance circuit racing as well as gravel and tarmac rallying. RS14 offers very low heat conductivity, resulting in lower caliper and brake fluid temperatures. RS14 offers consistent levels of performance and much longer life than competitors' products without excessive rotor wear, offering the driver supreme confidence. The PAGID RS14 (Black) is a high-friction-value ceramic compound with very good modulation, high fade resistance, low heat conductivity, and a good wear rate up to a constant temperature of 1,200°F (650°C). It's kind on rotors, with visible grooving but no tendency to crack them. RS14 is our most popular ceramic-based friction material. It will tolerate much higher working disc temperatures than PAGID RS4-2, extending fade resistance. RS14 is used as an OEM material and supplied as an upgraded track day pad by Lotus Motorsport. It has been shown to exhibit optimum levels of braking force, control and modulation on popular track-day cars such as the Lotus Elise and Caterham 7.  RSL 29: Designed primarily for endurance racing, due to consistent levels of performance and user friendliness many competitors use this material for sprint and short distance races also. RS29 has also found favor in the growing track-day market due to the high level of control, good cold performance, long life, and low rotor wear. The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  Based on the RS14, a slight reduction of the friction value improves modulation and longevity. The friction value remains high enough for cars without power-assisted brake systems, ensuring low effort on the brake pedal. Constant temperatures up to 1,100°F (600°C) are possible. This combination of friction value, fading stability, and low wear rates on pads and rotors is unmatched. Due to its excellent release characteristics and controllability, PAGID endurance materials are also often used for sprint races. This material provides very good levels of performance and response at all temperature levels; only slight temperature inputs are required to bring the pad up to its optimum performance level. A favorite with endurance racers at events such as Le Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. This has proved suitable for applications running very high disc temperatures.
