The 5" Compact Color TFT Dash For Road Use

AiM MXS 1.3 STRADA OFFERS A WIDE RANGE OF DATA & DISPLAYS

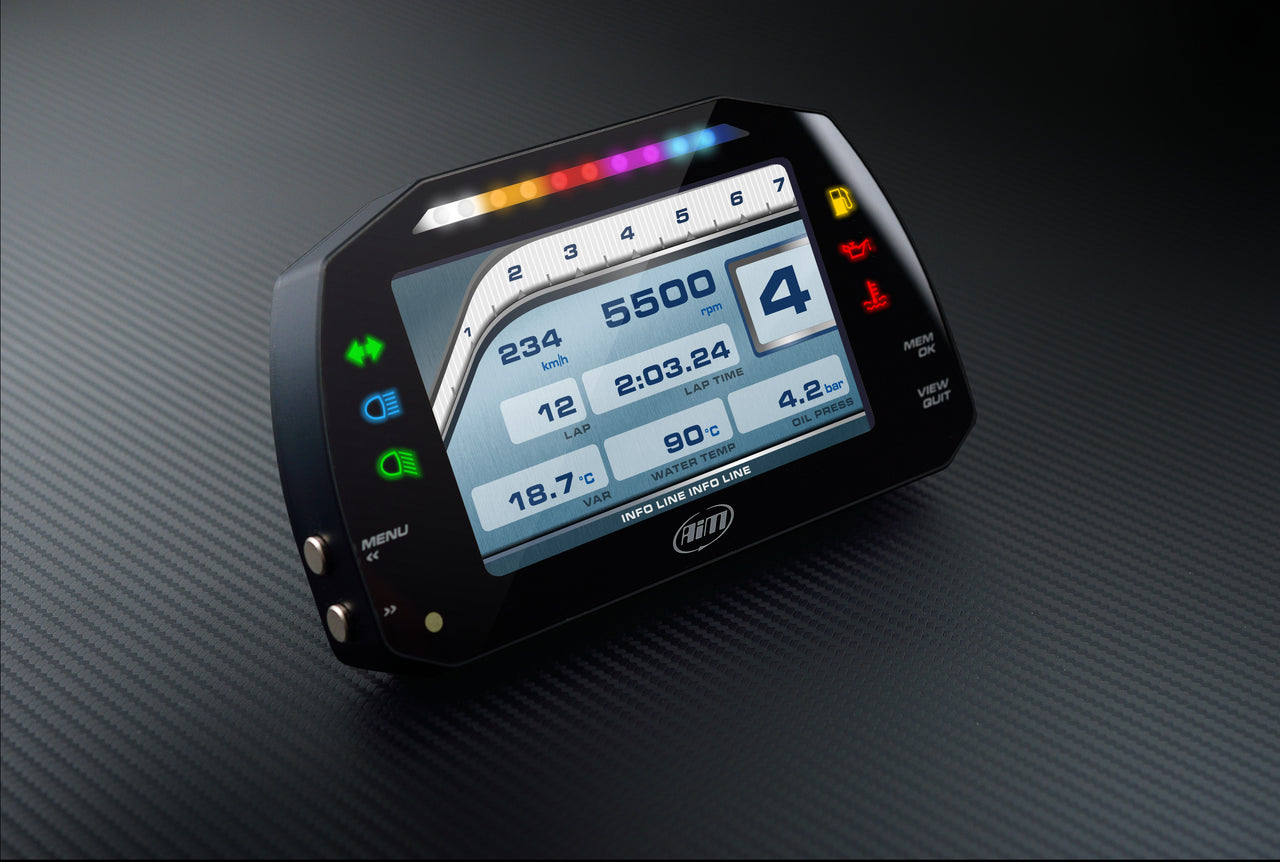

The AiM MXS 1.3 Strada is a beautifully-designed, feature-rich color digital dash display. It is basically an AiM MXS 1.3 without the data-logging function. The MXS 1.3 Strada features a compact five-inch, high-contrast TFT color screen with great visual impact. It can be configured to show lap times, RPM, and a huge range of additional info coming from your car's ECU. It can also get data from analog/digital inputs, pre-defined math channels, and an optional AiM GPS08 Module. Programmable multicolor shift and alarm LEDs round out an incredibly powerful package. There's even a version with "Street Icon" LEDs instead of the traditional "plain" LEDs!

The AiM MXS 1.3 Strada displays your RPM, selected gear, speed, plus all the data you choose (water temp, oil pressure, trans temp, lap times and much more) in either pre-configured or user-customized pages. Swapping between pages is as easy as pushing buttons. Plus the MXS 1.3 Strada puts a huge amount of control over your car's systems at your fingertips.

INPUT & OUTPUT FLEXIBILITY

Eight fully configurable analog input channels on the AiM MXS 1.3 Strada can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). Choose between OBDII and CAN/RS232 input connectors to suit your needs and level of customization.

Both receive rich data from your ECU. An OBDII input connection is an easy, plug-and-play option giving you access to much of the most important data from your ECU. A hard-wired CAN/RS232 input typically delivers a broader range of ECU data, as well as allowing you to expand the MXS 1.3 Strada by adding AiM CAN Data Hubs (sold separately). These hubs let you connect other inputs such as an AiM Lambda Controller (O2), AiM SmartyCam, or channel expansion hubs without using any analog input channels. A separate CAN output allows you to send messages to your car's CAN network, adding vehicle system control possibilities!

CUSTOMIZED ALARMS & SHIFT LIGHTS

Ten multicolored RGB shift lights on the AiM MXS 1.3 Strada can be customized to define the max RPM for each single gear. The same flexibility applies to the RGB alarm LEDs: you can configure them to turn on/off depending on various analog or digital inputs, ECU values, expansion values, math channels, or GPS information from the optional AiM GPS08. You choose the conditions, colors, and either a solid alarm or flashing one (including flash frequency). It's also possible to configure an accompanying text message.

DIGITAL OUTPUT

The AiM MXS 1.3 Strada features a low-side (switch to ground) digital output that can be configured to activate/deactivate external systems (switch on/off additional lights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.

RACE STUDIO 3 INTEGRATION

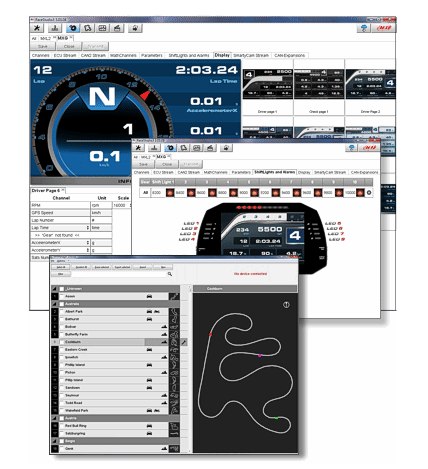

The AiM MXS 1.3 Strada is configured using your PC and Race Studio 3. You can create, customize, delete, import and export configurations with all channels, ECU drivers, Math Channels, Display Pages, Digital Output, Alarms, Shift Lights and all the expansions you need.

AiM MXS 1.3 STRADA DETAILS:

• Manufacturer: AiM Technology Group
• Manufacturer base part no.: XA3MXSST12
• 5" TFT high-contrast color display
• Screen resolution 800x480 pixels
• Compact 6.5" x 3.8" x 0.9" anodized aluminum housing
• Comes with either Standard or Street icons
• ECU connections: CAN, RS232, or K-Line (OBDII)
• Power consumption: 400 mA
• Weight: 1.1 lb. (480g)
• Waterproof: IP67

AiM MXS 1.3 STRADA KIT INCLUDES:

• MXS 1.3 Strada digital dash
• USB cable
• Either 14-pin CAN or standard OBDII harness
• Race Studio 3 software
• User manual
