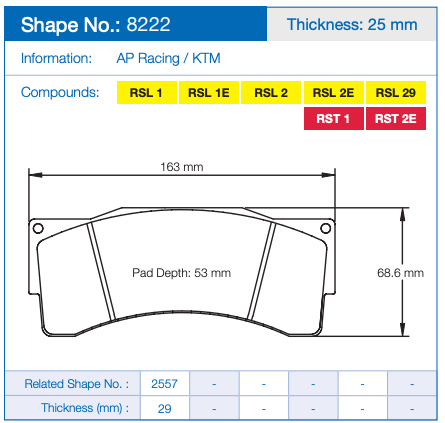

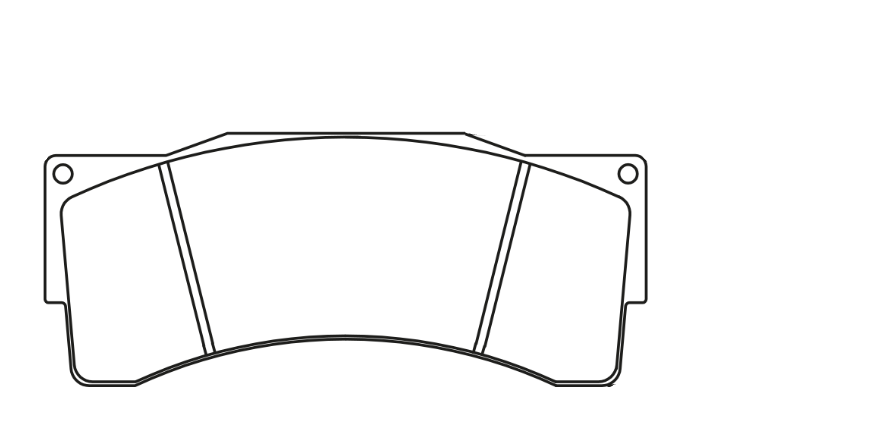

Pagid Racing Brake Pad Shape 8222
Pagid Racing shape 8222 brake pads are engineered for demanding motorsport and high-performance braking applications. 25 mm endurance/sprint racing pad shape for multiple AP Racing and Alcon six-piston calipers.
Pagid Racing 8222 Brake Pad Fitment Guide
| Make / Caliper |
Type / Application |
Remarks |
Shape No. |
| AP Racing |
CP6080 / CP6210 / CP6230 / CP6269 / CP9665 |
25 mm |
8222 |
| Alcon |
Applicable 6-piston racing calipers |
25 mm |
8222 |
| KTM |
X-Bow GT4 – front |
25 mm |
8222 |
Pagid Racing brake pads are designed to deliver consistent stopping power, modulation, fade resistance, and dependable pedal feel under severe track conditions. Select the compound that best matches your vehicle, brake system, and intended use.
Pagid Racing compounds are intended for steel/cast-iron rotors unless the selected compound is specifically engineered for ceramic composite brake discs, such as RSC compounds.
Pagid Racing 8222 RSL 1 Compound
RSL 1 is a high-friction endurance compound with strong heat resistance, consistent friction across a wide temperature range, good modulation, and low pad and disc wear.
Pagid Racing 8222 RSL 2 Compound
RSL 2 is an endurance compound with medium-high friction, stable performance across a wide temperature range, and strong pad and disc life for applications with efficient brake cooling.
Pagid Racing 8222 RST 1 Compound
RST 1 is a very high-friction sprint and rally compound with strong initial bite, a progressive torque curve, and excellent fade resistance. It is well suited to heavy race cars and applications that require high brake torque.
Pagid Racing 8222 RST 5 Compound
RST 5 is a very high-friction sprint and rally compound designed for exceptional thermal stability, strong recovery, and high initial bite under severe competition use.
Important Fitment Information
Brake pad shape and caliper configuration must be verified before ordering. Vehicle applications can vary by model year, trim, brake package, rotor type, and caliper option. Compare the existing pad shape and dimensions with the listed specifications when necessary.
PAGID 8222 BRAKE PAD FAQ
What is the PAGID Racing shape number for this listing?
The brake pad shape is 8222.
Are all compounds suitable for street use?
No. Many PAGID Racing compounds are developed specifically for competition and track use. Choose a compound appropriate for your application.
Can these pads be used with ceramic brake rotors?
Only compounds specifically designed for ceramic composite discs, such as compatible RSC compounds, should be used on ceramic brake systems.
How do I confirm fitment?
Verify the caliper, pad shape, pad dimensions, axle position, and brake package before ordering.
