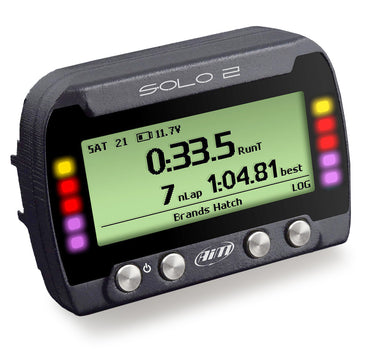

AiM Sports Solo2 Lap Timer The AiM Solo2 receives data from two satellite constellations, GPS and Glonass, a huge step forward making it much faster and more precise than the previous version. Power-on requires only a few seconds and lap times are calculated with a maximum 2/100th of a second tolerance. A sleek new case with easy-to-use metal buttons give the AiM Solo2 a premium look and feel. The screen can be backlighted in one of the seven available colors: FIND YOUR TRACK The AiM Solo2 has access to a database of more than 3,000 race tracks all over the world. As soon as it switches on, the Solo2 identifies its position, recognizes the starting line coordinates of the track, and is ready to start recording lap times. If your track isn't in the database, no problem: the AiM Solo2 will automatically enter into auto-learning mode, figuring out the characteristics of the track and recording lap-times. PREDICTIVE LAP TIME LEDS The AiM Solo2's predictive lap time engine is now even more reliable. And with configurable RGB LEDs, it will give you a clear, fast indication of how your current lap compares with your best possible lap. That's functionality you typically find only on expensive driver-coaching electronic aids -- now it's at your fingertips with the Solo2! RACE MODE SELECTION The AiM Solo2 can manage different types of races: Speed races in a closed circuit Point to-point races Regularity Performance tests (0-60 mph, etc.) In each of these configurations, the AiM Solo2 gives you relevant information during the race/test along with powerful on-screen data review immediately after each session. ON-SCREEN DATA At the end of your session or race, you can quickly review key lap information right on the Solo2 color TFT display. WiFi AND iPHONE WiFi communication with your laptop is easy, fast, and with no connectors or cables. It's the best way to configure your AiM Solo2, manage the track database, and download lap data to your PC. Connect your Solo2 to your iPhone for a quick and comfortable data analysis, managing your track database, etc. Feel free to give us a call at (888) 748-7223 to discuss the cool features and powerful capabilities of AiM's latest compact lap timer today!

AiM Primary Harness for MXM, MXS, MXG, MXL2 Dashes This is the harness that comes with new AIM MXM, MXS, MXG and MXL2 dashes. Having a 37 pin connector on the dash side and break-out connections for 12v+, 12V-, CAN ECU connection, K line, analog sensor channels 1,2,3,4, digital wheel speed, optical lap timing sensor input, and CAN expansion. For use when you move your primary AiM Dash Logger from your primary vehicle to your back-up vehicle. Also commonly used to move your AiM system from your race car to your ChampCar or Lemons car. By using a few extra cables you can have your complete AiM data system in more than one vehicle with minimal effort. AiM 37 Pin Primary Harness for MXM, MXS, MXG, MXL2 Dashes Harness Details Manufacturer: AiM Manufacturer part number: V02573010 Analog sensor channels 1, 2, 3, 4  Digital wheel speed channel 1  Optical lap timing sensor input  CAN expansion  Power+ Ground- CAN ECU connection K Line connection

AiM MXL to MXG, MXS, MXL2 Adapter Harness For use when you upgrade from an AiM MXL Pista or Strada to the modern MXS, MXG, MXP or MXL2 dash. You could remove the MXL harness from the chassis and replace it with the supplied harness that comes with the MXS, MXG or MXL2 or use this adapter harness to make installation easy. AiM AiM MXL to MXG, MXS, MXL2 Adapter Harness Details Manufacturer: AiM Manufacturer part number: V02573090 Connector 1: 22 pin Connector 2: 37 pin 2 Speed inputs 2-4 3 CAN inputs CAN/K-line ECU wiring 12VDC+/- This special harness has one 22-pin and one 37-pin Deutsch connector to plug into the back of the MXL 2 or MXG dash. The other end of the harness has female connectors designed to accept your current MXL wiring harness. You won't have to cut wires, re-run cables, or even unplug your sensors! Simply disconnect the two rectangular AMP connectors from the back of your MXL and plug them into this harness. Your lap timing receiver and anything plugged into the CAN port can be connected to the harness as well. This harness also provides connections for speed inputs 2-4, 3 CAN inputs, and CAN/K-line ECU wiring, for full access to all of the advanced features of the MXL 2 and MXG/MXS. Not compatible with MXL Pro or MXL Pro05 wiring harnesses. If you are unfamiliar with Bend Radius, Wikipedia saves us: Bend radius, which is measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet, cable or hose without kinking it, damaging it, or shortening its life. The smaller the bend radius, the greater is the material flexibility (as the radius of curvature decreases, the curvature increases).

AiM K15 PDM CAN-Configurable Keypad (15-Button) PDM button inserts are sold separately here The AiM K15 is a CAN-programmable, 15-button keypad compatible with AiM PDM systems (PDM08 and PDM32). This keypad comes pre-configured for use with AiM protocols and is ready to be programmed through AiM's RaceStudio software. The buttons measure 15mm in diameter, and the overall keypad size is 157.4mm x 104.4mm x 24.0mm (6.2" x 4.1" x 0.9"). Each button's function and backlight color can be programmed using AiM software. Buttons can be set up as momentary, toggle, or multi-position. Once a button is programmed, install the button insert corresponding to its function. The rear connector is a motorsport-grade female 5-pin Binder 712 connector wired for AiM CAN+, GND, Vb, AiM CAN-, and Vbext. AiM K15 PDM CAN-Configurable Keypad (15-Button) Details Manufacturer: AiM Sports Manufacturer part number: X08KPK15 Weight: 250g (8.8 oz.) Connector: AiM CAN 5-pin Binder 712 Supply voltage: 12-24 VDC, Nominal 8-32 VDC Standby current: <50 mA Communications bus: RS485, CANopen J1939 Operating temperature: -40ºC to 70ºC Thermal shock: -40ºC to 85ºC Salt spray standard: ASTMB117 Chemical resistance: dirt, engine cleaner, isopropyl alcohol, multi-purpose cleaner, muriatic acid Waterproof rating: IP67 Button inserts sold separately Common Features Of The AiM PDM Keypad Reconfigurable buttons Programmable RGB LEDs LED backlit rings and icons Momentary, toggle, and multi-status Two blinking mode Wide range of inserts CAN-Bus system compatible Vertical or horizontal mount Status restore option

AiM 22 Pin Aux Harness Straight Connector EVO 5 This straight harness plugs into the 22-pin connector on the AiM logger. Several of the advanced functions rely on this harness, which is not included with the standard kit. If you would like to add 4 more analog channels, 2 more digital connections and connect easily to your RS232 or CAN-2 ECU, the AiM V02586030 is your next best upgrade. The AiM EVO5 Logger 22 Pin Auxiliary Harness will provide access to the following functions: Analog sensor channels 5, 6, 7, 8 Digital wheel speed sensor inputs 2, 3, 4 Digital 12v outputs 1, 2 RS232 ECU connection Can-2 ECU connection The factory harness that comes with the AiM Dash/Logger allows only 4 inputs. If you would like more inputs then this is your harness.For use with AiM EVO5 only. Not compatible with MXG, MXS, MXM, MXL Pro / MXL Pro05 or EVO3. AiM EVO5 Logger 22 Pin Auxiliary Harness Details: Manufacturer: AiM Manufacturer part number: V02586030 Harness Angle: Straight AiM EVO5 Logger 22 Pin Auxiliary Harness Primary use: Adding analog sensors greater than 4. Your factory harness will allow up to 4 analog channels (sensors), this may be (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure and (4) Brake Pressure. Using the AiM 22 Pin Auxiliary harness you now can add four more analog channels (sensors) like (5) Steering Angle, (6) Throttle Position, (7) Gear Box Temperature, and (8) Differential Temp. Another way we see this cable used is independent shock travel (all corners) or engine oil temperature pre-cooler and oil temperature post-cooler.

AiM 90 22 Pin Auxiliary Harness for MXP, MXG, MXS & MXL2 Dashes 90 This 90 harness plugs into the 22-pin connector on either the AiM MXP, MXL2, MXM, MXG, MXS dash, and AiM EVO5 Logger. Several of the advanced functions rely on this harness, which is not included with the standard kit. AiM 22 Pin Auxiliary Harness for MXP, MXG, MXS, MXL2 Dashes Details: Manufacturer: AiM Manufacturer part number: V02573020 Alternate part number: MC-249 Harness Angle: 90 The AiM 22 Pin Auxiliary Harness will provide access to the following functions: Analog sensor channels 5, 6, 7, 8 Digital wheel speed sensor inputs 2, 3, 4 Digital 12v outputs 1, 2 RS232 ECU connection The factory harness that comes with the AiM MXG, MXS, MXL2 allows only 4 inputs. If you would like more inputs then this is your harnessFor use with AiM MXS, MXP, MXL2, MXG, and EVO5 Dash/Loggers. Not compatible with older AiM MXL Pro / MXL Pro05 or AiM EVO series. AiM 22 Pin Auxiliary Harness for MXP, MXG, MXS, MXL2 Dashes Primary use: Adding analog sensors greater than 4. Your factory harness will allow up to 4 analog channels (sensors), this may be (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure and (4) Brake Pressure. Using the AiM 22 Pin Auxiliary harness you now can add four more analog channels (sensors) like (5) Steering Angle, (6) Throttle Position, (7) Gear Box Temperature, and (8) Differential Temp. Another way we see this cable used is independent shock travel (all corners) or engine oil temperature pre-cooler and oil temperature post-cooler.

AiM Sports GPS09C Module The GPS09C module from AiM further expands the track mapping abilities of AiM data loggers and dash loggers. In addition, the GPS09C allows lap timing (even split times) without the use of trackside beacons, storing data for as many as 50 race tracks and up to five splits per track. The GPS09C can also calculate and log speed, lateral and longitudinal g-forces, and of course vehicle position. The AiM GPS09CC is the basis of lap time and split time calculations in all AiM systems. These systems come with start/finish line coordinates for more than four thousand race tracks, so your dash or logger automatically recognizes the track you are racing on and will calculate lap times and split times. If the track you're on is not in the database, your system will recognizes a new track and then will calculate lap times. High 25 Hz Sampling and Exceptional Accuracy The GPS09C is the latest version, boasting a quicker 25 Hz sampling rate (up from 10 Hz) and positional accuracy to less than one foot (down from over six feet). It also takes full advantage of Race Studio 3 integration of GPS, video, and data. Simple to install: Just connect the CAN cable to your dash and mount the AiM GPS09C antenna to your vehicle. The Standard Version is magnetic-backed and can be installed inside the cabin or on the vehicle exterior. The Roof Version is designed to run the cable through an exterior panel for a clean, secure, more permanent installation. The GPS09C will automatically configure itself during start-up! The AiM GPS09C connects via a 5-pin Binder 712 screw-in connector. Choose a cable length to suit your installation: 0.5m (1.6 ft), 1.3m (4.3 ft) is appropriate for most formula cars and motorcycles; 2.0m (6.6ft) and 4.0m (13.1 ft) are suitable for most sports cars and sedans. AiM GPS09C Module Compatibility MX Series: MXS, MXP, MXG, MXT SmartyCam Series1: Sport, Corsa, GP, Dual Loggers:1: Evo S, Evo 5 Lap Timer: Solo2 DL Power Distribution Modules: PDM32, PDM08 1 not compatible with Pro and Pro Open versions

AiM K8 PDM CAN-Configurable Keypad (8-Button) PDM button inserts are sold separately here This is a CAN-programmable 8-button panel compatible with AiM PDM systems (PDM08 and PDM32). This keypad comes pre-configured for use with AiM protocols and is ready to be programmed through AiM's RaceStudio software. The buttons measure 15mm size and the overall panel size is 127.4 x 71.4 x 24 mm (5.0" x 2.8" x 0.9"). AiM K8 PDM CAN-Configurable Keypad (8-Button) Details Manufacturer: AiM Sports Manufacturer part number: X08KPK8 Weight: 150g (5.2 oz.) Connector: AiM 5-pin Binder 712 Supply voltage: 12-24Vdc, Nominal 8-32Vdc Standy current: <50mA Communications BUS: RS485, CANopen J1939 Operating temperature: -40ºC to 70ºC Thermal shock: -40ºC to 85ºC Salt spray standard: ASTMB117 Chemical resistance: dirt, engine cleaner, isopropyl alcohol, multi-purpose cleaner, muriatic acid Waterproof rating: IP67 Each button's function and backlight can be programmed using AiM Race Studio software. Each button can be set up as momentary, toggle, or multi-position. Once a button is programmed, install the button insert (sold separately) corresponding to its function. The rear connector is a motorsport-grade AiM 5-pin Binder 712 female connector pinned-out for AiM CAN+, GND, Vb, AiM CAN-, and Vbext. AiM K8 Configurable Keypad Common Features Reconfigurable buttons Programmable RGB LEDs LED backlit rings and icons Momentary, toggle, and multi-status Two blinking mode Wide range of inserts CAN-Bus system compatible Vertical or horizontal mount Status restore option

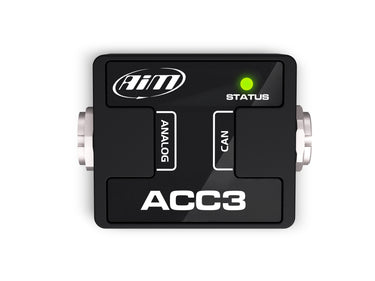

AiM ACC3 Analog CAN Converter This compact CAN device provides virtually endless options to expand your vehicle data acquisition system. The AiM ACC3 adds up to four freely-configurable analog (or two digital and two analog) channels without occupying or modifying any of the existing system channels.  * Not compatible with MXL2, MXS and MXG. Features:  Analog channels 4 fully configurable channels, 200 Hz each: TC, TR, 0÷5 V, 0÷12 V  Speed inputs 2 (AN3-AN4), max frequency 10 kHz, internal pull-up for open drain/collector input  External power 9÷15 V  Connection 1 Analog 8 pins Binder 712+ AiM CAN 5 pins Binder 712  Material PA6 30% glass  Dimensions 44.0 x 38.0 x 19.8 mm  Weight 50 g  Waterproof IP65   SENSORS CONNECTIONS They can manage many different sensors, from thermocouples to sensors whose output is 0÷12V.Please, note that the thermocouples require dedicated compensated cables, so different kits and different harnesses and cables are available.

AiM ECU Bridge with OBDII Connector Connecting to your vehicle's ECU gives your AiM dash/data-logger access to data collected by your ECU (RPM, vehicle speed, coolant temperature, throttle position, and much more). The AiM ECU Bridge works with all AiM units with a male 5-pin Binder 712 connector, including the MXG, MXS, MSM, MXL, MXL Pro Dash Display, G-Dash Display, and Formula Car Wheel Display. SmartyCam connection requires an AiM 7-pin to 5-pin CAN cable included with the SmartyCam. AiM ECU BRIDGE WITH OBDII CONNECTOR DETAILS Manufacturer: AiM Sports Manufacturer part no: X90BGCK12MA Connector 1: OBDII Connector 2: Binder 712 5-pin, male Power cable: car lighter plug for 12VDC connection USB port for PC communication The AiM ECU Bridge features a USB port for easy connection to your computer for set-up. The AiM ECU Bridge has to be configured using RaceStudio 3 software to communicate with the different dashes, cameras, etc., on one side and the ECU on the other side. TYPICAL ECU DATA FROM OBDII PORT RPM Vehicle speed Engine coolant temperature Throttle position sensor Intake air temperature Manifold air pressure Manifold air flow Fuel level Pedal position sensor

AiM ECU Bridge with RS232/CAN Wiring Connecting to your vehicle's ECU through the CAN bus allows your AiM dash/data-logger to tap into a very wide array of data collected by your ECU. The AiM ECU Bridge with RS232/CAN Wiring works with the following AiM displays with a male Binder 712 5-pin CAN connector: MXG MXS MXT MXP MXm SW4 Steering Wheel Connecting a SmartyCam requires the AiM 7-pin to 5-pin CAN cable included with the SmartyCam. The ECU Bridge also features a special port for a USB cable (included) for easy connection to your computer for set-up. ECU Bridge has a CAN/RS232 connection for direct connection to many aftermarket ECUs. AiM has developed hundreds of different protocols to make compatibility with virtually any ECU possible, stock or aftermarket. The AiM ECU Bridge has to be properly configured with RaceStudio 3 software to communicate with the different dashes, cameras. etc., on one side and your ECU on the other side.

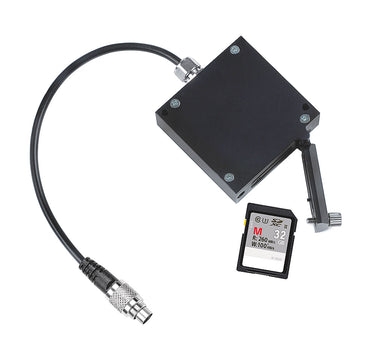

AiM Memory Module for AiM Devices Use SD memory cards1 effortlessly to keep your driver data more organized. This unit allows you to easily swap memory cards in and out to view driver data more efficiently between stints. Using the AiM Memory Module is really simple: just connect the Module to your device and data will be saved simultaneously both in the data-logger and on the SD card. No configuration is needed. The SD card can be removed and replaced even during pit stops, while the car engine is still on, making it extremely fast to get data during endurance races or long tests, when the time in the paddock is really limited. When the session is over, all you need to do is move the SD card from the AiM Memory Module to your PC and download the data using RaceStudio 3. The Module features a front LED showing its recording/updating status. The AiM Memory Module can support up to 32GB SD cards. AiM MEMORY MODULE FOR AiM DEVICES DETAILS Manufacturer: AiM Sports Manufacturer part no: X08MMD040 Cable length: 40cm (16 in.) SD card 1: up to 32GB Power consumption: 50 mA Dimensions: 55.5 x 78.3 x 18mm (2.2 x 3.1 x 0.7 in.) Weight: 103g (3.5 oz.) Waterproof: IP65 CONNECTS VIA CAN BUS TO THESE AiM DEVICES MXL2 MXG (1st gen) MXS (1st gen) EVO4S EVO5S MXT 1.3 MXG 1.3 MXP 1.3 MXS 1.3 PDM08 PDM32 1 SD card is not included

AiM Sports MyChron 5 Karting Steering Wheel Precision Meets Performance Dominate every lap with complete control and data at your fingertips. The AiM Sports MyChron 5 Karting Steering Wheel integrates perfectly with your MyChron 5 series dash, offering the ultimate synergy of ergonomics, lightweight design, and racing technology. Whether you're a seasoned competitor or a rising karting star, this premium kart steering wheel gives you the grip, feedback, and focus needed to shave tenths and stay ahead. Crafted from high-strength aluminum and wrapped in high-grip Alcantara, the MyChron 5 Steering Wheel is designed for aggressive track use. Its pre-machined mounting hub ensures a seamless fit with the MyChron 5 dash system, while the optimized hand positions support both comfort and responsiveness during long sessions. For drivers serious about extracting every ounce of performance, this karting steering wheel is a game-changer on the track. AiM Sports MyChron 5 Karting Steering Wheel Product Highlights The MyChron 5 Kart Steering Wheel has been specifically designed for oval karts; its shape allows a perfect view of the track with your MyChron 5 placed in the best position to keep data available at a glance. Designed specifically for seamless integration with AiM MyChron 5 dash Ergonomic, lightweight aluminum kart steering wheel construction High-grip Alcantara/Koram Nubuk wrap for superior handling and comfort in all conditions Pre-drilled hub for quick and precise MyChron 5 installation Ideal for professional and amateur kart racing performance upgrades Keep Your Kart Data at Your Fingertips The ideal complement for your AiM MyChron 5, this steering wheel is lightweight and ergonomic. And it allows you to put your MyChron 5 in the best position: right in front of you. You can fully access the power of the MyChron 5, viewing your data at a glance while maintaining optimum driving precision. Designed with a flat bottom and curved top, the AiM MyChron 5 Steering Wheel is made of an anodized aluminum frame with Alcantara grips and durable Koram Nubuk covering on the sides. The rugged and ergonomic MyChron 5 Oval Steering Wheel is a balanced mix of great design, excellent feel, and top technology all at your fingertips! Safety Is Always Front and Center The outer rim of the AiM MyChron 5 Karting Steering Wheel has been designed without edges, to avoid any problem in case of accident. Different from traditional aluminum/steel steering wheels, the MyChron 5 Steering Wheel utilizes polyurethane to minimize vibration on the driver's hands. This greatly reduces driver fatigue. The MyChron 5 Karting Wheel is easy to install, resistant to all weather conditions, and jet-washable without any problem. AiM Sports MyChron 5 Karting Steering Wheel Specifications Fits: AiM MyChron 5, MyChron 5S & MyChron 5S 2T Covering: Koram Nubuk + Alcantara Weight: 600g (1.3 lbs.) Dimensions: 340 mm (13.4 in.) x 320 mm x 32 mm Chassis: Anodized aluminum Covering: Alcantara and Nubuck Leather Feel free to call the karting experts at Discovery Parts with any questions you have about the AiM MyChron 5 Kart Racing Steering Wheel!
