AiM OBDII Harness for MX-Series 1.2 Strada Dashes This OBDII harness from AiM Sports is compatible with the AiM MXS 1.2 Strada, MXP 1.2 Strada, and MXG 1.2 Strada street dashes1. Designed to seamlessly connect via a 14-pin AMP connector on the rear of the dash, this harness ensures efficient power, ground, USB, and CAN connections. Additionally, it facilitates a direct ECU link through the vehicle's OBDII diagnostic port. Ideal for production vehicles equipped with an OBDII port, the harness supports both CAN and K-Line communication standards. 1 AiM MX Strada Series dash sold separately

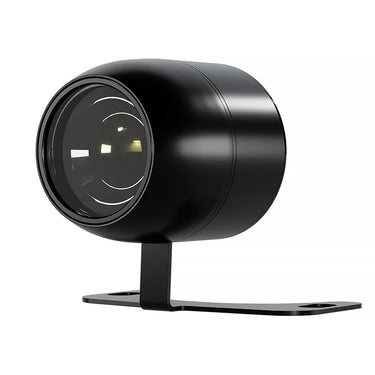

 AiM Reverse or Side Mirror Camera AiM Reverse/Side View wide-angle camera is designed for use with any modern AiM Dash. Featuring a wide 170° horizontal field of view, we use this camera to get excellent rear- and side-views in sealed prototype racers where normal mirrors don't provide adequate visibility. AiM REVERSE/SIDE VIEW CAMERA DETAILS: Manufacturer: AiM Manufacturer part no.: XB1ZCAMHD00 Optical sensor: 1/4 inch color CMOS TV system: NTSC Lens FOV: 170° Resolution: 648x488 px Frame rate: 60 fps Temperature range: -30ºC to 80°C Patch cable included: No, use AiM-V02573410

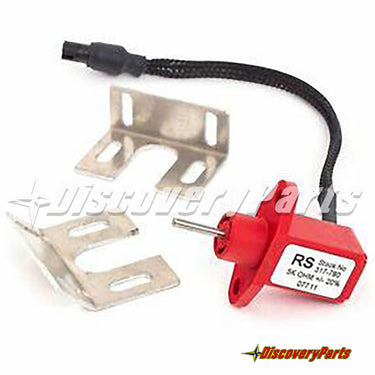

AiM Kart Racing Steering Angle Sensor Measure and log your kart driver's steering input with the AiM Steering Angle Sensor. Includes a rotary potentiometer with a male 4-pin 719-style connector, two toothed pulleys, one toothed belt, and one sensor mounting bracket. The steering shaft pulley is designed to fit a 7/8"-diameter shaft. (Smaller shafts will need to add a bushing to fit the pulley.) This sensor is designed to measure up to five complete turns of the steering column. This sensor requires the addition of an Expansion Box or eBox when used with MyChron3 Extreme, MyChron4, and MyChron5 kart dash loggers. If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. AIM-MC-280) instead. The String Pot can work with any diameter steering shaft.

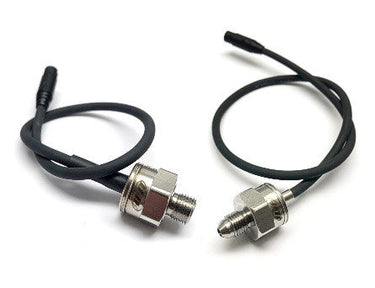

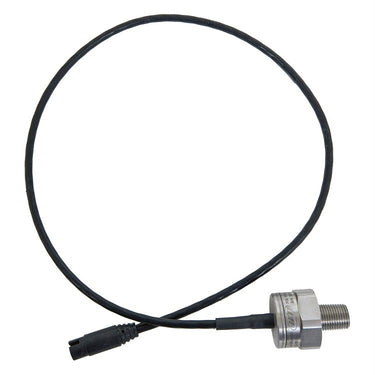

AiM Low Pressure Sensor 0-15 psi 1/8NPT This sensor has a 4-pin 719 (plastic push-on) connector and a male 1/8 NPT thread. AiM 1/8 NPT 0-15 psi Pressure Sensor is ideal for Coolant Pressure or low boost sensing measuring. When installed in the coolant system, you can sense a reduced coolant system pressure (leak) before your coolant is exhausted and engine is overheated. AiM 1/8 NPT Automotive Oil Pressure Sensor for Measuring 0 to 15psi for AiM MyChron, MXG, MXS, MXM, MXL2, MXL, EVO3, and EVO4 automotive applications. 1/8 NPT male threads direct into the block. AiM 0-15 psi Low Pressure Sensor 1/8 NPT Details: Manufacturer: AiM Manufacturer part number: X05PSA00015P18 Manufacturer alternate part number: PRS-832 1/8 NPT Alternate part number: MC-3XX 1/8NPT End 1: 719 4 Pin Push-On Male End 2: 1/8" NPT

AiM Brake Pedal Position Sensor, Linear Travel Pot (Auto) The AiM linear short stroke (10mm) displacement potentiometer is most popular ideal for measuring brake pedal movement. A pedal travel sensor such as this can be simpler to install in many vehicles than plumbing a pressure sensor in the brake line. Normally mounted in front of the brake pedal (between the driver and the pedal) so the sensor is depressed when the brakes are off. This will reduce the likelihood of sensor damage or interference with pedal travel in the event of brake fade. The sensor should be mounted close to the pedal pivot, and at an angle that minimizes side loading on the plunger. The compact sensor body measures just 3/4" (19mm) OD x 1 3/8" (35mm) long overall (less plunger). Two 1/4" (6mm) mounting holes are located 1.34" (34mm) center-to-center. This sensor has a 200mm (7 3/4") long cable with the 719 (four-pin plastic push-on type) connector. Use a My Chron 719-719 Patch Cable (Part No. MC-211) to connect to an AiM MXL Pista, MXL Pro, MXL2, MXG, MXS, or MyChron3 Auto dash (except XG-Log). XG-Log and EVO4 require a 712-719 Patch Cable (Part No. MC-210) for connection. AiM Brake Pedal Position Sensor, Linear Travel Pot (Auto) Details: Manufacturer: AiM Manufacturer part number: X05SNLPRSO Alternate part number: AIM-MC-321 Range: 10mm (.375 Inch) Electrical Connection Type: 719 (4 pin push-on style) Mounting eyelet: 6mm (1/4") on 34mm (1.34") bolt centers

AiM Steering Angle Sensor, Belt Type (Auto) The steering shaft pulley is designed to fit a 7/8" diameter shaft. Smaller shafts will need to add a bushing to fit the pulley. This sensor is designed to measure up to 5 complete turns of the steering column. This sensor can connect directly to the AiM MXL Pista / Pro dash, MXL2 / MXG / MXS dashes, or the EVO3 series data loggers. The MyChron3 XG-Log and the EVO4 logger both require a 712-719 Patch Cable (Part No. MC-210).We also offer the Replacement AiM Steering Angle Sensor Belt (Part No. MC-336) separately. DiscoveryParts Pro Tip: When mounting the sensor, locate the mount a little farther away than you might expect and use shims to bring the supplied bracket closer. If the belt tension is too loose, remove a shim or two to adjust. If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. LX-PA-10-AIMSP) instead. The String Pot can work with any diameter steering shaft.

AiM Sports Position Sensors NOTE: Sensors typically take 3 to 5 business days to ship. Add the appropriate AiM Sports Position Sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! All sensors have a 30cm (12 inch) cable length

AiM Magnetic Pedal Position Sensor For MyChron5 The accelerator/brake pedal position sensors is a crucial support device for kart drivers. They provide a precise indication of timing and intensity of braking and/or acceleration. This permits the team to understand whether the driver has accelerated or braked at the right moment, with the correct pedal strength, across multiple laps and overlaid with other critical data. This is a very important factor in evaluating driver behavior and improving his/her performance. Data can be acquired by your MyChron5 connected to a MyChron Expansion and analyzed on your PC. Made in anodized aluminium, these sensors are very robust and water-resistant. Calibration is immediate: once installed, connect the sensors to your MyChron Expansion and get pedal positions (in high position and zero position). After that the sensor will start getting acceleration or braking data. Call us with any questions you have about the incredible new MyChron5 2T from AiM!

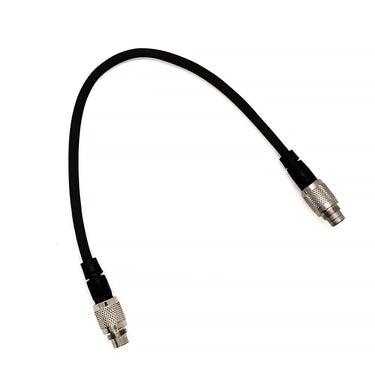

AiM Sports Track Day Suction Mount for SmartyCam 3 & Solo 2 DL The AiM Track Day Mount serves as an all-in-one solution for attaching both your AiM Solo 2 DL and your AiM SmartyCam 31 to your windshield. The Track Day Mount is compact, straightforward to use, and consolidates your equipment neatly, eliminating the need for two separate mounts and minimizing cable clutter. The powerful suction cup provides a secure hold on any smooth, clean surface. The robust suction cup ensures a secure grip on any smooth, clean surface. With a custom-designed contoured arm and ball mounts, the AiM SmartyCam 3 faces forward, capturing the view through the windshield, while the AiM Solo 2 DL faces the driver. This specialized suction-cup mount from AiM is an ideal choice for track days! Add the Trackday Kit Short Cable to your order using the dropdown above and connect your Solo 2 DL and SmartyCam 3 with the absolute minimum of cable clutter! 1 AiM Solo 2 DL and SmartyCam 3 (pictured) sold separately.

AiM Mercury 849849 AXX_New+FC12 ECUs Mercury 849849 ECUs feature a serial communication protocol. To connect AiM device to these ECU adedicated AiM interface cable is needed. This cable part number is: X50EN849849. Here below it isshown. Mercury 849849 ECUs are equipped with a 4 pins AMP female connector that must be connected toAiM interface male one shown here below. Mercury 849849 AXX interface cable has four flying leads you can connect to AiM devices.Please refer to your device pinout to know the pins to be used. Here below you find wiring diagram and connection scheme Cable Function AiM cable colour AiM device RS232RX White RS232RX/ECU RS232TX RS232TX Blue RS232TX/ECU RS232RX +12V Red +12V GND Black GND Please note:AiM wiring harnesses supplied after September 2018 have the following labels:ECU RS232TX (white) to be connected to ECU TX pinECU RS232RX (blue) to be connected to ECU RX pin (if indicated in the connection table above)AiM wiring harnesses supplied before September 2018 have the following labels:RS232RX (white) to be connected to ECU TX pinRS232TX (blue) to be connected to ECU RX pin (if indicated in the connection table above) Race Studio configuration Before connecting AiM devices to the ECU, set all functions using AiM software Race Studio. Theparameters to set in the device configuration are:• ECU manufacturer Mercury• ECU Model according to your ECU version or to its firmware version: 849849_Axx849849_Axx_New FCR12 Available Channels Channels received by AiM devices connected to “Mercury – 849849_Axx”, “849849_Axx_New” or“FCR12” protocol are the same and here below they are listed: CHANNEL NAME FUNCTION MER_RPM RPM MER_TAIR Intake air temperature MER_TENG Engine temperature MER_MAP Manifold air pressure MER_INJT Injection time MER_ECU_TRIM ECU Trim MER_FUEL_GRP1 Injection volume for injectors group 1 MER_FUEL_GRP2 Injection volume for injectors group 2 MER_FUEL_GRP3 Injection volume for injectors group 3 MER_FUEL_A Number after air temperature compensation MER_FUEL_B Number after engine compensation MER_FUEL_C Number after dynamic acceleration compensation MER_FUEL_D Number after cold piston compensation MER_FUEL_T Fuel temperature MER_ECU_TEMP ECU Temperature MER_ONTIMECONS Real time consumption MER_ECU_BATT Battery supply

AiM SmartyCam GP HD 2.2 Link Serial Cable - 2 Meter AiM AiM SmartyCam GP HD 2.2 Replacement Serial Cable V02566980 goes from the AiM SmartyCam Processor to the lipstick camera. Working with both 67 and 84 camera lens, the AiM V02566980 replacement cable in 2 meter length easily threads on to the camera SMA connection (small thread-on collar with single center conductor) and the processor SMA connection. AiM SmartyCam GP HD 2.2 Link Serial Cable - 2 Meter Details: Manufacturer: AiM Manufacturer part number: V02566980 Fits AiM SmartyCam GP HD 2.2: Yes Fits AiM SmartyCam GP HD 2.1: No Length: 2 Meters End 1: SMA thread on End 2: SMA Thread on Why would you need this cable? The most common issue is when the wire ties used to secure the cable to the cage are over-tightened to where the outer shielding is crushed into the center conductor. Also we have seen extra cable looped in a circle and wire tied around itself to "clean up the area". This cable requires a minimum 8D bend radius. If you are unfamiliar with Bend Radius, Wikipedia saves us: Bend radius, which is measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet, cable or hose without kinking it, damaging it, or shortening its life. The smaller the bend radius, the greater is the material flexibility (as the radius of curvature decreases, the curvature increases).

AiM Data Hub Connects SmartyCam 2.0 & Older to GPS09C Connect the latest AiM GPS09C GPS module to a stand-alone SmartyCam HD or GP-HD (prior to version 2.1) with this special AiM powered data hub. AiM DATA HUB OLDER SMARTYCAM TO GPS09C DETAILS Manufacturer: AiM Sports Manufacturer part no: X08HB2GK3 Wiring leads 1: Red (12VDC) Wiring lead 2: Black (ground) Port 1: Female Binder 712 5-pin Port 2: Female Binder 712 5-Pin ADD GPS TO YOUR OLDER SMARTYCAM The AiM SmartyCam HD and SmartyCam GP-HD (prior to version 2.1) were designed to work with dedicated SmartyCam GPS modules, especially when the camera was used as a stand-alone unit. This older GPS module is no longer available, so the AiM Data Hub allows users needing a GPS module to plug the latest AiM GPS09C directly into their older SmartyCam. This SmartyCam/GPS09C Data Hub hosts both the GPS09C module and the SmartyCam CAN cable via its two Binder 712 5-pin ports. The Data Hub also provides an external 12VDC cable to be connected to a vehicle electrical system. As a modified version, this SmartyCam/GPS Data Hub will not connect to an existing AiM data-logger.

AiM Magnetic Wheel Speed Sensor - 719 Lead This sensor has the 719 (four-pin plastic push-on type) connector to connect to the MyChron3 Plus or Gold Auto dashes, any AiM MXL series dash, or any EVO3 series data logger. The MyChron3 XG-Log requires a 712-719 Patch Cable (Part No. MC-210). The EVO4 requires either the MC-210 patch cable or the Y-Cable for Dual Speed Sensors (Part No. MC-264). The front of the sensor has M8 threads for easy mounting in a bracket you supply. We also offer Replacement Speed Sensor Magnets for installation on a spare wheel, or for adding multiple trigger points. Tip: Add a longer 719-719 Extension Cable (Part No. MC-211, sold separately) and install your wheel speed sensor with the plug near the suspension pick-up point. In the event of crash damage, the sensor will be much easier to replace without fishing a new lead through the car.

AiM SmartyCam GP HD Suction Mount This adjustable mount holds your AiM SmartyCam GP HD Rev 2.2 securely to your windshield, allowing you to quickly mount your camera and keep it pointed in the right direction during races, track days, and other driving events. Two pivoting ball joints allow a wide range of adjustment, and the 3 1/2" diameter lever-actuated suction cup base works on any smooth, clean, flat surface. The machined aluminum collar accepts a lipstick-type camera measuring 24mm (0.94") OD. You can also eliminate the collar to mount a lightweight, compact camera with a standard 1/4-20 tripod mount (including SmartyCam and SmartyCam HD). KIT INCLUDES: Suction cup base Lower ball clamp 60mm clamp arm Top ball with 1/4-20 mounting stud Machined collar

AiM SmartyCam HD Suction Mount This adjustable mount holds your AiM SmartyCam HD Rev 2.1 securely to your windshield or any other smooth, flat surface. Allows you to quickly mount your camera and keeping it pointed in the right direction during track days and other racing events. Two pivoting ball joints allow a wide range of adjustment and the 3 1/2" diameter, lever-actuated suction cup base mounts incredibly securely. KIT INCLUDES: Suction cup Clamp base with ball (screws provided) 60mm single clamp arm Ball head with 1/4-20 threaded stud Ridged washer
