AiM SmartyCam GP HD 2.2 Link Serial Cable - 2 Meter AiM AiM SmartyCam GP HD 2.2 Replacement Serial Cable V02566980 goes from the AiM SmartyCam Processor to the lipstick camera. Working with both 67 and 84 camera lens, the AiM V02566980 replacement cable in 2 meter length easily threads on to the camera SMA connection (small thread-on collar with single center conductor) and the processor SMA connection. AiM SmartyCam GP HD 2.2 Link Serial Cable - 2 Meter Details: Manufacturer: AiM Manufacturer part number: V02566980 Fits AiM SmartyCam GP HD 2.2: Yes Fits AiM SmartyCam GP HD 2.1: No Length: 2 Meters End 1: SMA thread on End 2: SMA Thread on Why would you need this cable? The most common issue is when the wire ties used to secure the cable to the cage are over-tightened to where the outer shielding is crushed into the center conductor. Also we have seen extra cable looped in a circle and wire tied around itself to "clean up the area". This cable requires a minimum 8D bend radius. If you are unfamiliar with Bend Radius, Wikipedia saves us: Bend radius, which is measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet, cable or hose without kinking it, damaging it, or shortening its life. The smaller the bend radius, the greater is the material flexibility (as the radius of curvature decreases, the curvature increases).

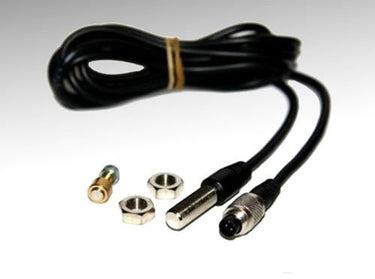

AiM Magnetic Wheel Speed Sensor - 712 Lead The AiM Magnetic Wheel Speed Sensor with a 712 lead is designed to deliver precise wheel speed measurements for data acquisition systems. Built with durability in mind, this sensor is ideal for motorsports applications where accuracy and reliability are critical. Its magnetic pickup design ensures dependable readings even in demanding track environments. Reliable Wheel Speed Data for Accurate Analysis This AiM sensor connects seamlessly with AiM data loggers and dashes, providing accurate wheel speed information crucial for lap timing, telemetry, and performance analysis. Whether you're fine-tuning your setup or analyzing post-session data, this sensor is a must-have for extracting maximum performance from your vehicle. Features: • Precision magnetic wheel speed pickup compatible with AiM systems• 712 lead connector for secure and reliable integration• Rugged motorsport-grade construction for track use• Provides critical data for telemetry and driver coaching• Easy installation and plug-and-play connectivity with AiM devices AiM Magnetic Wheel Speed Sensor - 712 Lead FAQs: What AiM devices is this sensor compatible with? This sensor works with AiM loggers, dashes, and data systems that support a magnetic wheel speed input with a 712 lead connector. How is the AiM Magnetic Wheel Speed Sensor installed? It mounts near a wheel or axle with a magnetic target. It connects directly to your AiM system using the included 712 lead connector. Is this sensor suitable for all motorsports applications? Yes, it is built for both amateur and professional racing use, including cars, bikes, and karting setups. Why is wheel speed data important? Accurate wheel speed information is critical for traction control tuning, lap analysis, and optimizing performance during data review. Upgrade your AiM data system with the precision and reliability of the AiM Magnetic Wheel Speed Sensor - 712 Lead. Order today from Discovery Parts and get the performance data you need to dominate at the track!

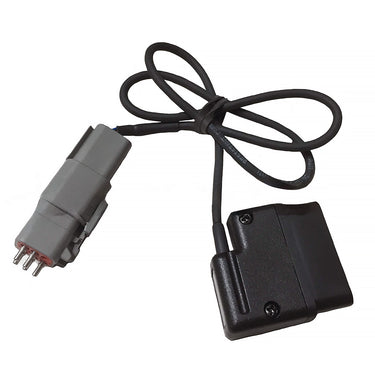

AiM OBDII to MXL2, MXS & MXG Dash Cable Special AiM cable for connecting an AiM dash like the AiM MXS, MXG, MXL Pro, and Evo 4 to an OBDII port on your car. This is a special cable that takes your OBDII (K-Line) car connector and connects to the next generation AiM dashes via the Deutsch DTM Connector. If your harness does not have a Deutsch DTM connector, we can have your harness professionally modified. You will need to send us your harness for this custom work, which typically takes seven to ten days to complete. Please contact us at (888)748-7223 to make arrangements to have your cable modified. AiM OBDII to MXL2, MXS & MXG Dash Cable Details: Manufacturer: AiM Sports Manufacturer part number: AIM-OBDII Manufacturer alternate part number: MC-285 Fits OBDII to AiM MXS Fits OBDII to AiM MXG Fits OBDII to AiM MXL2 Fits OBDII to AiM Evo 4

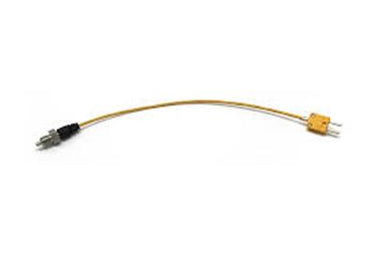

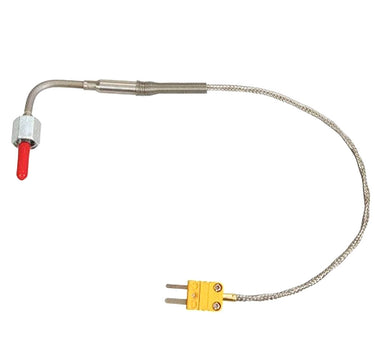

AiM Sports EGT Thermocouple Sensors Add the appropriate AiM Sports Exhaust Gas Temperature sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! AiM devices can measure exhaust gas temperature using a sensor – thermocouple – placed in the exhaust header pipe. All AiM thermocouples are K-type sensors and fit car, motorcycle, and karting installations. Cable length is 250mm (~10 in.) TEMPERATURE SENSOR TYPES K-type thermocouple, M5 thread (includes weld nut) K-type thermocouple, T12 (CIK-FIA homologated)

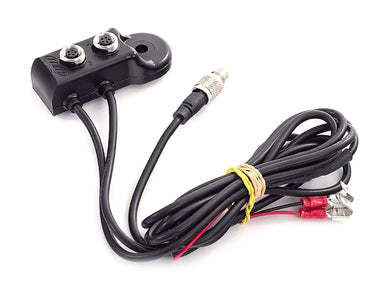

Aim Sports 4-Port Data Hub The acquisition of the essential data you need to evaluate your race car's performance requires the connection of a lot of peripherals to your AiM data-logger. This, in turn, requires a great number of cables. To solve this problem, AiM developed the Data Hub, a CAN connection multiplier that works as an interface between all AiM data-loggers and their various peripherals. Extend the capabilities of your AiM data-logger without occupying any more channels or running more cables to your dash. Each AiM 4-Port CAN Data Hub connects up to four CAN peripherals. You can even stack as many as four AiM Data Hubs, multiplying the number of available connections! Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (thermocouple) Hubs. Any channel can be selected for display on the dash. Includes a 15-inch cable. AiM 4-PORT CAN DATA HUB DETAILS Manufacturer: AiM Sports Manufacturer part no: X08HUB010 Connectors 1-4: Binder 712 5-pin, female (from peripherals) Connector 5: Binder 712 5-pin, male (to dash) Dimensions: 123 x 30 x 23.5mm (4.8 x 1.2 x 0.9 in.) CAN cable length: 40cm (15.75 in.) Weight: 97g (3.4 oz.) Waterproof: IP65 AN EXAMPLE OF A COMPLEX SETUP Let's take a V-8 race car with an AiM MXG 1.3 dash plus the following peripherals: One EGT sensor on every cylinder (8) Two CHT sensors on each cylinder bank (4) One Lambda sensor on each exhaust header (2) One GPS09C module One AiM Memory Key You would need three TC Hubs and two Data Hubs. The EGT and CHT thermocouples would all connect to the three TC Hubs. The TC Hubs and the GPS09C connected to one 4-Port Data Hub. That Data Hub would be connected, the two Lambda controllers, and the Memory Key connect to a second 4-Port Data Hub. And that Data Hub would connect to your AiM MXG 1.3 dash. That's sixteen channels monitored by the MXG 1.3 in addition to the other channels still available. That puts an enormous amount of data  right at your fingertips!

AiM Cable for Reverse or Side Mirror Cameras The AIM V02573410 Y-cable is intended specifically to connect two AiM Analog Rear Cameras to your AiM "1.2" version MX-Series dash MXS 1.2/1.3, MXP, or MXG 1.2/1.3 including Strada versions. AiM Cable for Reverse or Side Mirror Cameras Details: Manufacturer: AiM Manufacturer part number: V02566300 This long cable features two length different leads from your dash, one measuring 6 meters (19 feet 8 inches) from the dash and the other camera 4 meters (13 feet). The most common applications are using one camera as a backup camera and another as a rearview mirror or front-facing curb view camera, or for both side mirrors.

AiM MXL 3.5mm Download Cable AiM MXL Download Cable to download your data from your MXL Dash to your laptop. The AiM MXL Download Cable & CD Kit lets you easily transfer your AiM Data to your Laptop. AiM MXL 3.5mm Download Cable Details: Manufacturer: AiM Manufacturer part number: X10MXLPC01 Manufacturer alternate part number: MC-009-MXL End 1: 3.5mm male End 2: USB AiM MXL USB download cable has a male 1/8" (3.5mm) stereo plug to connect to most MXL series dashes (except those made in 2004 and those supplied in Seat Leon Cup or Formula Renault cars). Note that all MXL series dashes can also use the Memory Key Download Tool (Part No. MC-315) rather than a USB cord for easy data transfer. MXL Pista dashes also have the option to plug the MyChron3 Plus Download Cable (Part No. MC-009-Plus) into the sensor harness if the side port is blocked. Each download cable includes access to free Race Studio software download. AiM Race Studio 2 Software lets you analyze the data from your MXL Pista or Pro dash in an organized and highly professional way. Your data can be analyzed in several different styles thanks to graphs, histograms, comparisons between lap data and test data, and time comparison tables. Many calculation features are available like math channels and power and torque calculators. Race Studio 2 software is also required for setting up any MXL dash. Compatible with Windows 10, Vista, 98 SE, 2000, ME, XP, 7, and 8 and functions in several different languages: English, Italian, German, French, Spanish, Dutch, Portugese, Finnish, and Japanese. This is an excellent spares kit item as other racers borrow it and "forget" to return it. Be prepared and get faster.

The original AiM SmartyCam (2009-2013) and new SmartyCam HD V 2 / SmartyCam HD GP all have an internal microphone for great racing sound, but it does limit your sound options. This special cable has a 3.5mm mono jack for an external microphone. The input from this jack automatically mixes with the sound from the SmartyCam internal microphone. SmartyCam Microphone Cable Fitment Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD "Rev 2" or later (2015+) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD GP "Rev 2.1" or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge AiM SmartyCam CAN Cable with Microphone Jack, 4M Details: Manufacturer: AiM Manufacturer part number: V02566300 Alternate part number: MC-552 Dash, Solo DL, Solo 2 DL End: 5 Pin Male 712 SmartyCam End: 7 Pin Male 712 Microphone jack: 3.5mm female mono Cable length: 4M (13 feet) Length from 7 pin 712 to "Y" Adapter: 50mm Length from Y adapter to 5 pin 712" 4 Meter Length from Y adapter to microphone 3.5mm female jack: 900mm The 7-pin 712-type connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures 4M (13 feet) long. 3.5mm mono microphone jack is attached to the lead. This cable is not compatible with the SmartyCam HD, which has a 5-pin plug.

AiM SmartyCam CAN Cable with In-Line External Microphone, 4M Add An External Microphone to your AiM Solo DL with SmartyCam Orig or SmartyCam HD V.2 with this AiM connection cable. This special CAN cable plugs into the CAN port on the original AiM SmartyCam (2009-2013) and the HD Version 2 to connect to your AiM data logger, SMC Bridge, etc. An external microphone is incorporated into the cable. The input from this microphone automatically mixes with the sound from the SmartyCam internal microphone for enhanced sound. Measures 4M (13 feet) long. This CAN cable has a 7-pin 712 (screw-in) connector on the camera end. It is not compatible with the SmartyCam HD (Orig Version 1), which has a 5-pin plug. SmartyCam Microphone Cable Fitment Fits Solo DL & SmartyCam Orig (Grey Unit) Fits Solo DL & SmartyCam HD Rev.2 (Black Box w/ Red Ring Around Lens) Fits Solo DL & SmartyCam HD Rev.2 Plus (Black Box w/ Black Ring Around Lens) Camera End: 7-Pin 712 Screw-in connector Can End: 5-Pin 712 Screw-in connector AiM SmartyCam CAN Cable with In-Line External Microphone, 4 Meter Details: Manufacturer: AiM Manufacturer part number: V02566240 Length- 4 Meters (13 Feet)

AiM Patch Cables With 3.5mm Microphone Input Connect your sensors and loggers with AiM Sports patch cables. These cables include a 3.5mm female connector for using an external microphone. Perfect for overlaying your comms with your video and/or data.

Harness Adapter for 2004-2007

AiM Sports SmartyCam GP HD Base Mount Kit This strong, adjustable mount holds your AiM Sports SmartyCam GP HD base unit securely to your roll bar or harness bar. Two pivoting ball joints give you lots of adjustment while keeping it safe and secure during races and track days while the V-shaped base and two different size hose clamps fit a wide range of tubing sizes, from 1" to 2" OD. The rectangular base adapter provides a stable, bolt-on base for secure mounting of the SmartyCam GP base. The wide range of adjustment lets you aim the viewing screen in just about any direction. Includes V-base with ball, double clamp arm, top ball with 2-bolt diamond mounting flange, rectangular mount base adapter, 2 hose clamps, and rubber isolator strap.

AiM MyChron 5 Battery Replacement Pack Have a charged extra MyChron 5 battery pack, ready to go. Be ready for anything on the kart track with this rechargeable Lithium battery. You will no longer need to carry with you or worse, locate at your track, your dead MyChron 5 Battery. The MyChron 5 rechargeable battery lasts more than ten hours. Charge it in your shop, trailer, or truck just like a cell phone and use it all day long. MyChron 5 can also be powered by an external 12V power source if you are running external sensors or AiM SmartyCams. AiM MyChron 5 Battery Replacement Pack Details: Manufacturer: AiM Manufacturer part number: 2BT18650TDM Manufacturer alternate part number: AIM-MC-111 Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No

AiM SmartyCam GP HD Suction Mount This adjustable mount holds your AiM SmartyCam GP HD Rev 2.2 securely to your windshield, allowing you to quickly mount your camera and keep it pointed in the right direction during races, track days, and other driving events. Two pivoting ball joints allow a wide range of adjustment, and the 3 1/2" diameter lever-actuated suction cup base works on any smooth, clean, flat surface. The machined aluminum collar accepts a lipstick-type camera measuring 24mm (0.94") OD. You can also eliminate the collar to mount a lightweight, compact camera with a standard 1/4-20 tripod mount (including SmartyCam and SmartyCam HD). KIT INCLUDES: Suction cup base Lower ball clamp 60mm clamp arm Top ball with 1/4-20 mounting stud Machined collar
