AiM Solo2 & Solo2 DL AC Wall Charger The AiM X06A12VBM, is the wall charger in every new AiM Solo2 and Solo2 DL kit. This wall charger takes the US 120VAC wall outlet and adapts it to the required 12VDC you need to charge your AiM Solo2 or Solo2 DL the night before your event.  AiM Solo2 & Solo2 DL AC Wall Charger Details Manufacturer: AiM Manufacturer part number: X06A12VBM End 1: Male 712 5 Pin Screw-in End 2: US 120VAC Wall Adapter AiM Solo2 & Solo2 DL AC Wall Charger Uses Charge Solo2 from any US 120V wall outlet Charge Solo2 DL from a US 120V wall outlet

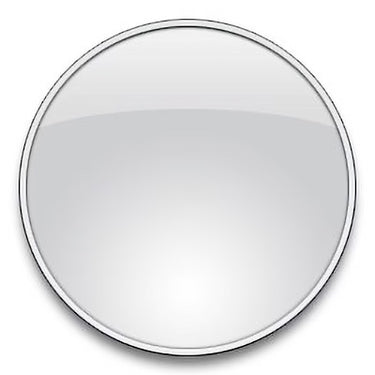

AiM SmartyCam GP Replacement Lens 84º AiM SmartyCam GP bullet camera replacement lens with an 84º field of view. The 84º lens is usually used in Formula cars, karting & bike applications as it allows a wider left to right viewing area compared to the 67º lens. This kit includes a brand new genuine AiM 84º lens and the special weather- and harmonic vibration-resistant O-ring. AiM SMARTYCAM GP REPLACMENT 84º LENS DETAILS: Manufacturer: AiM Sports Manufacturer part no: X96KVBGPHD Field of view: 84º O-ring included: Yes

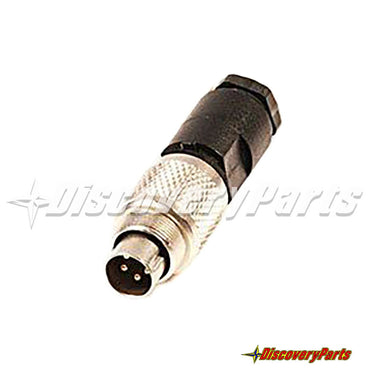

AiM 712 5 Pin Male Binder Connector This 712 AiM 5 pin threaded connector with male pins is a common cable end on many AiM CAN connections. If you are shortening or making custom length cables, the AiM 9904130005 Binder 712 5-pin/Male is a common part. AiM 712 5 Pin Male Binder Connector Details: Manufacturer: AIM Manufacturer part number: 9904130005 AiM 712 5 Pin Male Binder Connector Common Uses: AiM 712 Custom length cables Adapting external non-AiM components into your AiM system Replacement of a damaged cable end

AiM Collar Clamp Mount Adapter for SmartyCam GP3 and HD GP Lightweight billet aluminum and made just for your AiM SmartyCam3 GP or HD GP, this collar adapter lets you mount your AiM SmartyCam3 GP or SmartyCam HD GP on any mount with a standard 1/4-20 male stud. The black anodized aluminum collar fits other "lipstick" cameras with a 24mm (0.94") outside diameter. Measures 10mm (0.4") wide. AiM COLLAR CLAMP MOUNT ADAPTER FOR SMARTYCAM3 GP DETAILS Manufacturer: AiM Sports Manufacturer part number: HSCFKB00A Alternate part number: MC-589 Color: Black Material: Anodized aluminum ID of bore: 24mm ID of bore: 0.94" Width: 10mm Width: 0.4"

  AiM Sports 719 Extension Cables AiM Sports 719 Extension Cables connect your AiM pressure or temperature sensors to your primary or auxiliary harness. The AiM 719 extension cable has one male (dash side) and a female (sensor side) 719 connector in your choice of lengths. The AiM 719 connection is identified as a black plastic 4 pin connector. Use these extension cable to connect additional sensors to the following AiM Sports Dashes: MXG MXS MXL2 MXL Strada/Pista/Pro 05   Part numbers:   V02PCB05B cable length: 0.5m - 1.6ft V02PCB10B cable length: 1m - 3.3ft V02PCB15B cable length: 1.5m - 4.9ft V02PCB20B cable length: 2m - 6.6ft V02PCB25B cable length: 2.5m - 8.2ft V02PCB30B cable length: 3m - 9.8ft V02PCB40B cable length: 4m - 13.12ft

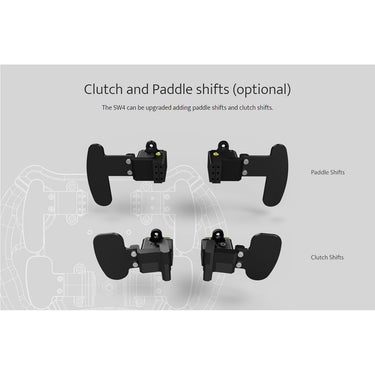

AiM - The New Steering Wheel SW4 is one of the most versatile steering wheels in the market,compatible with a long list of ECU protocols, to meet any driver’s need. Choose your size Compatible with more than 2,000 ECU protocolsSW4 is one of the most versatile steering wheels in the market, with a long list of compatible ECU protocols, to meet any driver’s need. Freely configurable pagesThe high contrast TFT display offers a wide range of possible graphic data layouts,showing the driver all the information he needs in real time. Individually configurable pushbuttons!8 completely configurable buttons and 2 additional free contact normally open buttons.Rotary switchesSW4 has 3 completely configurable rotary switches.One by one configurable LEDs, Shift lights can be configured for each gear, choosing LED color and RPM threshold values which will turn it on/off.The 4 Alarms LEDs are configurable too. Clutch and Paddle shifts (optional)SW4 can be upgraded adding paddle shifts and clutch shifts.

AiM Sports Temperature Sensor NOTE: Sensors typically take 3 to 5 business days to ship.   Add the appropriate AiM Sports Temperature Sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level!

AiM MyChron 5 Battery Block Off Plate AiM MyChron 5 battery block off plate is used when you use an external power cable to power you MyChron 5 dash. By powering your MyChron 5 by your kart battery, you now have an almost eternal power supply for your kart dash. To seal your MyChron 5 against the elements, this AiM battery block off plate kit is used. AiM MyChron 5 Battery Block Off Plate Details: Manufacturer: AiM Manufacturer part number: X80MYC5TPB Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No Hardware included: Yes

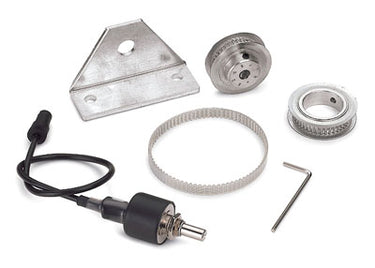

AiM Steering Angle Sensor, Belt Type (Auto) The steering shaft pulley is designed to fit a 7/8" diameter shaft. Smaller shafts will need to add a bushing to fit the pulley. This sensor is designed to measure up to 5 complete turns of the steering column. This sensor can connect directly to the AiM MXL Pista / Pro dash, MXL2 / MXG / MXS dashes, or the EVO3 series data loggers. The MyChron3 XG-Log and the EVO4 logger both require a 712-719 Patch Cable (Part No. MC-210).We also offer the Replacement AiM Steering Angle Sensor Belt (Part No. MC-336) separately. DiscoveryParts Pro Tip: When mounting the sensor, locate the mount a little farther away than you might expect and use shims to bring the supplied bracket closer. If the belt tension is too loose, remove a shim or two to adjust. If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. LX-PA-10-AIMSP) instead. The String Pot can work with any diameter steering shaft.

Use This AiM Solo / Solo DL Replacement Mount Plate Kit To Mount Your AiM Solo into different vehicles easily. The AiM Solo Replacement Mount Plate includes all hardware and is a Genuine AiM Product. Use This AiM Solo / Solo DL Replacement Mount Plate Kit To Mount Your AiM Solo into different vehicles easily. The AiM Solo Replacement Mount Plate includes all hardware and is a Genuine AiM Product. The magnets on the back of the AiM Solo lap timer makes it easy to move from car to car, but once you're in the second car, you need an extra mounting plate for the magnets to stick to. This is the same steel mounting plate as included with the Solo and SoloDL. It has countersunk holes for mounting screws and tabs to keep the Solo from sliding off under high shock loads. Includes 2 countersunk 4x0.7mm socket-head screws (to fit the countersunk holes in the plate) and 2 3x0.5mm socket-head cap screws with washers (to fit the threaded inserts in the back of the Solo). AiM Solo Replacement Mount Bracket (Old Solo & Solo DL) Details: Manufacturer: AiM Manufacturer part number: DNKTPFSOL5 Manufacturer alternate part number: MC-574 Fits AiM Solo: Yes Fits AiM SoloDL: Yes Hardware included: Yes Fits AiM Solo2: No FIts AiM Solo2 DL: No Color: Black

AiM Solo2 Replacement Mount Bracket Use this AiM Solo2/Solo2 DL Replacement Mount Plate Kit to mount your AiM Solo2/Solo2 DL into different vehicles easily. The AiM Solo Replacement Mount Plate includes all hardware and is a genuine AiM product. AiM Solo2 Replacement Mount Bracket Details Manufacturer: AiM Manufacturer part number: X47KPFSOLO2R0 Fits AiM Solo2: Yes Fits AiM Solo2 DL: Yes Fits AiM Solo Original: No Fits AiM Solo DL Original: No Hardware included: Yes Color: Black The magnets on the back of the AiM Solo2 lap timer makes it easy to move from car to car, but once you're in the second car, you need an extra mounting plate for the magnets to stick to. This is the same steel mounting plate as included with the Solo2 and Solo2 DL. It has countersunk holes for mounting screws and tabs to keep the Solo from sliding off under high shock loads. Includes two (2) countersunk 4 x 0.7mm socket-head screws (to fit the countersunk holes in the plate) and two (2) 3 x 0.5mm socket-head cap screws with washers (to fit the threaded inserts in the back of the Solo2).

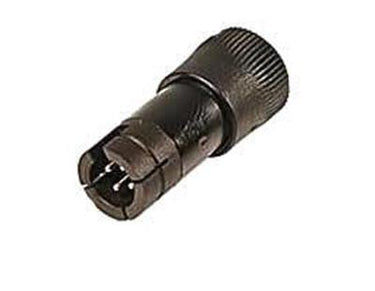

AiM 4 Pin 719 Female Connector AiM 4 Pin 719 Female Connector to replace or add to your AiM Data system. AiM 719 fittings are the most commonly used temperature and pressure sensor connector fittings, linear & string potentiometers and AiM extension cables. AiM 4 Pin 719 Female Connector Details: Manufacturer: AiM Manufacturer part number: 997647004 Pins: 4 Connection Type: Female

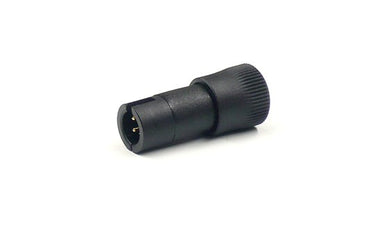

AiM 4 Pin 719 Male Connector AiM 4 Pin 719 Male Connector to replace or add to your AiM Data system. AiM 719 fittings are the most commonly used temperature and pressure sensor connector fittings, linear & string potentiometers and AiM extension cables. AiM 4 Pin 719 Male Connector Details: Manufacturer: AiM Manufacturer part number: 997677004 Pins: 4 Connection Type: Male

AiM K8/K15 Keypad  Button Inserts To order the specific insert you need, write the insert name and part number in the space provided above. These AiM keypad button inserts fit neatly into the buttons on your AiM K8 or K15 CAN keypad. They allow each button's backlight to illuminate a word or symbol that represents that button's function, putting easy keypad function recall at your fingertips. These are a required add-on to operate each button, and are sold individually. Choose among 72 different inserts to create different configurations with the same K8 or K15 keypad based on your needs. AiM K8/K15 Keypad Button Insert Details Manufacturer: AiM Sports Manufacturer part number: LVT60007 Quantity: sold individually Write insert name and part number in the space provided above AiM K8 CAN Keypad is sold separately.
