719 to 3-pin 712 Adapter Cable Only for Rotax Temp Sensor This patch cable has a 719 push-on connector at one end and a 3-pin 712 screw-in connector at the other. It is only used in karting applications, usually with the Rotax engine. This is the same cable included with the AiM Rotax Water Temperature Sensor Kit (Part No. AIM-MC-040). 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details:Manufacturer: AiMManufacturer part number: V02PCB15BTRManufacturer MC-041Kart Only: YesCable End 1: 719 push-onCable End 2: 3-pin 712 screw on. 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details: Manufacturer: AiM Manufacturer part number: V02PCB15BTR Manufacturer MC-041 Kart Only: Yes Cable End 1: 719 push-on Cable End 2: 3-pin 712 screw on

AiM MyChron 5 Battery Charger AiM MyChron 5 battery charger is used to power up your MyChron 5 rechargeable lithium batteries. Plug into a USB port and you're ready to start charging your MyChron5 battery! AiM MyChron 5 Battery Charger Details: Manufacturer: AiM Manufacturer part number: XSMCABATM5 Fits MyChron 5 and MyChron 5 2T: Yes Fits MyChron 4: No

AiM Solo 2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Moving your Solo2 DL from one car to another and need another harness for only power or both power and data input, this is your cable. If you are putting a Solo DL into an older vehicle and need a power supply cable, use this and use only the + and - wires and fold back the can inputs. The AiM V02569050 harness connects your Solo 2 DL to your ECU via CAN or RS232 wiring. One end has a 7-pin 712 (screw-in) connector to fit the Solo 2 DL, and the other has 6 non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit original AiM Solo DL. AiM Solo2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Details: Manufacturer: AiM Manufacturer part number: V02589050 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: No Pins on AiM Solo DL Side: 7 Pin Thread on connector Vehicle Chassis Ends: 6 Non terminated wires Vehicle Chassis Ends Break Out: Red=12VDC, Black=Ground, Blue=ECU RS232TX, Blue=ECU RS232 CAN-, Gray ECU RS232 RX, Gray CAN+ AiM Solo 2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Wiring Codes: Red: 9-15VDC Black: Ground Grey: CAN+ Blue: CAN- Black: ECU RS232 RX Blue: ECU RS232TX Both blue wires are the same color, but each wire has an identifier tag stating the connection type

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo 2 DL AiM Solo 2 DL to OBD-II Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBD-2) plug to fit the diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo 2 DL. OBD-II is also known as K-Line This is the same cable supplied with the original AiM Solo 2 DL for OBD-II. Does not fit the original Solo DL. AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo 2 DL Details: Manufacturer: AiM Manufacturer part number: V02589040 End 1: AiM 7 Pin 712 (thread on) End 2: OBD-2 (K-Line) Fits AiM Solo: No Fits AiM Solo DL: No Fits AiM Solo 2: No Fits AiM Solo 2 DL: Yes

AiM Solo 2 & Solo 2 DL Vehicle Power Wiring Harness Now you can power your AiM Solo 2 and Solo 2 DL for your entire endurance race without the need to charge the battery. The power cable that comes with the AiM Solo 2 in the package is set up for a cigarette lighter connection, but this is a hard wire connection for true race cars. This harness connects your AiM Solo 2 to your vehicle's fuse box wiring. One end has a 5-pin 712 (screw-in) connector to fit the Solo, and the other has 2 non-terminated wires (Power and Ground). AiM Solo 2 & Solo 2 DL Vehicle Power Wiring Harness Details: Manufacturer: Aim Manufacturer part number: V02589010 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: Yes Pins on AiM Solo Side: 5 Pin Thread on connector Vehicle Chassis Ends: 2 Non terminated wires Vehicle Chassis Ends Break Out: Power, and Ground If you are putting a Solo2 into an older vehicle and need a direct to battery/fuse box power supply cable, use this harness for an easy install.

MyChron5 & 4 2T Y-Cable, CHT & EGT - 5 meter One of the most common uses of this cable is to use an under the spark plug cylinder head temperature (CHT) and an exhaust gas temperature (EGT). We use this on a Yamaha KT100, LO206, Animal or clone motor to record both CHT & EGT as our two temperature inputs. AiM Y-Cable is designed for the MyChron5 2T kart dash.This Y-Cable is designed for the MyChron5 2T and MyChron4 2T kart dash. It has a 712 7-pin male connector for the dash, and two K-type (2-pin flat yellow) female connectors to accept K-type thermocouples. Manufacturer: AiM Kart Only: Yes MyChron5 2T: Yes MyChron4 2T: Yes Cable End 1: 7-pin 712 screw on (dash) Cable End 2: K-Type (2 pin flat yellow female - egt or CHT) Cable End 3: K-Type (2 pin flat yellow female - egt or CHT) DiscoveryParts part number: V025571105M

AiM MyChron4/5/5S 2T Y-Cable This AiM Sports Y-Cable is designed for the MyChron5 and MyChron 5S 2T kart dashes with two temperature control capabilities. One end of the AiM Y-Cable has one Binder 712 seven-pin male (screw-in) terminal to connect to your MyChron dash. The other end has one K-type (two-pin flat yellow) female connector to accept a K-type thermocouple, and one Binder 712 four-pin female (push-in) connector for a thermoresistor temperature sensor. AiM MYCHRON4/5/5S Y-CABLE DETAILS Manufacturer: AiM Sports Manufacturer part no: V02557110 Karting only: yes MyChron end: 7-pin Binder 712 male (screw-in) Sensor end 1: 4-pin Binder 712 female (push-in) Sensor end 2: K-Type 2 pin flat yellow female

AiM SmartyCam 3 Sport Glass Replacement AiM SmartyCam 3 Sport lens glass replacement. AiM SMARTYCAM 3 SPORT LENS REPLACMENT DETAILS: Manufacturer: AiM Manufacturer part number: XS3SKITV00

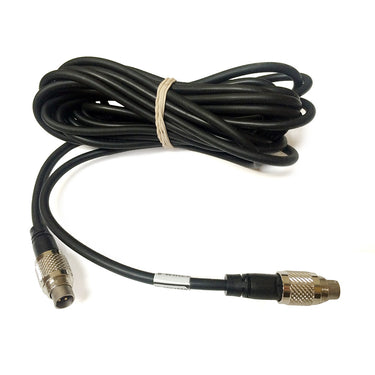

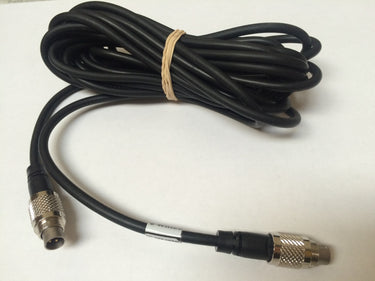

SmartyCam GP HD 2.2 to AiM Dash Connection Cable AiM SmartyCam GP HD 2.2 and SmartyCam HD Version 1 (Black Box Camera) replacement connection cable to connect to your Solo DL, MXS, MXG, MXP, MXL2, AiM Data Logger or SMC Bridge. This is a connection cable that has a 712 5 pin male connector on one end and another 712 5 pin male connector on the other end. SmartyCam GP HD 2.2 to AiM Dash Connection Cable Details: Manufacturer: AiM Manufacturer part number: V02554820 Alternate part number: AIM-MC-267 SmartyCam GP HD 2.2 and HD to AiM Dash or Data Hubs Included with all SmartyCam HD kits Length: 4 Meters (12ft) End 1: 5 Pin Male 712 Thread-On Connector End 2: 5 Pin Male 712 Thread-On Connector These CAN cables have male 5-pin 712 (screw-in) connectors at each end to connect the AiM SmartyCam GP HD 2.2, SmartyCam HD (version 1 black box looking camera) to your Solo DL. This cable also is used to connect your AiM SmartyCam HD (version 1) to your AiM logger or SMC Bridge. Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 2". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws. The original SmartyCam and SmartyCam HD Rev 2 require a CAN cable with a 7-pin connector. Although the connectors are correct, this cable can NOT be used to connect the SmartyCam HD GP bullet camera to the base recording unit, the internal wiring is different. How do I make sure I have an original SmartyCam H.D. Rev 1? First, your SmartyCam does not have any type of microphone. Second there is a 5 pin connection (for this control cable) and a 4 pin connection for GPS antenna. If you have a 4 pin and 7 pin, the you have a new Rev 2.

AiM Sports SmartyCam External Power Cable NOTE: Cables typically take 3 to 5 business days to ship. If you're not powering your AiM SmartyCam by connecting it to a Solo2 DL or an AiM Sports Dash, you'll need this external power cable in order to provide enough juice for your SmartyCam to record every session. Installation is quick and easy. Two meters (6.5 feet) in length.

AiM CAN 7-Pin to CAN/RS232 Wiring Harness for Solo DL Moving your original AiM Solo DL from one car to another and need another harness for only power or both power and data input, this is your cable. If you are putting a Solo DL into an older vehicle and need a power supply cable, use this and use only the + and - wires and fold back the can inputs. This harness connects your SoloDL to your ECU via CAN or RS232 wiring. One end has a 7-pin 712 (screw-in) connector to fit the SoloDL, and the other has 6 non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit the new AiM Solo2 DL. AiM CAN 7-Pin to CAN/RS232 Wiring Harness for Solo DL Details: Manufacturer: AiM Manufacturer part number: V02569080 Manufacturer alternate part number: MC-569 Fits Solo DL: Yes Fits Solo 2 DL: No Fits Solo Base Model: No Fits Solo 2 Base Model: No Length: 2 meters Pins on AiM Solo DL Side: 7 Pin Thread on connector Vehicle Chassis Ends: 6 Non terminated wires Vehicle Chassis Ends Break Out: CAN+, CAN-, RS232RX, RS232TX, Power, and Ground (and one unused) Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 1". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws. 1 - CAN+ (white)2 – GND (black)3 – 12v (red)4 - CAN- (blue)5 – K-Line (blue or orange)6 - N/A

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo DL AiM Solo DL to OBD-II Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBD-2) plug to fit the diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo DL. OBD-II is also known as K-Line This is the same cable supplied with the original AiM Solo DL for OBD-II. Does not fit the new Solo2 DL. AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo DL Details: Manufacturer: AiM Manufacturer part number: V02569010 AiM Alternate part number: MC-568 End 1: AiM 7 Pin 712 (thread on) End 2: OBD-2 (K-Line) Fits AiM Solo: No Fits AiM Solo DL: Yes Fits AiM Solo 2: No Fits AiM Solo2 DL: No Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 1". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws.

AiM Solo 2 DL RPM and Power Wiring Harness The AiM V02589020, called the AiM Solo 2 DL RPM Input Wire, is used to connect your AiM Solo 2 DL to an older generation (non-ECU) vehicle. On the bottom right of your Solo 2 DL there is an 8 pin connector that you can connect to the low voltage side of your coil. The peak can be anywhere from 150 to 400 V or from a square wave with a peak of 5 to 50 V. If you have a vehicle with no ECU or OBD-2 Port or a MSD ignition box, this is your easiest way to log RPM. By connecting the positive and negative wires, your Solo 2 DL unit will automatically top off the internal battery and power all down line appliances, such as SmartyCams and other powered devices. AiM Solo 2 DL RPM Input Wire Details: Manufacturer: AIM Manufacturer part number: V02589020 End 1: Male 712 8 Pin Screw-in End 2: Flying lead (open wires) 12 V Positive , Negative, and RPM input Length: 2 Meters AiM Solo 2 DL RPM Input Wire Uses: Solo 2 DL to older external coil engines Solo 2 DL to RPM tach lead Solo 2 DL to MSD ignition box

AiM Trackday Kit Short Cable for SmartyCam 3 The AiM Trackday kit mount offers a neat solution for connecting your Solo 2 DL & SmartyCam 3 without dealing with the 2 meter cable normally included with the Smartycam. If you need the mount for your Solo 2 and SmartyCam 3, that can be found here! AiM Trackday Kit Short Cable for SmartyCam 3 & Solo 2 DL Details: Manufacturer: AiM Technologies Manufacturer Part Number: V02554910 Cable Length: Approx 7" 712 5-pin male to 712 5-pin male

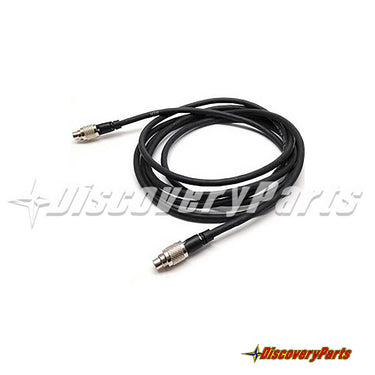

AiM 5 Pin 712 -712 CAN / GPS Extension Cable AiM GPS & CAN extension cable with the 5 pin male going to a 5 pin female connector. The 712 5 pin has 5 pins and a chrome threaded barrel (screw-in) connection. These extension cables are used to lengthen any CAN cable to provide a perfect installation. We use the AiM 712-715 patch cable to lengthen an AiM GPS08 antenna, Data Hub or any other CAN item. These are male on one side and female on the other side, so connecting them is series is allowed. This cable will fit between a SmartyCam GP process and lens, but will not work. You need the AiM SmartyCam GP LVDS Cable for this. AiM 5 Pin 712 -712 CAN / GPS Extension Cable Details: Manufacturer: AIM Manufacturer part number Patch cable, 1m 712 5-pin/m to 712, 5-pin/f CAN: V02552700 Manufacturer part number Patch cable, 2m 712 5-pin/m to 712, 5-pin/f CAN: V02552720 Manufacturer part number Patch cable, 3m 712 5-pin/m to 712, 5-pin/f CAN: V02552730 Manufacturer part number Patch cable, 4m 712 5-pin/m to 712, 5-pin/f CAN: V02552740 End 1: Male 712 5 Pin Screw-in End 2: Female 712 5 Pin Screw-in AiM 5 Pin 712 -712 CAN / GPS Extension Cable Common Uses CAN Extension GPS Extension Data Hub Extension AiM 5 Pin 712 -712 CAN / GPS Extension Cable Lengths Available: 1 Meter (39") 2 Meter (78") 3 Meter (118") 4 Meter (156")
