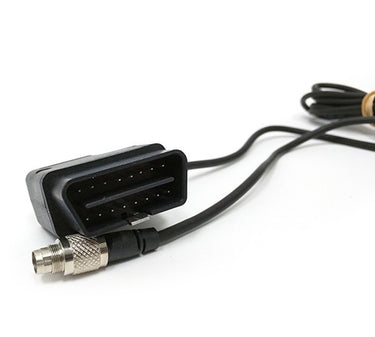

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo DL AiM Solo DL to OBD-II Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBD-2) plug to fit the diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo DL. OBD-II is also known as K-Line This is the same cable supplied with the original AiM Solo DL for OBD-II. Does not fit the new Solo2 DL. AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo DL Details: Manufacturer: AiM Manufacturer part number: V02569010 AiM Alternate part number: MC-568 End 1: AiM 7 Pin 712 (thread on) End 2: OBD-2 (K-Line) Fits AiM Solo: No Fits AiM Solo DL: Yes Fits AiM Solo 2: No Fits AiM Solo2 DL: No Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 1". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws.

AiM Solo2 DL RPM and Power Wiring Harness The AiM V02589020, called the AiM Solo2 DL RPM Input Wire, is used to connect your AiM Solo2 DL to any vehicle that does not have an ECU (such as older cars). On the bottom right of your Solo2 DL there is an eight-pin connector that you can connect to the low voltage side of your ignition coil. The peak can be anywhere from +150 to +400 V or from a square wave with a peak of +5 to +50 V. If you have a vehicle with an MSD Ignition box, this is your easiest way to log RPM. By connecting the positive and negative wires, your Solo2 DL unit will automatically top off the internal battery and power all down line appliances, such as a SmartyCam or other powered device. AiM Solo2 DL RPM Input Wire Details Manufacturer: AiM Sports Manufacturer part number: V02589020 End 1: male 712 8-pin screw-on End 2: flying leads (open wires) 12 VDC positive , negative, and RPM input Length: 2 meters (6.6 feet) AiM Solo2 DL RPM Input Wire Uses Solo2 DL to older external ignition coil engines Solo2 DL to RPM tach lead Solo2 DL to MSD Ignition box

AiM Solo2 DL CAN/RS232 Wiring Harness If you're moving your AiM Solo2 DL from one car to another and need a harness for power and data input, this is your cable. If you are putting a Solo2 DL into an older vehicle and need a power supply cable, use this and use only the "+" and "-" wires (fold back the CAN inputs). The AiM V02569050 harness connects your Solo2 DL to your ECU via your vehicle's CAN or RS232 bus wiring. One end has a 7-pin 712 (screw-in) connector to fit the Solo2 DL, and the other has six non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit the original AiM Solo or Solo DL. AiM Solo2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Details Manufacturer: AiM Sports Manufacturer part number: V02589050 Fits Solo DL: No Fits Solo2 DL: Yes Fits Solo Base Model: No Fits Solo2 Base Model: No Pins on AiM Solo2 DL Side: 7 Pin Thread on connector Vehicle Chassis Ends: six non-terminated wires Chassis End Wiring Break Out: Red=+12 VDC, Black=Ground, Blue=ECU RS232TX, Blue=ECU RS232 CAN-, Gray ECU RS232 RX, Gray CAN+ AiM Solo2 DL CAN/RS232 Wiring Harness Wiring Code Red: +9 to +15 VDC Black: Ground Grey: CAN+ Blue1: CAN- Gray: ECU RS232 RX Blue1: ECU RS232TX 1 Note: both blue wires are the same color, but each wire has an identifier tag stating the connection type.

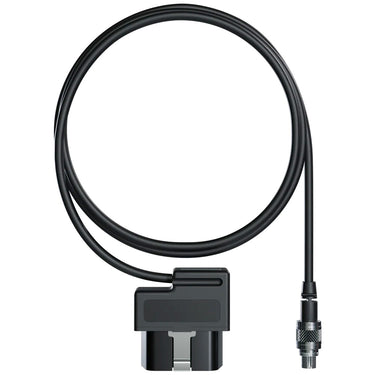

AiM CAN 7-Pin to OBD-II (K-Line Connector) Cable for Solo2 DL AiM Solo2 DL to OBDII Port Connection Cable On Your Car For Easy Addition of RPM and other vehicle data. One end has the K-Line (OBDII) plug to fit the diagnostic port, and the other end has a seven-pin 712 (screw-in) connector for the Solo2 DL. OBDII is also known as K-Line. This is the same cable supplied with the original AiM Solo2 DL for OBDII connection. Does not fit the original Solo DL. AiM CAN 7-Pin to OBDII Cable for Solo2 DL Details Manufacturer: AiM Manufacturer part number: V02589040 End 1: AiM 7 Pin 712 (thread on) End 2: OBDII (K-Line) Fits AiM Solo: No Fits AiM Solo DL: No Fits AiM Solo2: No Fits AiM Solo2 DL: Yes

AiM Solo2 & Solo2 DL Vehicle Power Wiring Harness Now you can power your AiM Solo2 and Solo2 DL for your entire endurance race without the need to charge the battery. The power cable that comes with the AiM Solo2 in the package is set up for a cigarette lighter connection, but this is a hard wire connection for true race cars. This harness connects your AiM Solo2 to your vehicle's fuse box wiring. One end has a 5-pin 712 (screw-in) connector to fit the Solo, and the other has two non-terminated wires (Power and Ground). AiM Solo2 & Solo2 DL Vehicle Power Wiring Harness Details Manufacturer: AiM Sports Manufacturer part number: V02589010 Fits Solo DL: No Fits Solo2 DL: Yes Fits Solo Base Model: No Fits Solo2 Base Model: Yes Pins on AiM Solo Side: 5-pin thread-on connector Vehicle Chassis Ends: two non-terminated wires for power and ground If you are putting an AiM Solo2 or Solo2 DL into an older vehicle and need a direct to battery/fuse box power supply cable, use this harness for a neat, easy installation.

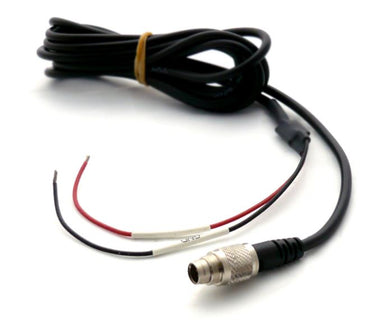

AiM Sports SmartyCam External Power Cable If you're not powering your AiM SmartyCam by connecting it to a Solo2 DL or an AiM Sports Dash, you'll need this external power cable in order to provide enough juice for your SmartyCam to record every session. Installation is quick and easy. Two meters (6.6 feet) in length. Note: this cables typically takes 3 to 5 business days to ship.

AiM Sports CHT Thermocouple Sensors Add the appropriate AiM Sports Cylinder Head Temperature sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! AiM devices can measure the cylinder head temperature using a sensor – thermocouple – placed between the spark plug and the cylinder head. All AiM thermocouples are K-type sensors. Install this CHT thermocouple to monitor temperatures ranging from 0º to 572ºF (up to 300ºC). Choose your sensor diameter to fit either 14mm, 12mm, or 10mm spark plugs. The sensing ring is 0.7 inch (18mm) thick. TEMPERATURE SENSOR CHOICES This thermocouple is available to fit three different spark plug diameters, various cable lengths, and two different end connectors as follows: CHT14B: 14mm diam, 1.5m cable length, Binder 712 3-pin male   CHT14M: 14mm diam, 0.4m cable length, Mignon 2-pin male CHT12B: 12mm diam, 1.4m cable length, Binder 712 3-pin male CHT12M: 12mm diam, 0.4m cable length, Mignon 2-pin male CHT10B: 10mm diam, 1.4m cable length, Binder 712 3-pin male CHT10M: 10mm diam, 0.4m cable length, Mignon 2-pin male

AiM SmartyCam GP HD Replacement Lens 67º AiM AiM SmartyCam GP HD Replacement Lens with a 67º field-of-view. A 67º FOV is typically used inside production cars, GT, and sports cars. This kit includes a new genuine AiM 67º lens and special weather- and harmonic vibration-resistant O-ring. AiM SmartyCam GP HD Replacement Lens 67 Details Manufacturer: AiM Sports Manufacturer part number: X96KVBGPHD6 Degree of field-of-view: 67º O-ring included: Yes

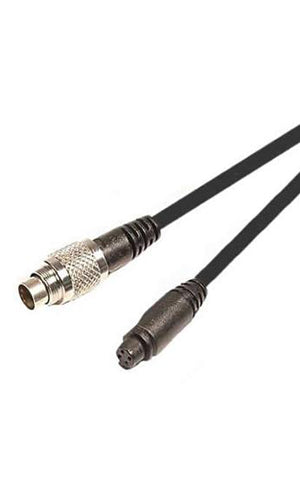

AiM Sports 712 to 719 Four-Pin Patch Cables NOTE: Cables typically take 3 to 5 business days to ship. Add the appropriate AiM Sports 712 to 719 4-Pin Extension Cables to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! The AiM Sports 712 to 719 4-Pin Patch Cables have a female 4-pin 719 (plastic) connector at one end and a male 4-pin 712 (threaded) connector at the other to connect most analog automotive sensors to the MyChron3, XG-Log Auto Dash, AiM EVO4, or AiM EVO4s Data Logger. Available in 0.5 thru 4 Meter lengths. CONNECTS TO: MyChron3 Data Hub XG-Log Auto Dash EVO4 Logger EVO4s Logger PART NUMBERS: V02PCB05BTXG cable length: 0.5m (1.6 ft) V02PCB10BTXG cable length: 1 meter (3.3 ft) V02PCB15BTXG cable length: 1.5 meter (4.9 ft) V02PCB20BTXG cable length: 2 meters (6.6 ft) V02PCB25BTXG cable length: 2.5 meters (8.2 ft) V02PCB30BTXG cable length: 3 meters (9.8 ft) V02PCB35BTXG cable length: 3.5 meters (11.5 ft) V02PCB40BTXG cable length: 4 meters (13.1 ft)

AiM Sports SmartyCam3 Corsa Roll Bar Mount Kit This adjustable mount holds your AiM SmartyCam, SmartyCam HD, or SmartyCam3 Corsa securely to your car's roll bar or harness bar. Allows you to quickly, securely mount your camera and keeping it pointed in the right direction during track days or races. Two pivoting ball joints allow a wide range of adjustment and cast aluminum base mounts incredibly securely. AiM SPORTS SMARTYCAM ROLL BAR MOUNT INCLUDES: Manufacturer: AiM Sports Manufacturer part no.: X90KSSMC0 Cast aluminum lower mount Jubilee clamp 60mm single clamp arm Ball head with 1/4-20 threaded stud Ridged washer

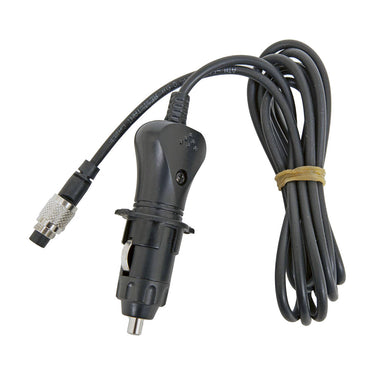

AiM 5-Pin 712 to 12 VDC (Lighter Plug) Cable for Solo2/Solo2 DL Power Your AiM Solo2 or Solo2 DL with this 12V Power Cable Using Your Car Cigarette Lighter. Easy to install by threading into the five-pin bottom port on your AiM Solo2 or Solo2 DL to provide power throughout your longest races and weekends. AiM 5-Pin 712 to 12 VDC Lighter Plug Cable for Solo2/Solo2 DL Details Manufacturer: AiM Sports Manufacturer part number: V02569360 Manufacturer alternate part number: MC-600 Connector end 1: Cigarette Lighter Connector end 2: 5-pin thread-on 712 connector Fits AiM Solo: No Fits AiM Solo DL: No Fits AiM Solo2: Yes Fits AiM Solo2 DL: Yes This same DC power cable is supplied with the AiM Solo2. It can also be used to power the Solo2 DL if it's not already getting power through its vehicle hookup (e.g., if it's temporarily moved to a different vehicle). The 5-pin 712 (screw-in) connector fits the port on the bottom of the Solo2 or the left 5-pin port on the Solo2 DL. The other end of the cable has a standard cigarette lighter plug for quick connection to your vehicle's standard 12V power port. Note: For Solo2 or Solo2 DL, not for original Solo/Solo DL. The 5-pin connector is not designed to work with any other AiM devices.

AiM Roll Bar Mount for AiM Solo, Solo2, Solo DL and Solo2 DL Rock solid roll bar mounting of an AiM Solo, Solo2, Solo DL or Solo2 DL is super easy and secure with the Discovery Parts Ram Mount Roll Bar Mount Kit. We have found all the little pieces to make your AiM Solo mounting to your roll-bar super easy. We'll help make sure you AiM Solo stays secure and in view no matter how many rumble strips you jump. AiM ROLL BAR MOUNT DETAILS Manufacturer: AiM Sports Manufacturer part number: X46KSTG00 Fits AiM Solo2: Yes Fits AiM Solo2 DL: Yes Fits older AiM Solo: Yes Fits older AiM Solo DL: Yes Includes mounting plate: No Fits 1" to 2" roll bar outside diameter

AiM SmartyCam HD Suction Mount This adjustable mount holds your AiM SmartyCam HD Rev 2.1 securely to your windshield or any other smooth, flat surface. Allows you to quickly mount your camera and keeping it pointed in the right direction during track days and other racing events. Two pivoting ball joints allow a wide range of adjustment and the 3 1/2" diameter, lever-actuated suction cup base mounts incredibly securely. KIT INCLUDES: Suction cup Clamp base with ball (screws provided) 60mm single clamp arm Ball head with 1/4-20 threaded stud Ridged washer

719 to 3-pin 712 Adapter Cable Only for Rotax Temp Sensor This patch cable has a 719 push-on connector at one end and a 3-pin 712 screw-in connector at the other. It is only used in karting applications, usually with the Rotax engine. This is the same cable included with the AiM Rotax Water Temperature Sensor Kit (Part No. AIM-MC-040). 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details:Manufacturer: AiMManufacturer part number: V02PCB15BTRManufacturer MC-041Kart Only: YesCable End 1: 719 push-onCable End 2: 3-pin 712 screw on. 719 to 3-pin 712 Adapter Cable for Rotax Temp Sensor Details: Manufacturer: AiM Manufacturer part number: V02PCB15BTR Manufacturer MC-041 Kart Only: Yes Cable End 1: 719 push-on Cable End 2: 3-pin 712 screw on

AiM Solo2/Solo2 DL RAM Windshield Suction Mount Among the great advantages to the AiM Solo family of GPS lap timers is that, unlike other timers, you don't have to connect any wires to use it. That makes it ideal for use in daily-driven track-day cars (or for moving from one car to another). The RAM Windshield Mount lets you to mount your AiM Solo2 or Solo2 DL (as well as older AiM Solo versions) to your windshield quickly and securely. Installation is as easy as pushing a lever; removal is as easy as lifting the lever. Two pivoting ball joints allow a wide range of adjustment. Two 6mm screw holes match the holes in the standard mounting plate included with your AiM Solo2 or Solo2 DL. There's no better, more convenient way to mount your AiM Solo2 or Solo2 DL.
